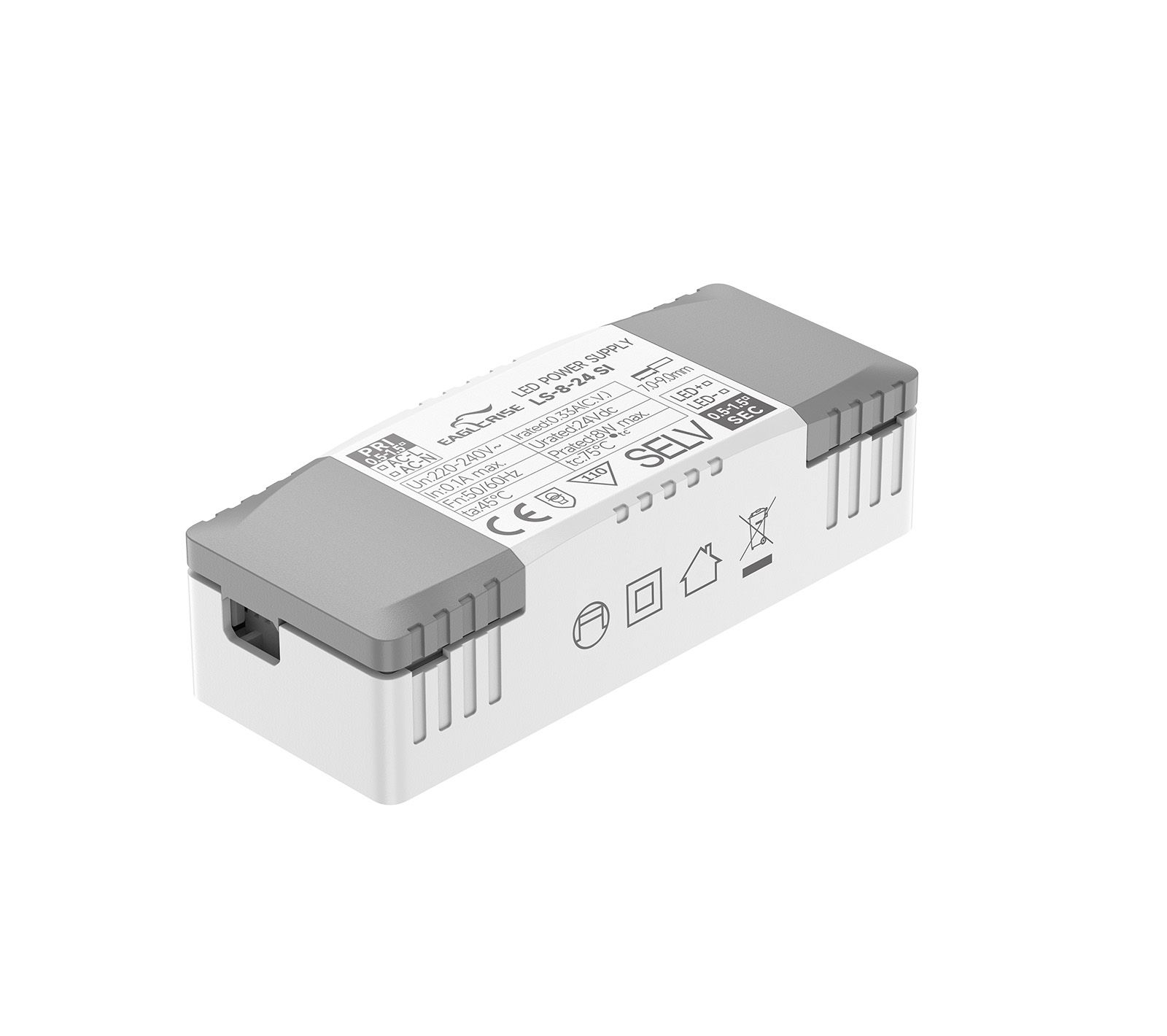

Product Image
2D Line Drawing
Product Image
2D Line Drawing
8W | 12/24V

LS-8-XX SI

Product Description:

· For luminaries of protection Class II, SELV, Independent
· Input Voltage: 220-240VAC
· Protections: SCP/OLP/OVP/OTP
· Power Factor: 0.6C
· Efficiency: 80%
· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-8-12 SI8W220-240VAC0-0.67A12V80%0.692*36*25mm
LS-8-24 SI8W220-240VAC0-0.33A24V80%0.692*36*25mm



LS-8-XX SI spec REV B
