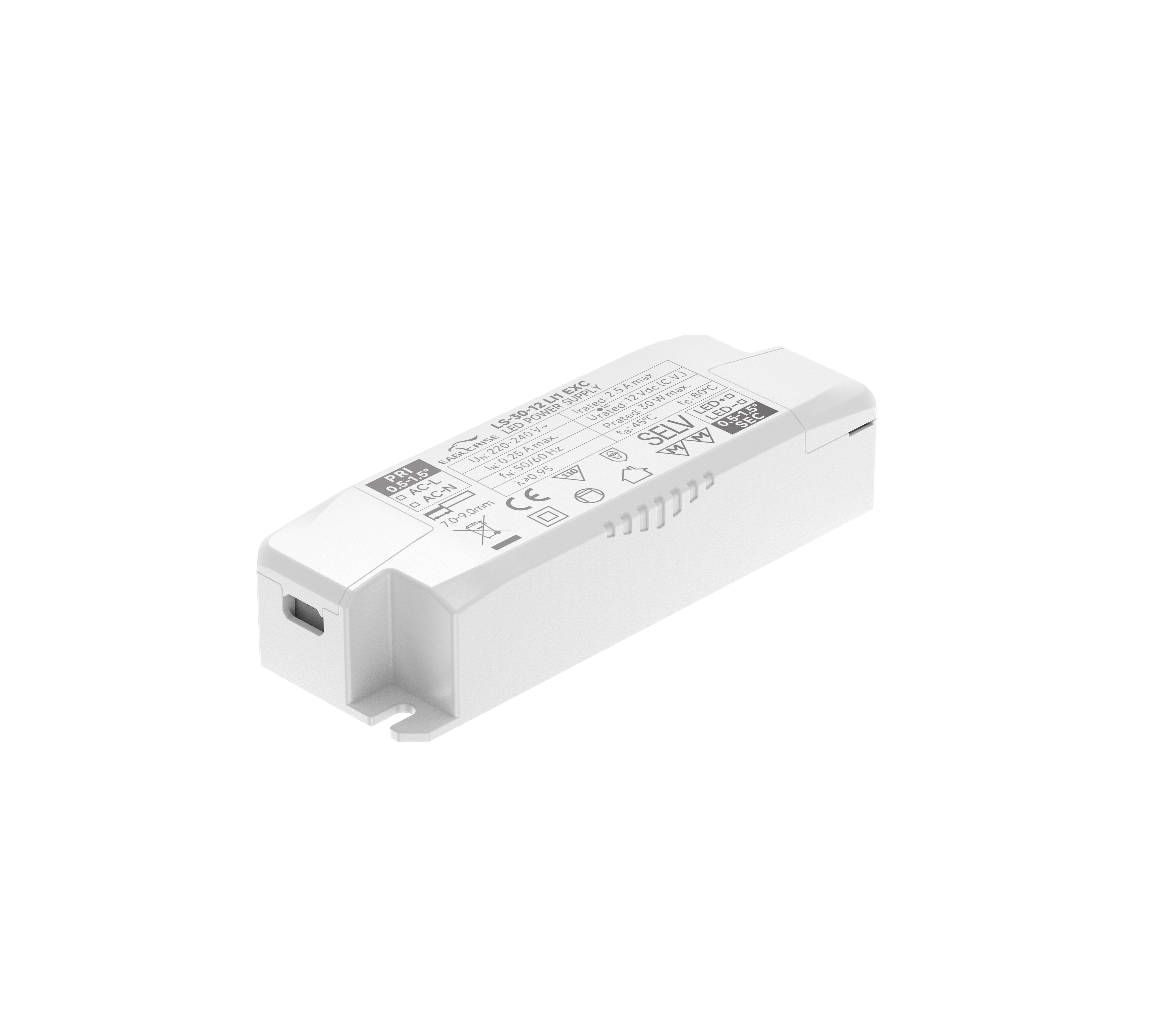

Product Image

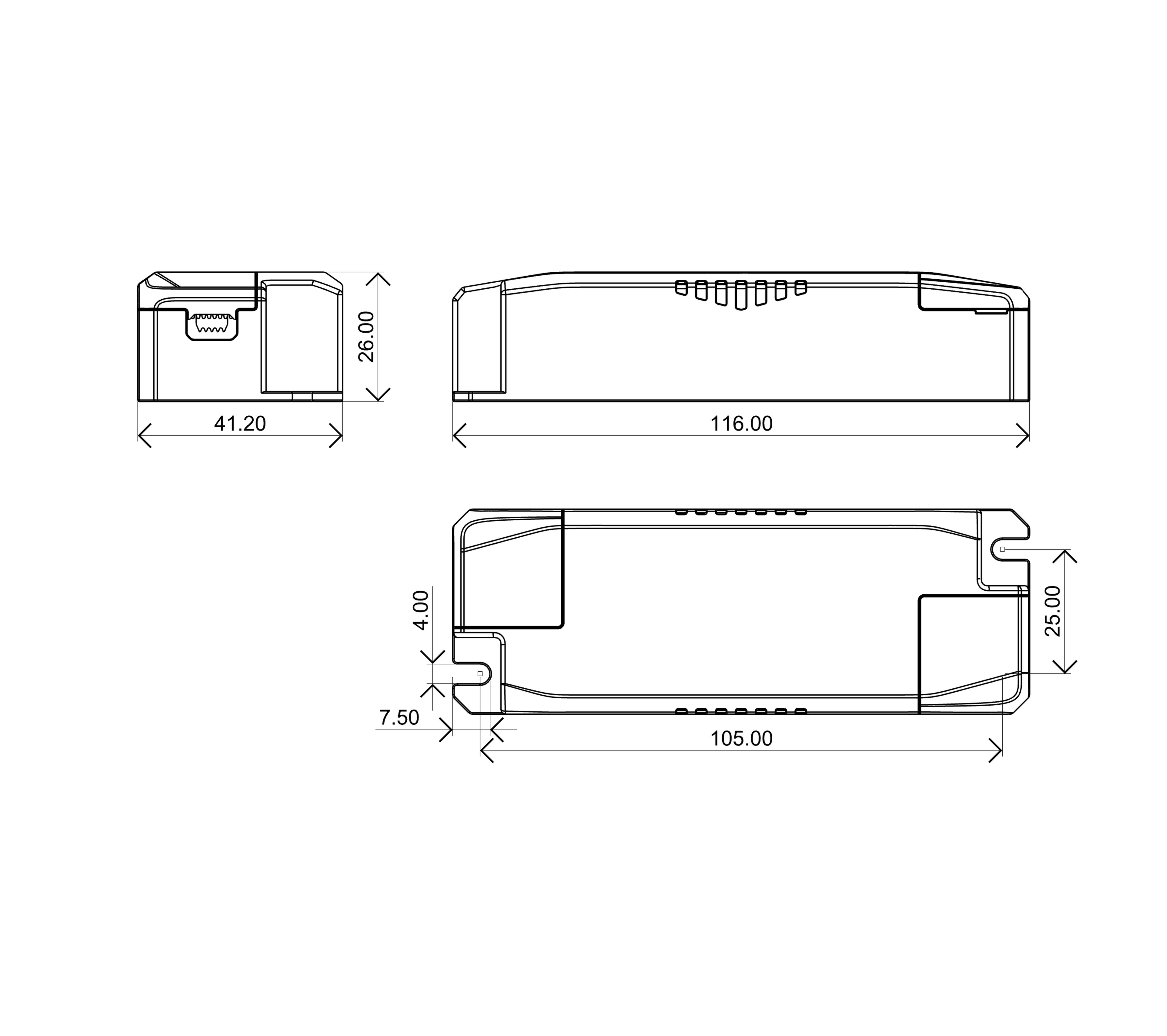

2D Line Drawing
Product Image
2D Line Drawing
30W | 12/24V

LS-30-XX LI EXC

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Independent

· Input Voltage 220-240 VAC

· Protection: SCP/ OLP/ OVP/ OTP

· Efficiency>93%

· Power Factor>0.95

· 5 years warranty

· Ta, Tc: 45°C/ 85°C

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-30-12 LI EXC30W220-240VAC0-2.5A12V87%0.95136*38*28mm
LS-30-24 LI EXC30W220-240VAC0-1.25A24V87%0.95136*38*28mm


LS-30-XX LI EXC spec REV A
