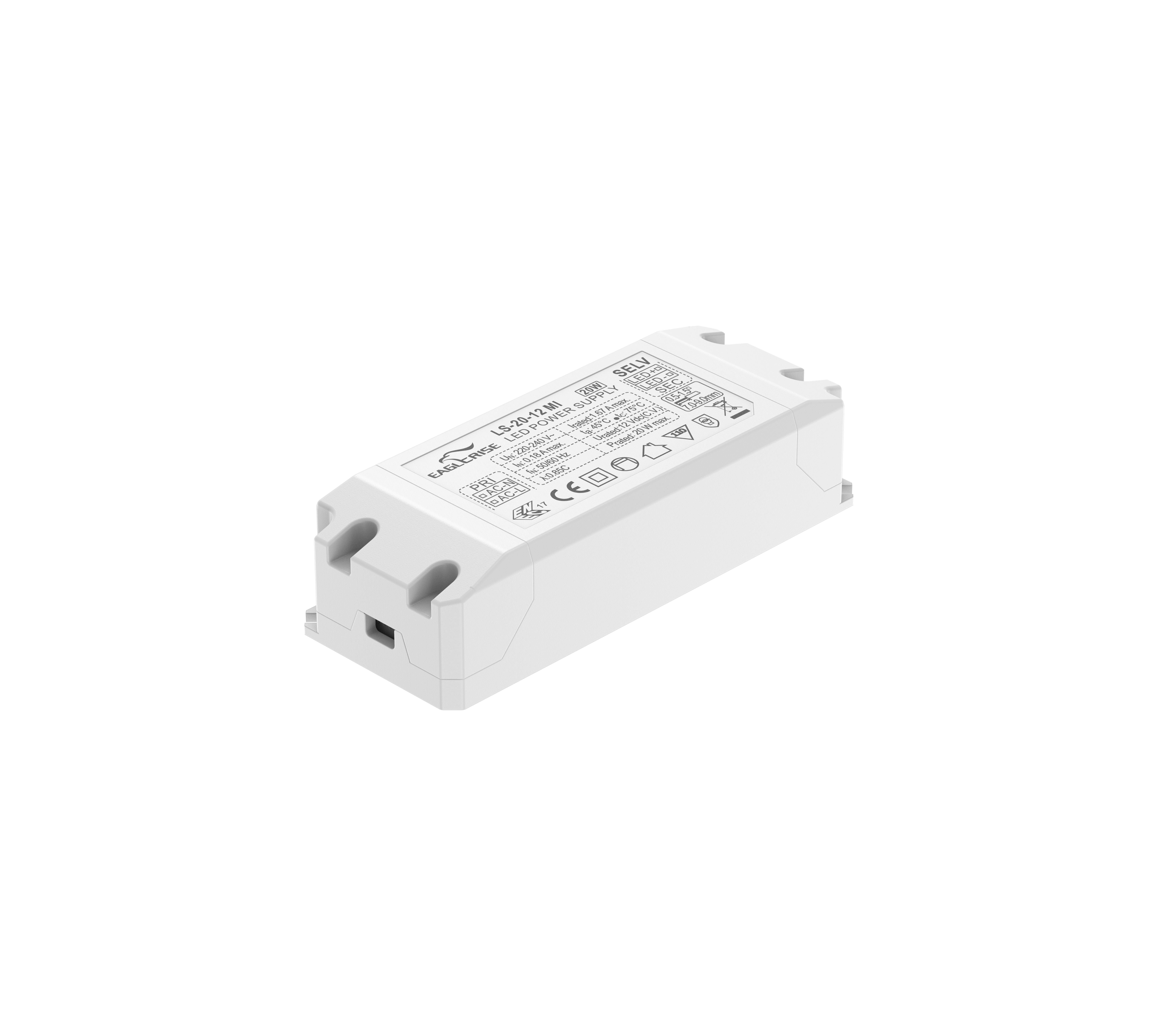

Product Image

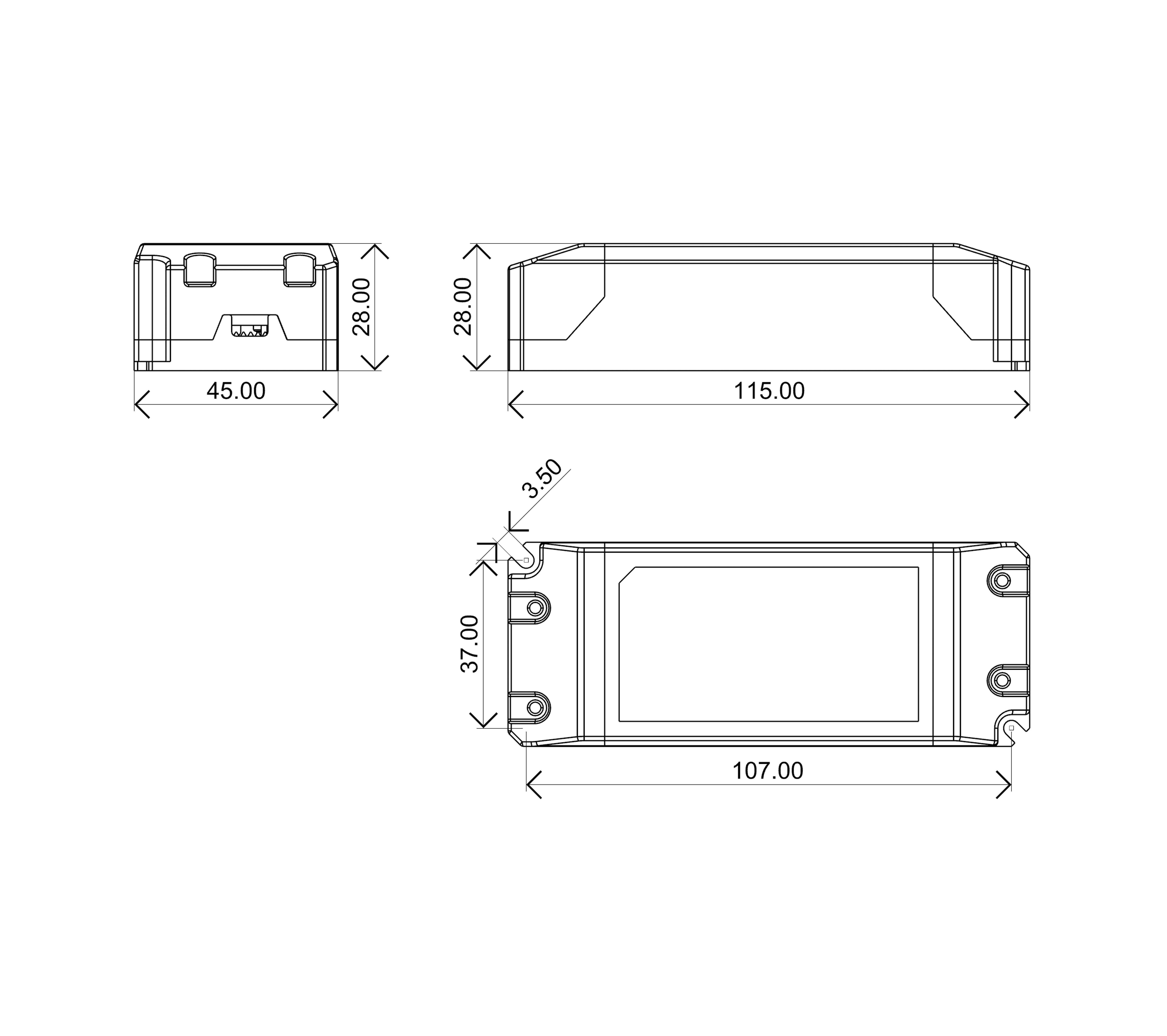

2D Line Drawing
Product Image
2D Line Drawing
20W | 12/24V

LS-20-XX MI

Product Description:

· Class II，SELV，independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor 0.85C

· Efficiency ≥80%

· 5 years warranty


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-20-12 MI20W220-240VAC0-1.67A12V80%0.85115*45*28mm
LS-20-24 MI20W220-240VA0-0.83A24V80%0.85115*45*28mm



LS-20-XX MI spec REV A
