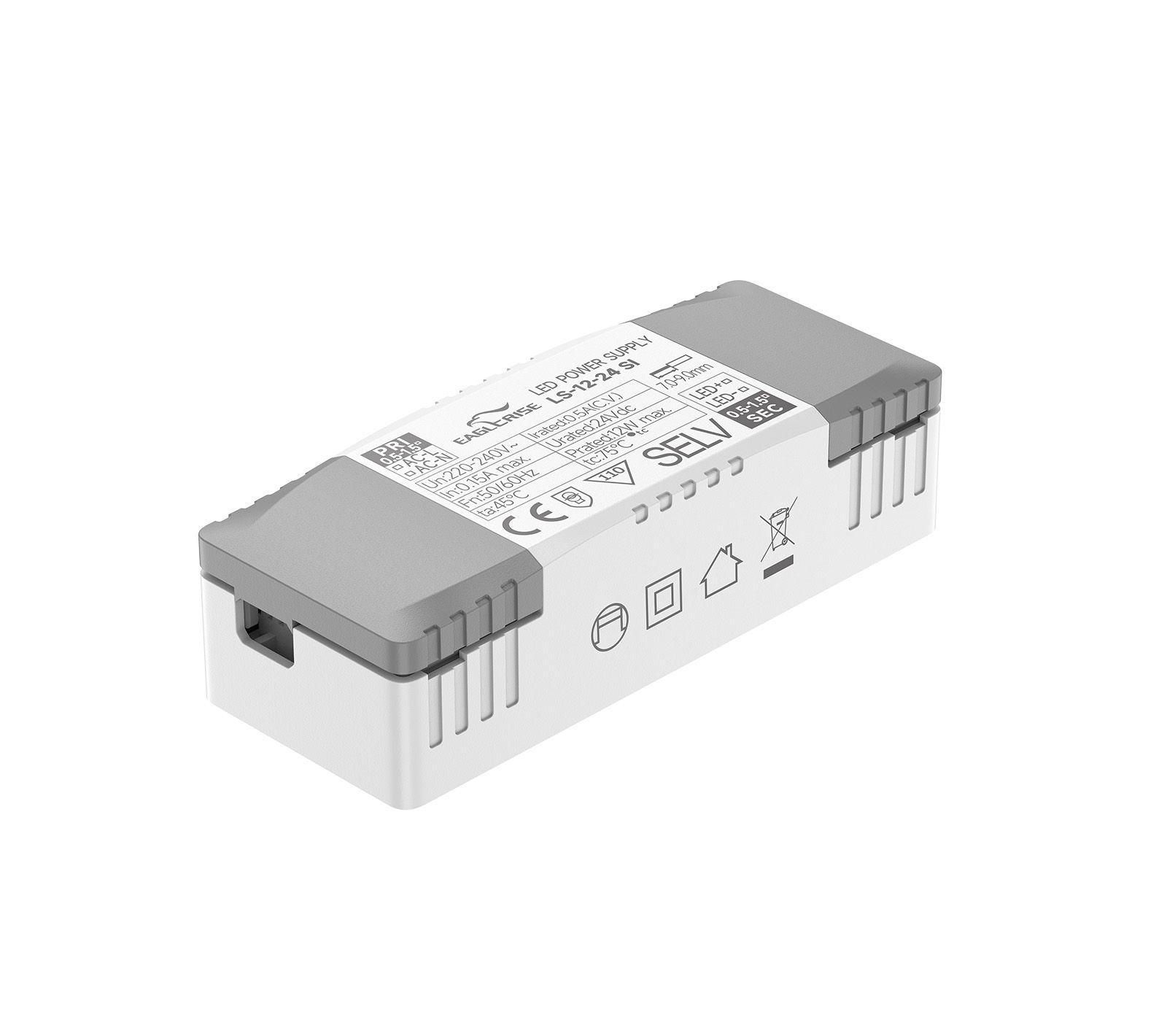

Product Image

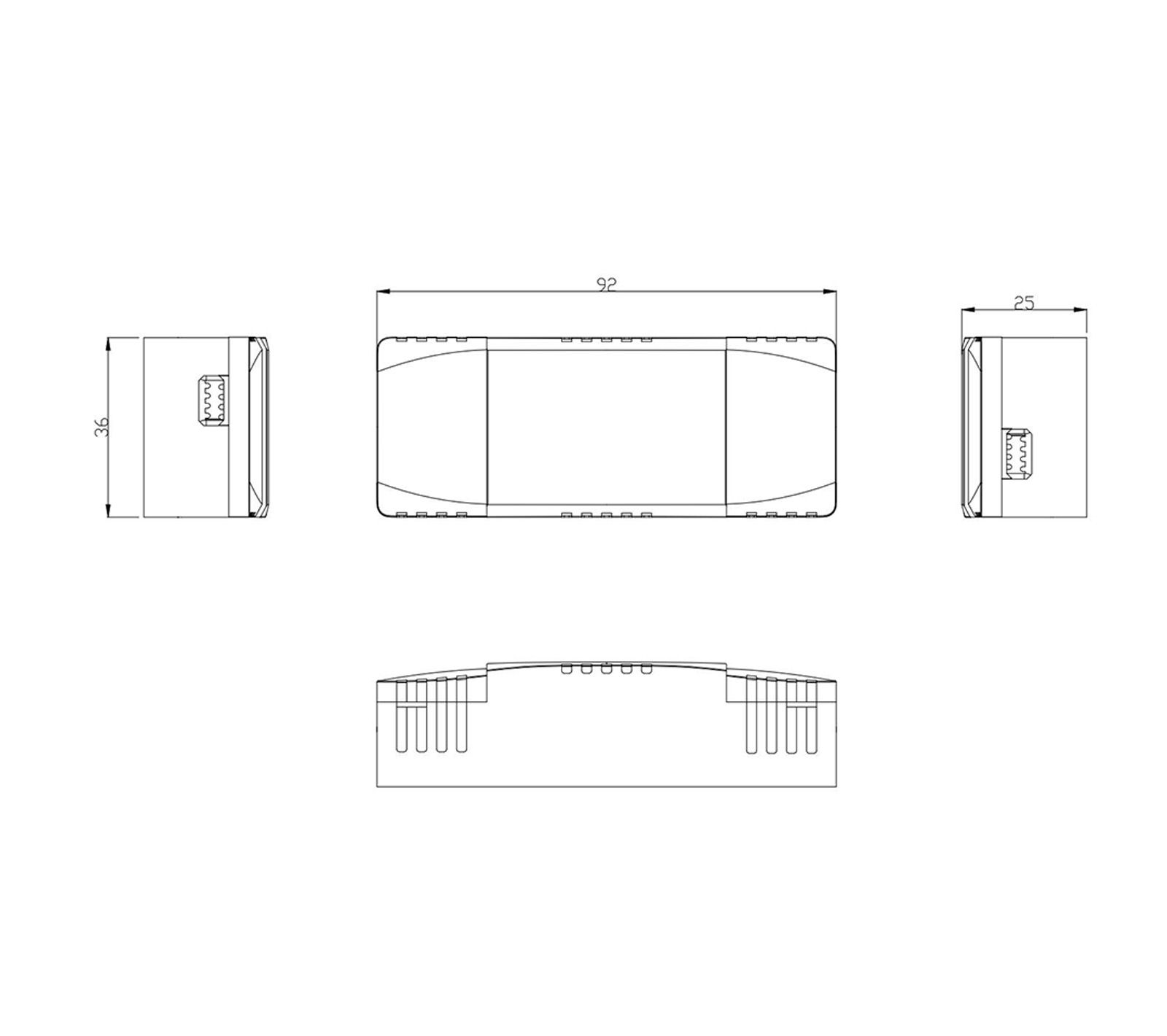

2D Line Drawing
Product Image
2D Line Drawing
12W | 12/24V

LS-12-XX SI

Product Description:

· For luminaries of protection Class II, SELV, Independent
· Input Voltage: 220-240VAC
· Protections: SCP/OLP/OVP/OTP
· Power Factor: 0.6C
· Efficiency: 84%
· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-12-12 SI12W220-240VAC0-1A12V84%0.692*36*25mm
LS-12-24 SI12W220-240VAC0-0.5A24V84%0.692*36*25mm


LS-12-XX SI spec REV B
