Home / Products / CV Drivers / ON/OFF / ON/OFF / LS-12-XX MI

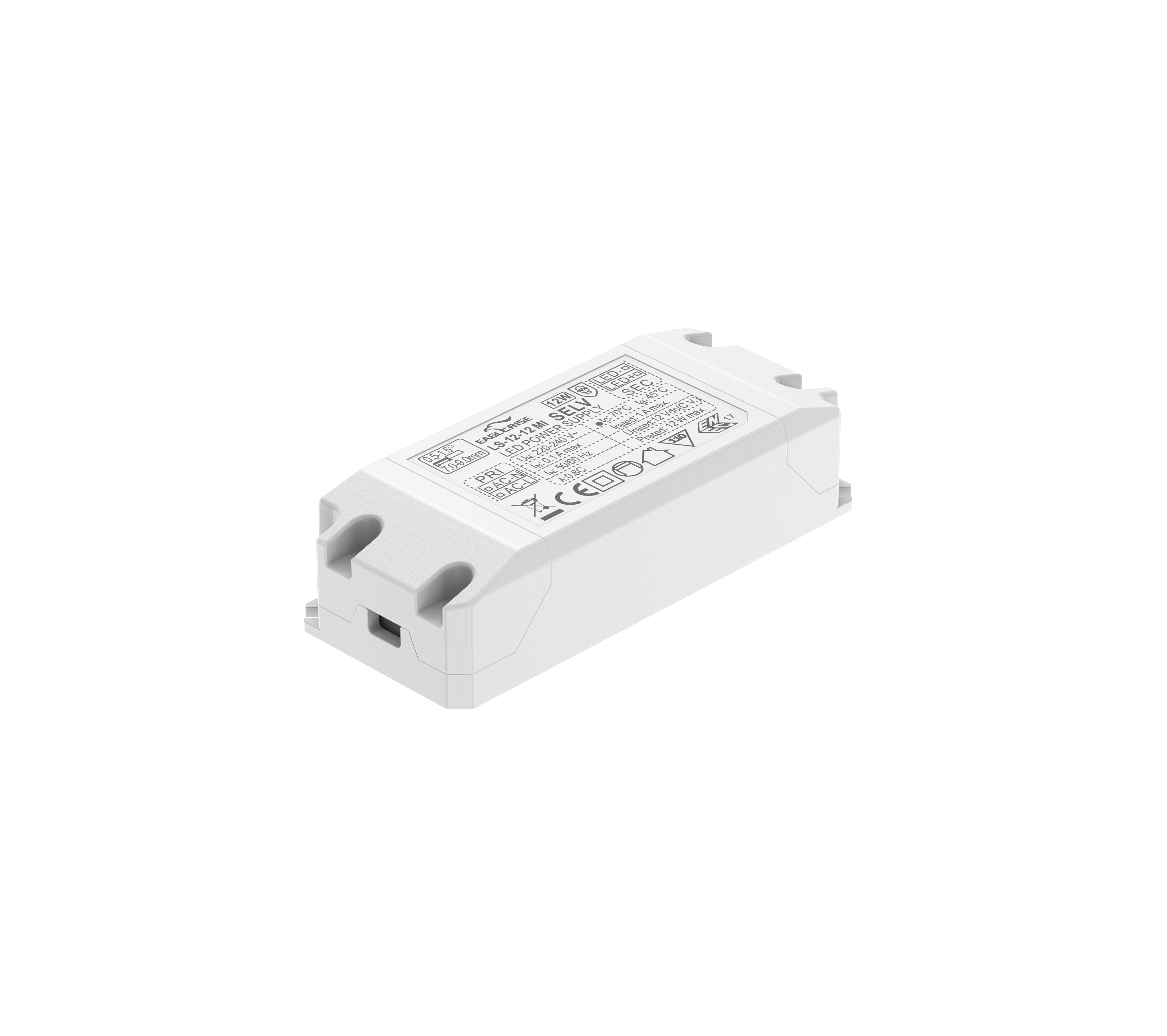

Product Image

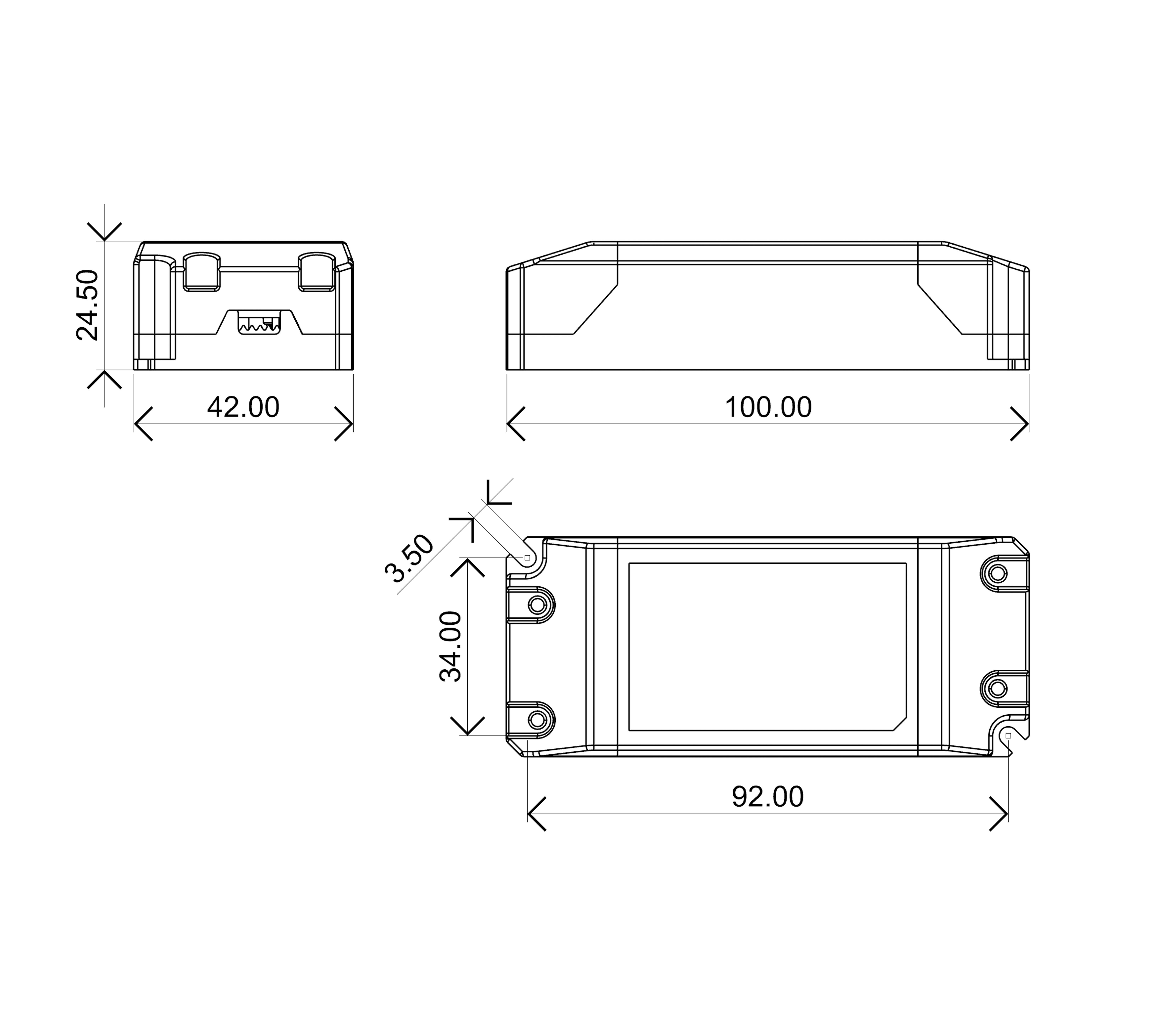

2D Line Drawing
Product Image
2D Line Drawing
12W | 12/24V

LS-12-XX MI

Product Description:

· Class II，SELV，independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor 0.8C

· Efficiency 83%

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-12-12 MI12W220-240VAC0-1A12V83%0.85100*42*24.5mm
LS-12-24 MI12W220-240VAC0-0.5A24V83%0.85100*42*24.5mm



LS-12-XX MI spec REV A
Download All Files
Related Products
LS-20-XX MI
20W | 12/24V
LS-20-XX MI
NFC APP
Click the link below to download Eaglerise NFC APP.
APP Download
