Home / Products / Mini Drivers / ON/OFF / FLS-42-1050 LD1 ADV

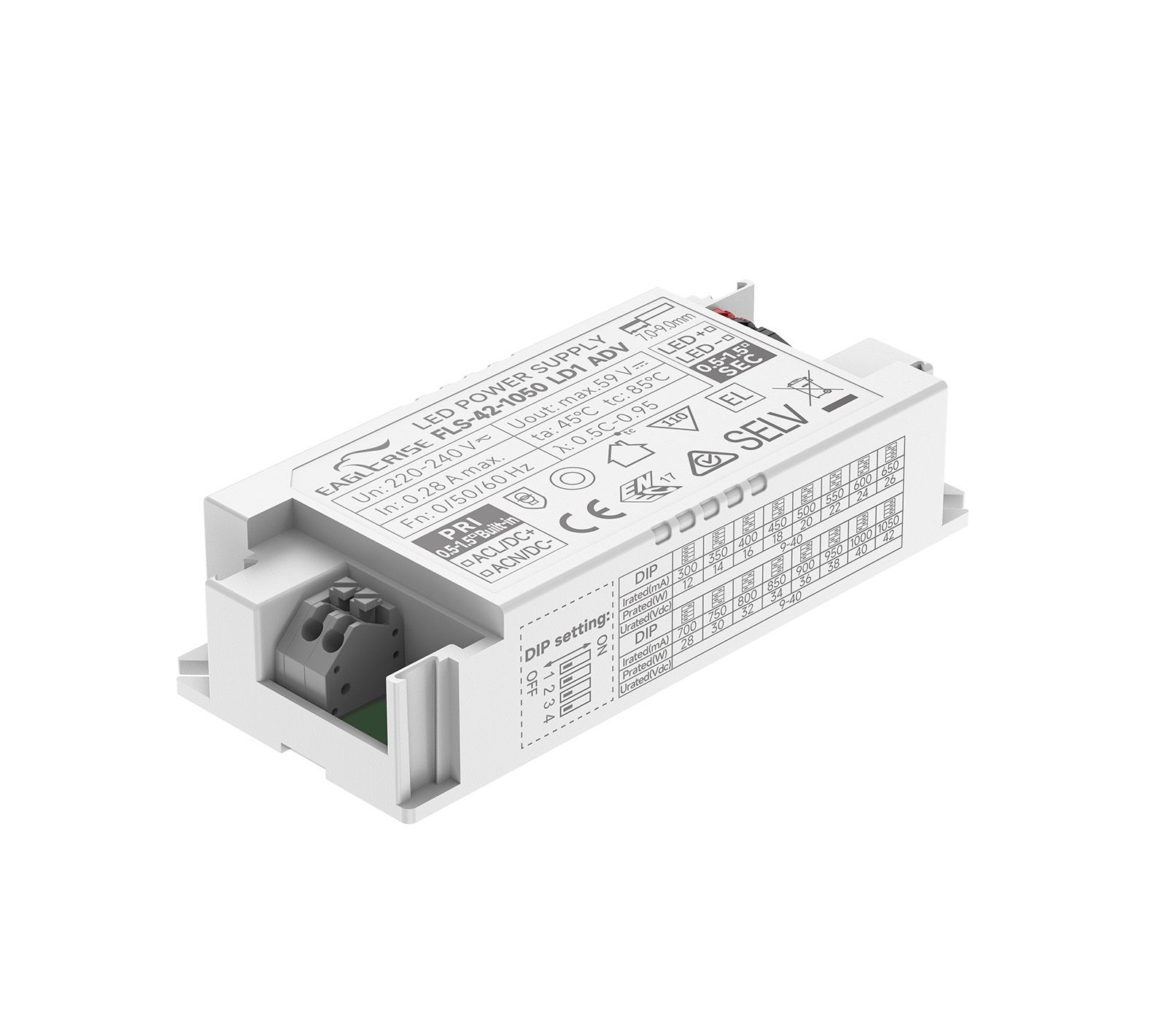

Product Image

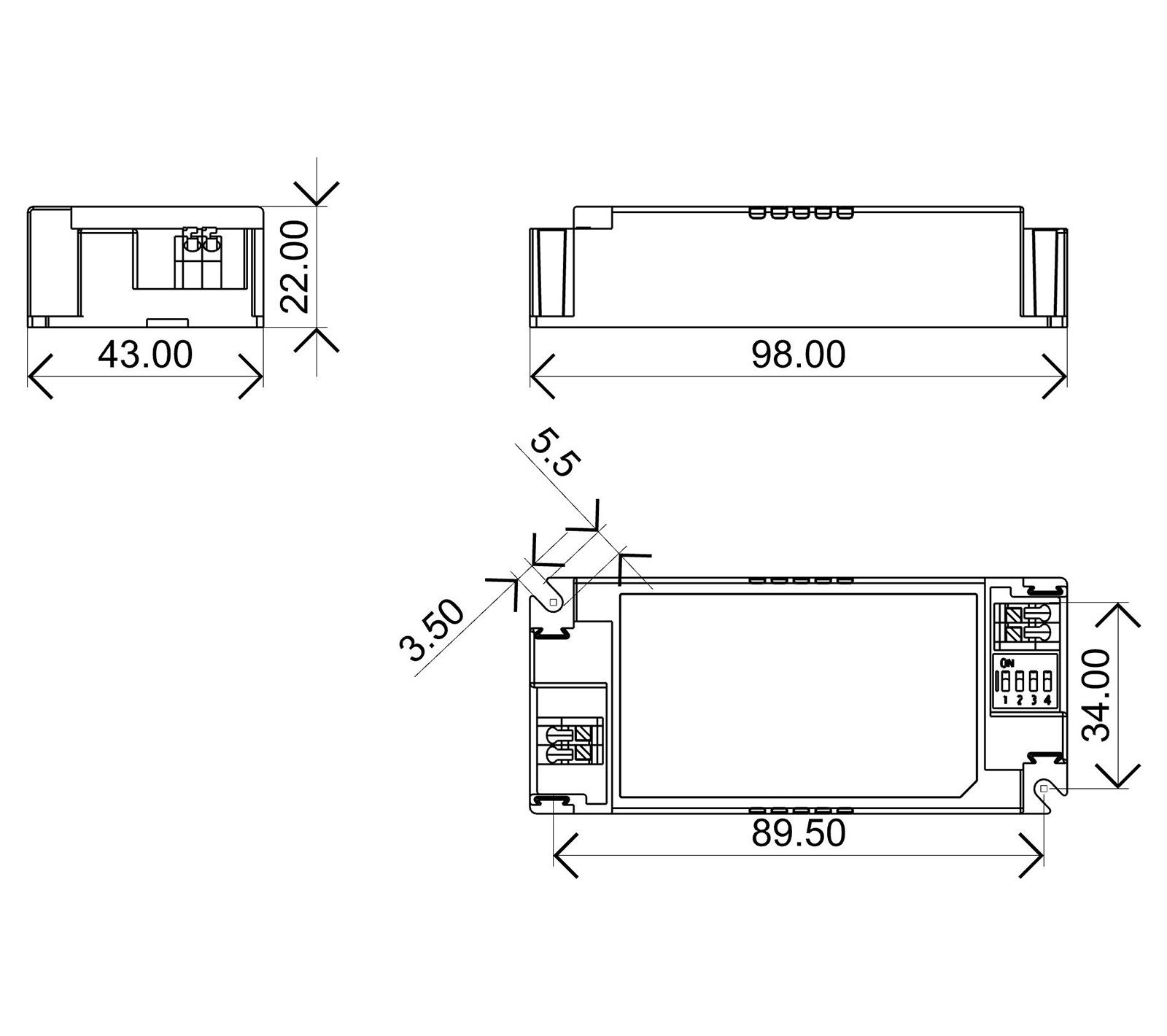

2D Line Drawing
Product Image
2D Line Drawing
42W | 300-1050mA

FLS-42-1050 LD1 ADV

Product Description:

· Class II，SELV，built-in/independent
· Input Voltage： 220-240VAC
· Protections：SCP/OLP/OVP/OTP
· Power Factor：0.95
· Efficiency：89%
· Adjustable Output Current with dip-switch
· 5 years warranty
· IP20

Click to Expand
Inquire Now
Models
Datasheet
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-42-1050 LD1 ADV42W220-240VAC300-1050mA9-40V89%0.9598*43*22mm
FLS-42-1050 LD1 ADV spec REV D
Related Products
FLS-42-1050 LD PRO
42W | 150-1050mA
FLS-42-1050 LD PRO
