Home / Products / Mini Drivers / ON/OFF / FLS-42-1050 LD PRO
Product Image

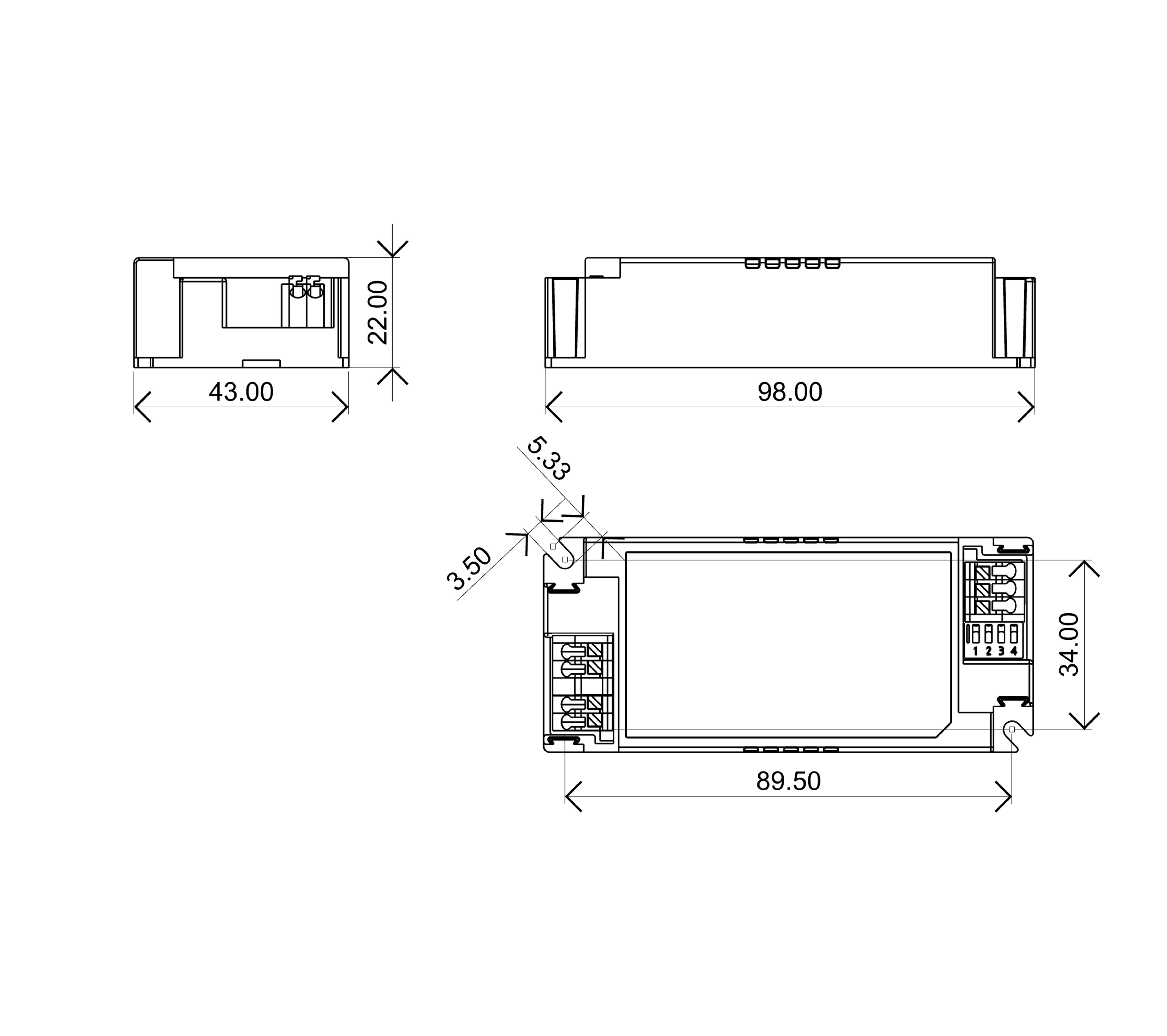

2D Line Drawing
Product Image
2D Line Drawing
42W | 150-1050mA

FLS-42-1050 LD PRO

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Built in / Independent  (With side caps）

· Input Voltage 220-240 VAC

 · Protection: SCP/ OLP/ OVP/ OTP

· Output current adjusted via dip-switch

· Efficiency：89%

· Power Factor＞0.95

· Height：22mm

· 5 years warranty


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-42-1050 LD PRO42W220-240VAC150-1050mA2.5-42V89%0.9598*43*22mm



FLS-42-1050 LD PRO spec REV C
