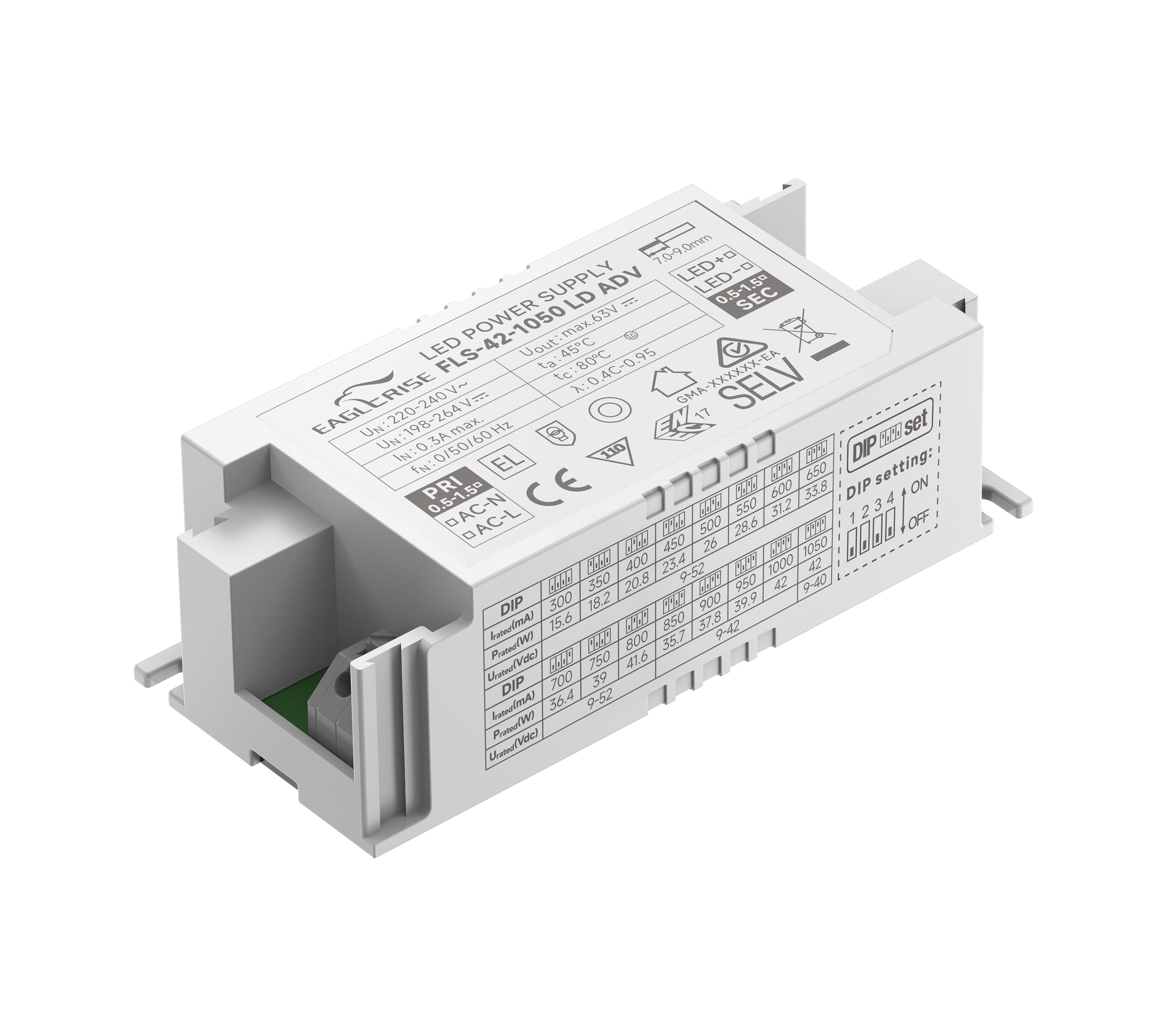

Product Image

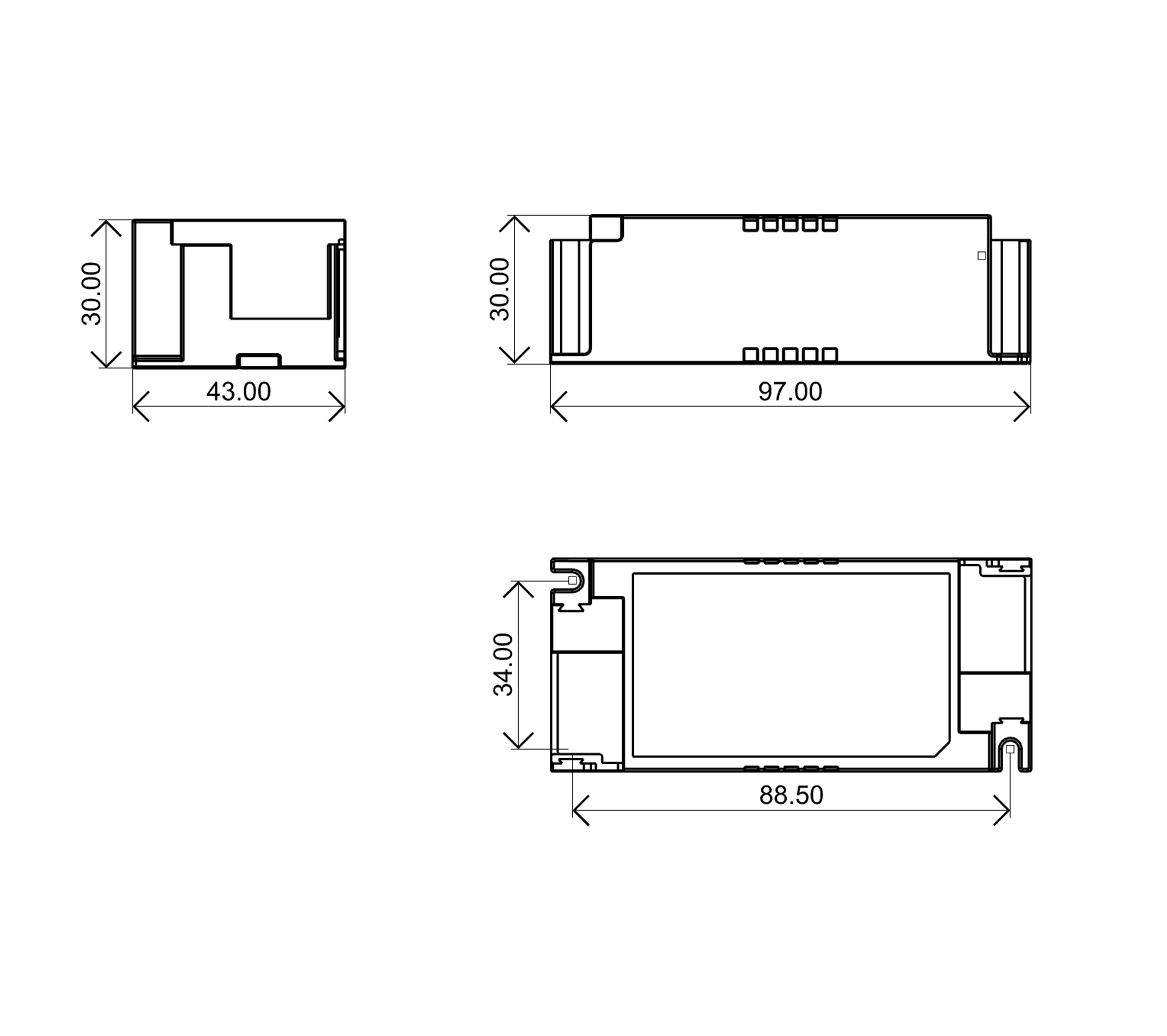

2D Line Drawing
Product Image
2D Line Drawing
42W | 300-1050mA

FLS-42-1050 LD ADV

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Built in / Independent  (With side caps)

· Input Voltage 220-240 VAC

 · Protection: SCP/ OLP/ OVP/ OTP

· Output current adjusted via dip-switch

· Efficiency:88%

· Power Factor>0.95

· Height:22mm

· 5 years warranty


Click to Expand
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-42-1050 LD ADV42W220-240VAC300-1050mA9-52V88%0.9597*43*30mm
