Home / Products / Mini Drivers / ON/OFF / FLS-40-1050 LD1 EXC

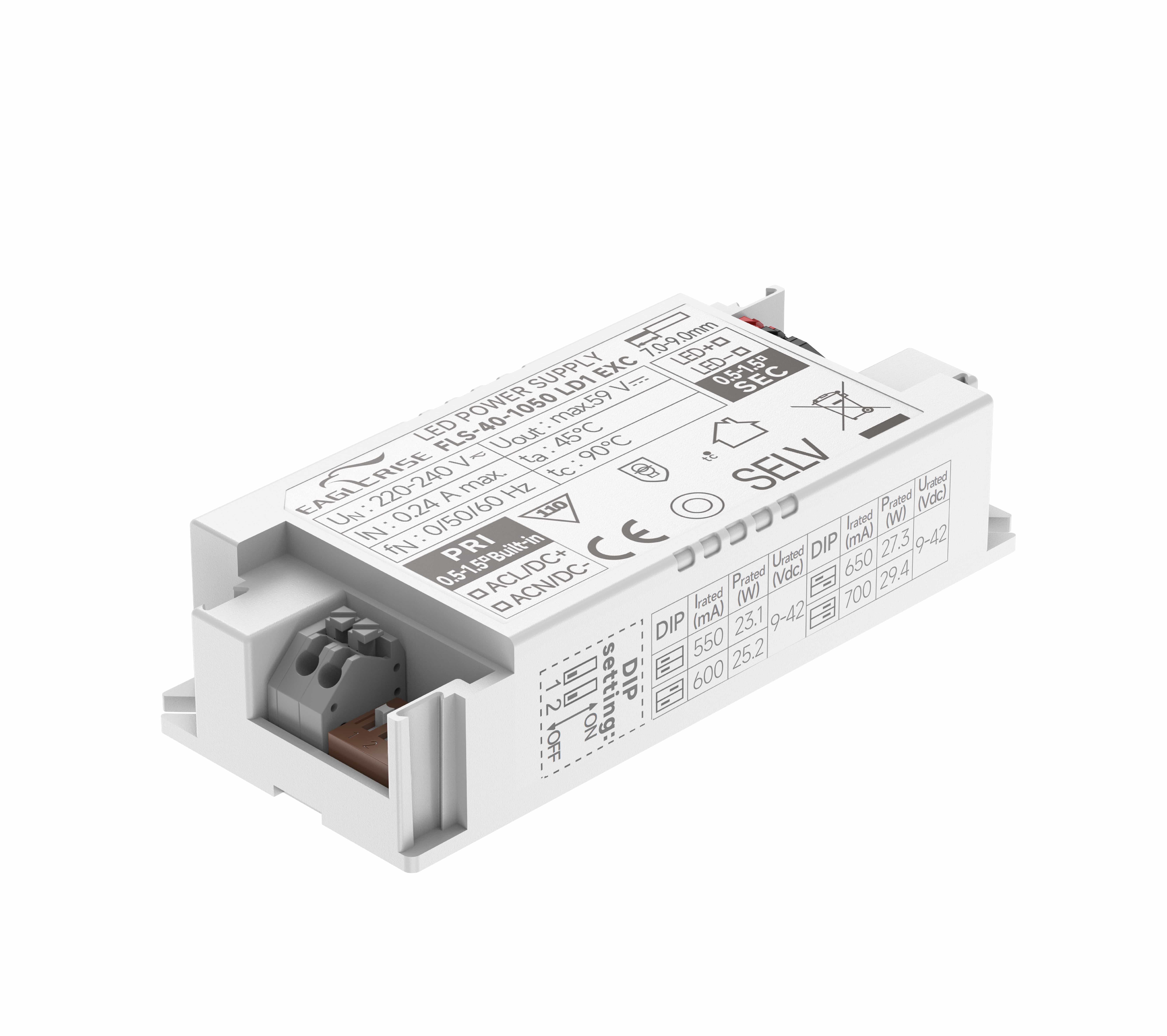

Product Image

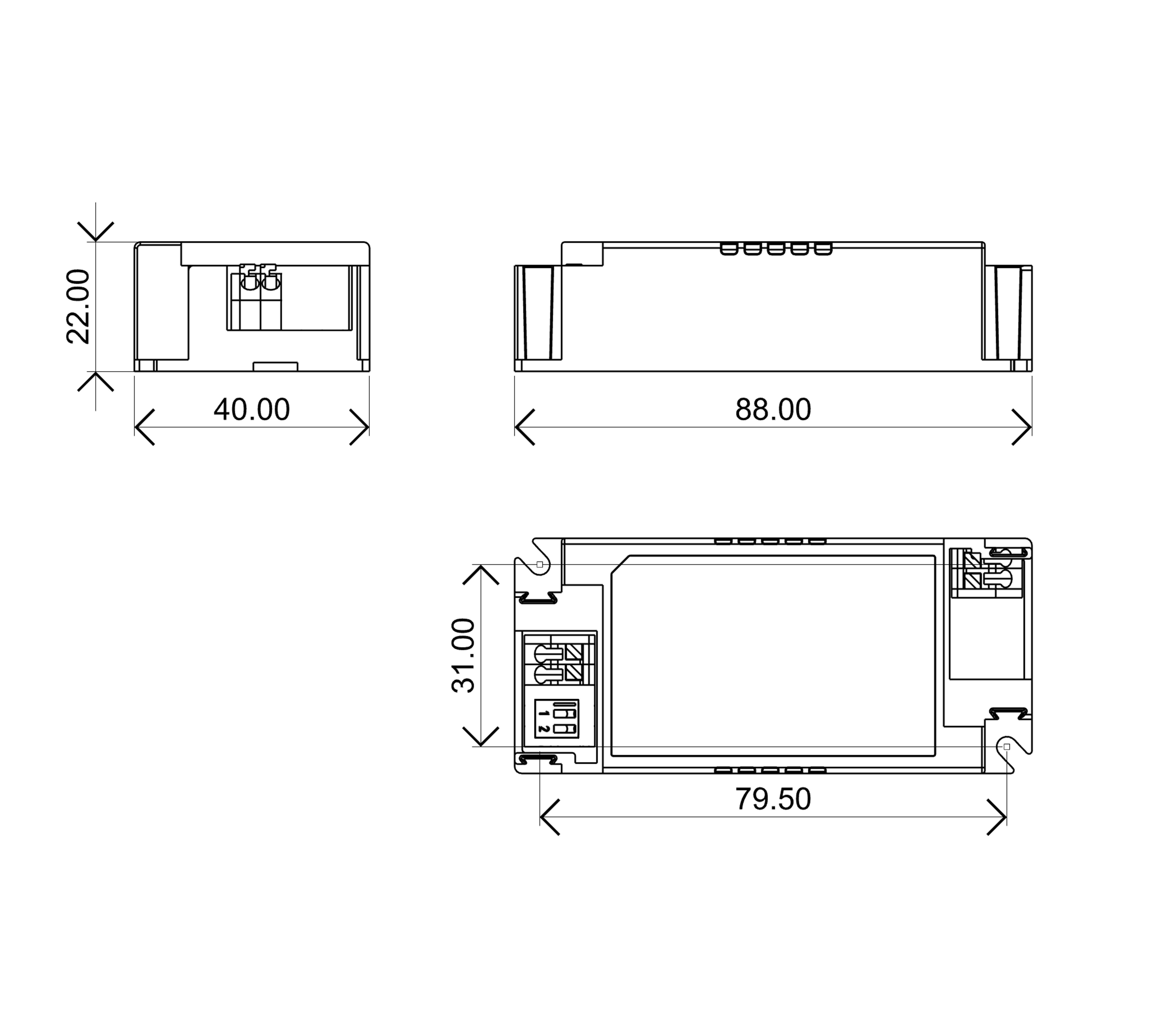

2D Line Drawing
Product Image
2D Line Drawing
40W | 900-1050mA

FLS-40-1050 LD1 EXC

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Built in / Independent  (With side caps）

· Input Voltage 220-240 VAC

 · Protection: SCP/ OLP/ OVP/ OTP

· Output current adjusted via dip-switch；  4 current steps

· Efficiency：90%

· Power Factor＞0.95

· Height：22mm

· 5 years warranty


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-40-1050 LD1 EXC40W220-240VAC900-1050mA9-42V90%0.9588*40*22mm



FLS-40-1050 LD1 EXC spec REV B
Download All Files
