21W | 350-500mA

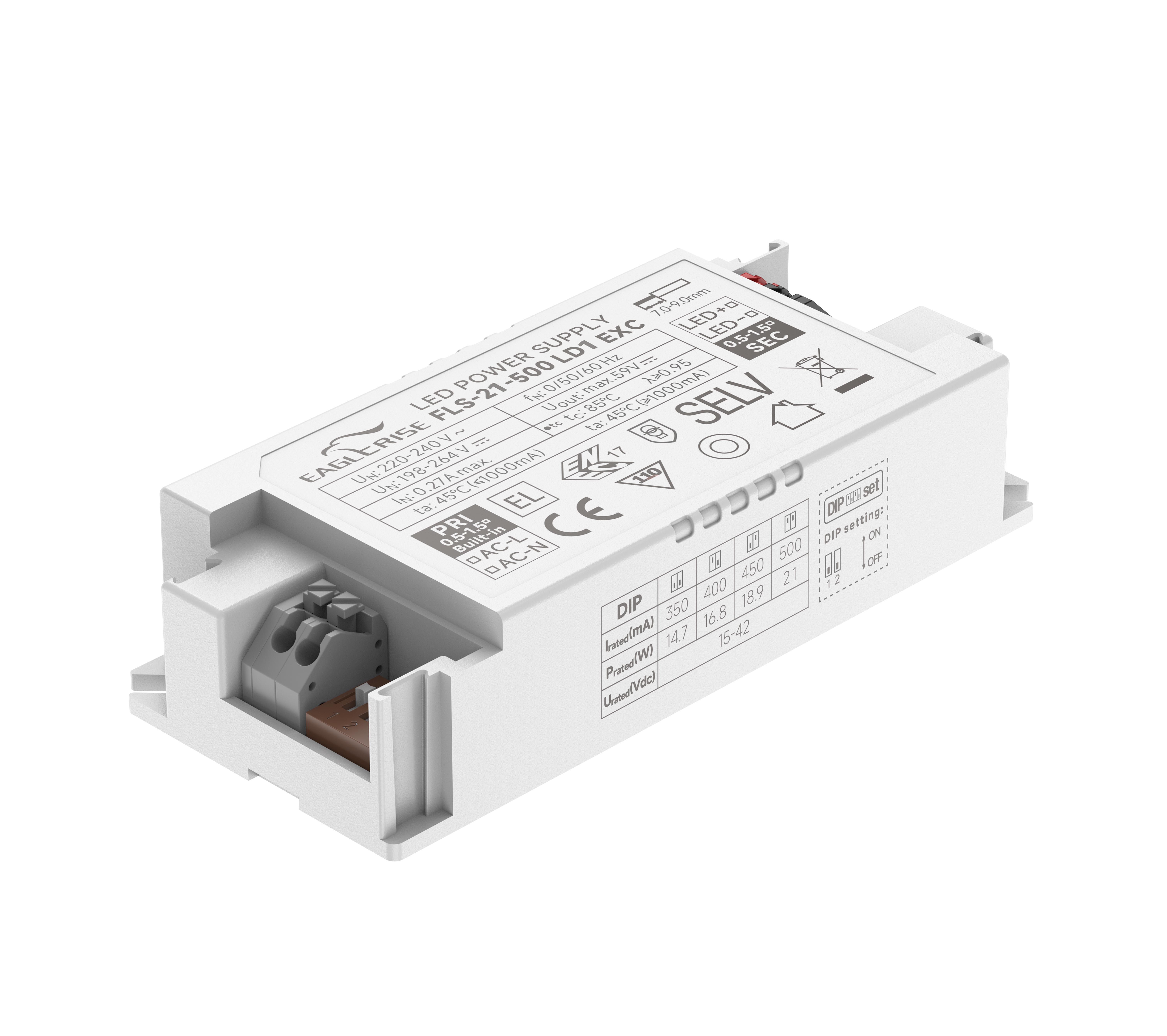

FLS-21-500 LD1 EXC

Product Description:

· For luminaire of protection class I and class II

· Isolated / SELV / Built in / Independent  (With side caps）

· Input Voltage 220-240 VAC

 · Protection: SCP/ OLP/ OVP/ OTP

· Output current adjusted via dip-switch；  4 current steps

· Efficiency：85%

· Power Factor＞0.95

· Height：22mm

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
FLS-21-500 LD1 EXC21W220-240VAC350-500mA27-42V85%0.9588*40*22mm



FLS-21-500 LD1 EXC spec REV B
