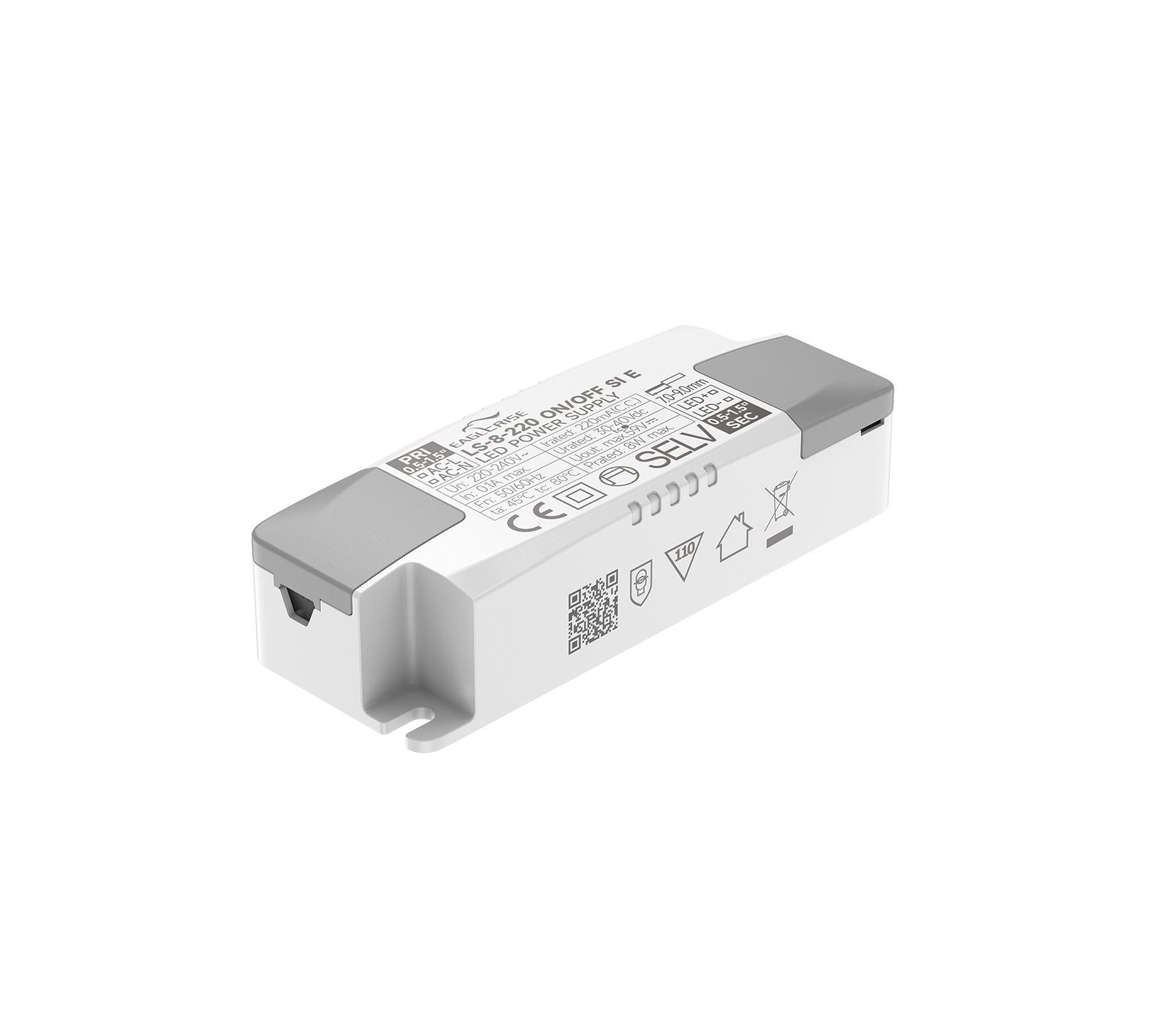

Product Image

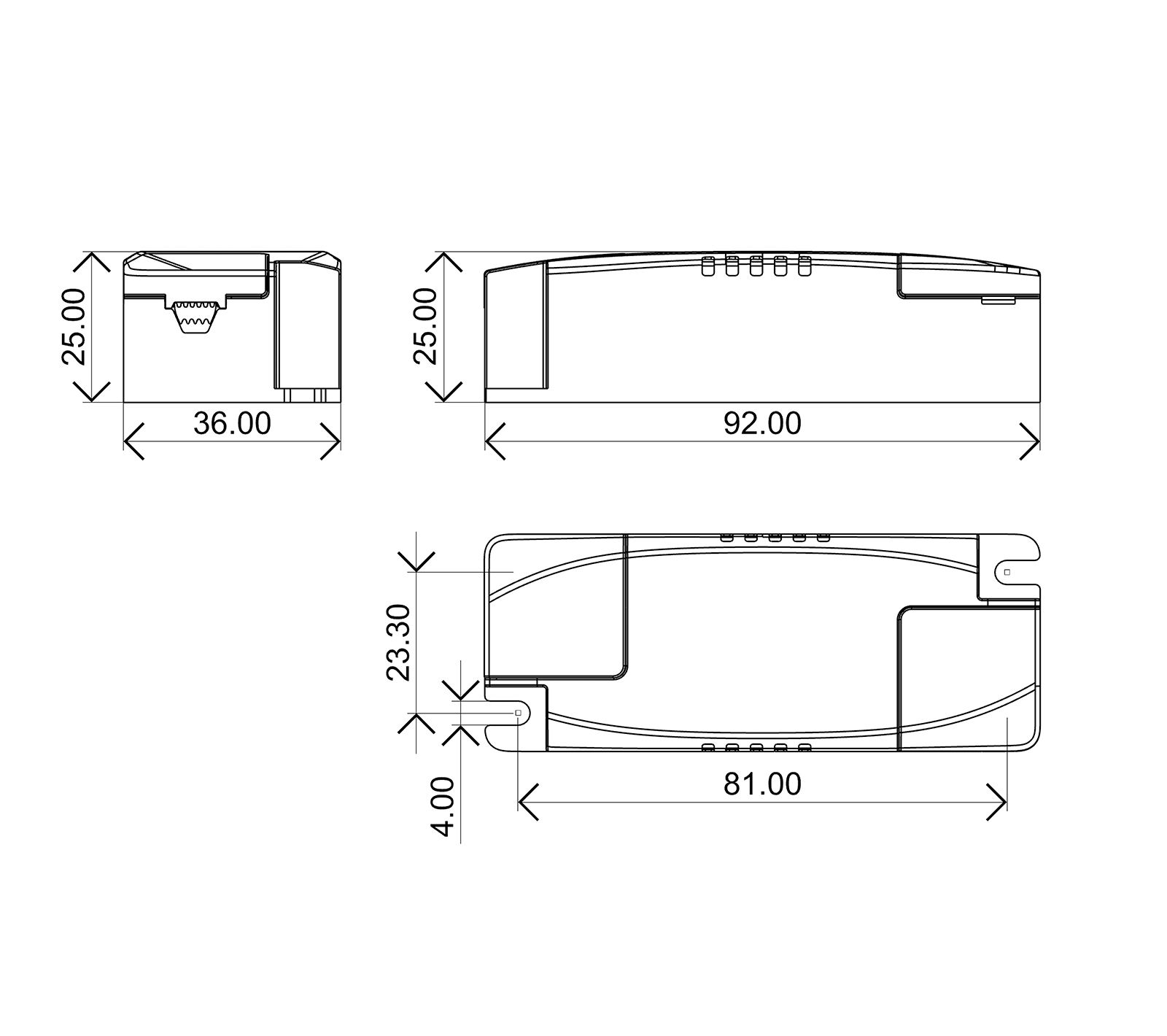

2D Line Drawing
Product Image
2D Line Drawing
8W | 100-220mA

LS-8-XXX ON/OFF SI E

Product Description:

· For luminaries of protection Class II， SELV，Independent

· Input Voltage 220-240VAC

· Protections: OLP/OVP/SCP/OTP

· Power Factor：0.5

· Efficiency：>74%@100-120mA ；>79%@150-220mA

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-8-100 ON/OFF SI E8W220-240VAC100mA30-40V74%0.592*36*25mm
LS-8-120 ON/OFF SI E8W220-240VAC120mA30-40V74%0.592*36*25mm
LS-8-150 ON/OFF SI E8W220-240VAC150mA30-40V79%0.592*36*25mm
LS-8-160 ON/OFF SI E8W220-240VAC160mA30-40V79%0.592*36*25mm
LS-8-180 ON/OFF SI E8W220-240VAC180mA30-40V79%0.592*36*25mm
LS-8-200 ON/OFF SI E8W220-240VAC200mA30-40V79%0.592*36*25mm
LS-8-220 ON/OFF SI E8W220-240VAC220mA30-40V79%0.592*36*25mm
