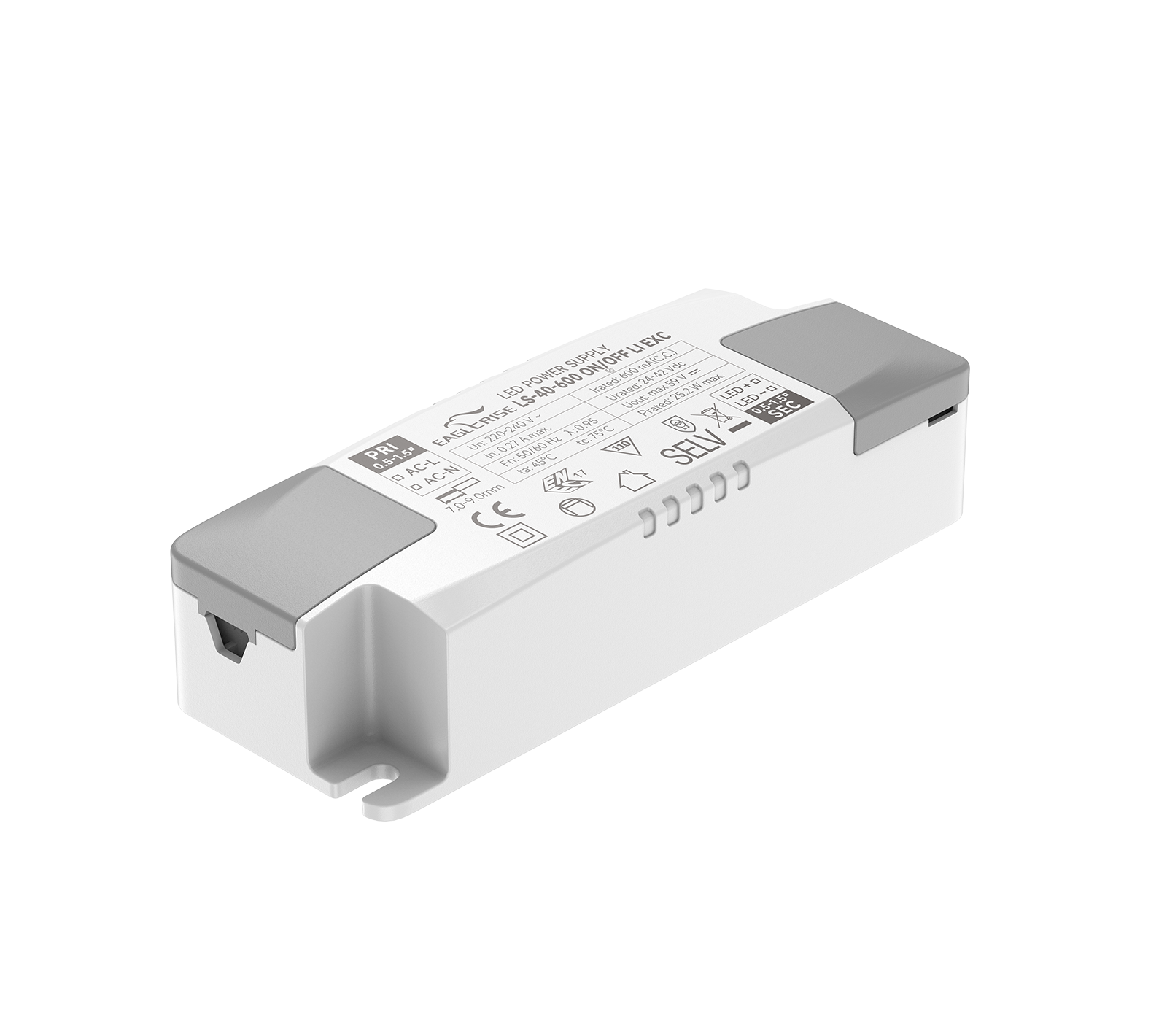

Product Image
2D Line Drawing
Product Image
2D Line Drawing
40W | 600-1050mA

LS-40-XXX ON/OFF LI EXC

Product Description:

· For luminaries of protection Class II， SELV，Independent

· Input Voltage 220-240VAC

· Protections: OLP/OVP/SCP/OTP

· Power Factor：≥0.95

· Efficiency：>88%

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-40-600 ON/OFF LI EXC40W220-240VAC600mA24-42V88%0.95116*41*26mm
LS-40-650 ON/OFF LI EXC40W220-240VAC650mA24-42V88%0.95116*41*26mm
LS-40-700 ON/OFF LI EXC40W220-240VAC700mA24-42V88%0.95116*41*26mm
LS-40-750 ON/OFF LI EXC40W220-240VAC750mA24-42V88%0.95116*41*26mm
LS-40-800 ON/OFF LI EXC40W220-240VAC800mA24-42V88%0.95116*41*26mm
LS-40-850 ON/OFF LI EXC40W220-240VAC850mA24-42V88%0.95116*41*26mm
LS-40-900 ON/OFF LI EXC40W220-240VAC900mA24-42V88%0.95116*41*26mm
LS-40-950 ON/OFF LI EXC40W220-240VAC950mA24-42V88%0.95116*41*26mm
LS-40-1000 ON/OFF LI EXC40W220-240VAC1000mA24-40V88%0.95116*41*26mm
LS-40-1050 ON/OFF LI EXC40W220-240VAC1050mA24-38.5V88%0.95116*41*26mm
LS-40-XXX ON OFF LI EXC spec REV B
