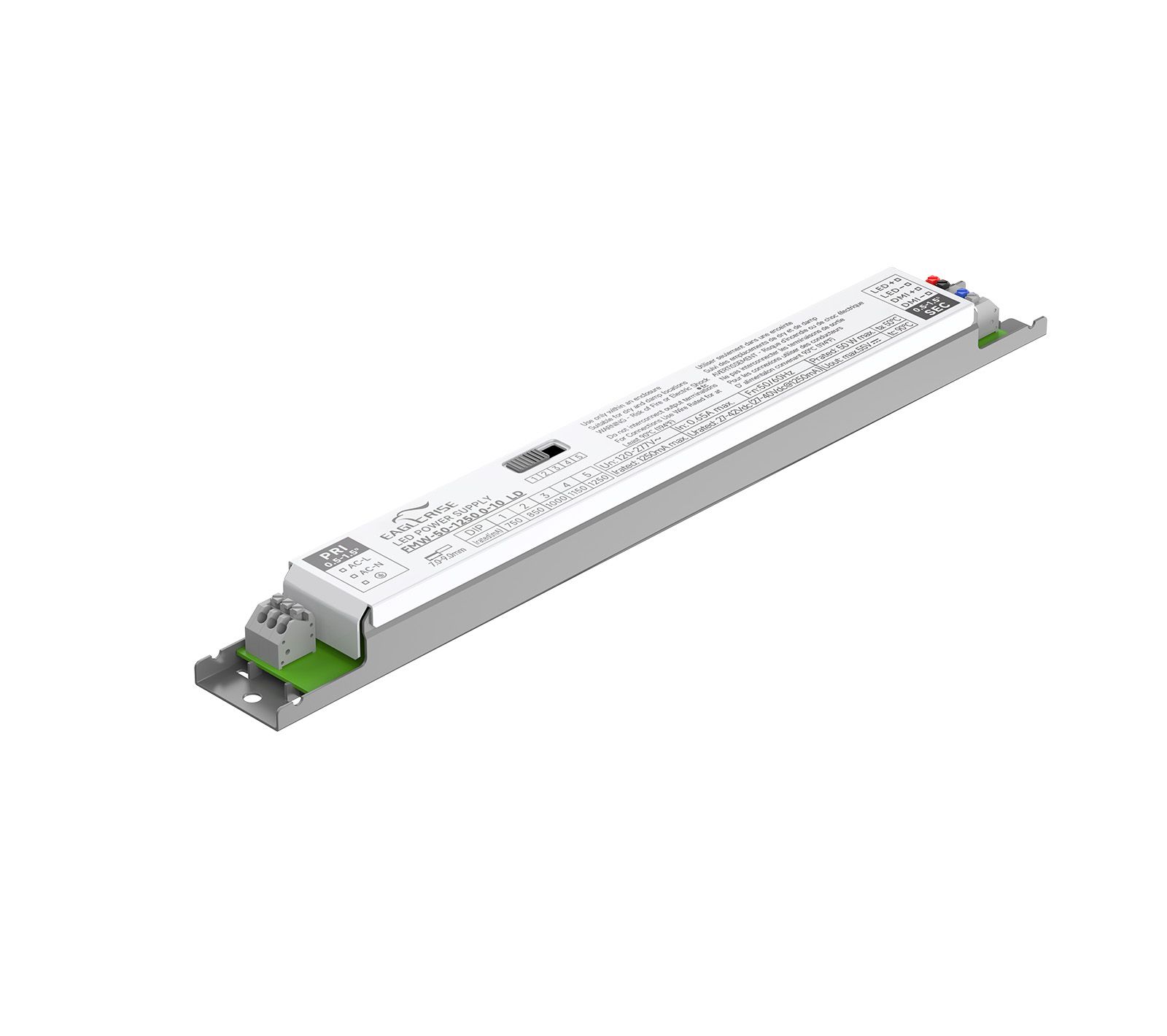

FMW-50-1250 0-10 LD
FMW-50-1250 0-10 LD
50W | 750-1250mA

FMW-50-1250 0-10 LD

Product Description:

· For built-in use
· For luminaries of protection Class I ,SELV，built-in
· Input Voltage ：120-277VAC
· Protections: SCP/OLP/OVP/OTP
· Power Factor ：0.9
· Support 0-10V dimming
· Efficiency:85%
· Flicker-free
· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOutput CurrentOutput VoltagePower FactorSize
FMW-50-1250 0-10 LD50W220-240VAC750-1250mA27-42V0.9280*30*21mm


FMW-50-1250 0-10 LD REV C
Related Products
FMW-30-750 0-10 LD
30W | 350-750mA
FMW-30-750 0-10 LD
