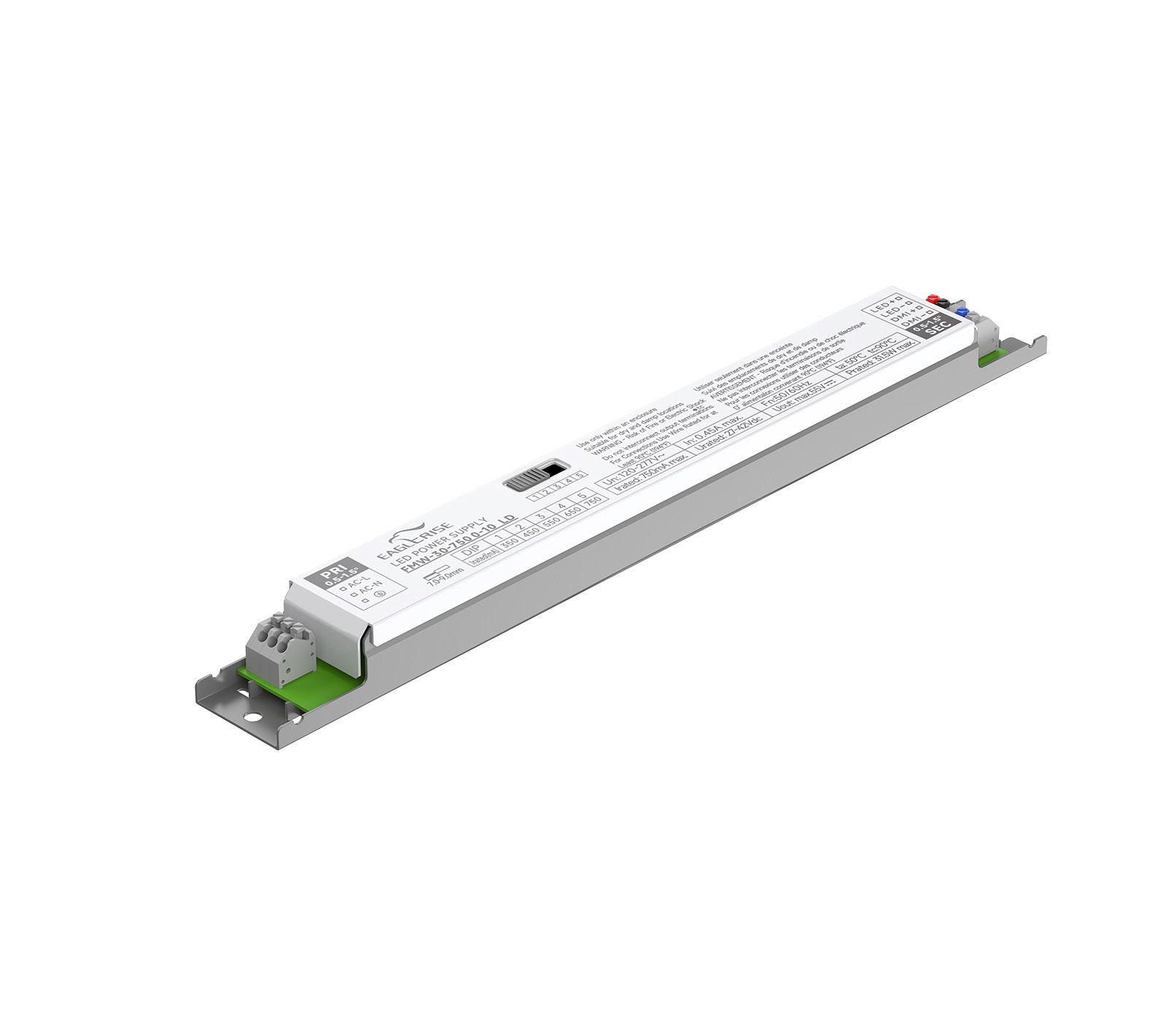

Product Image

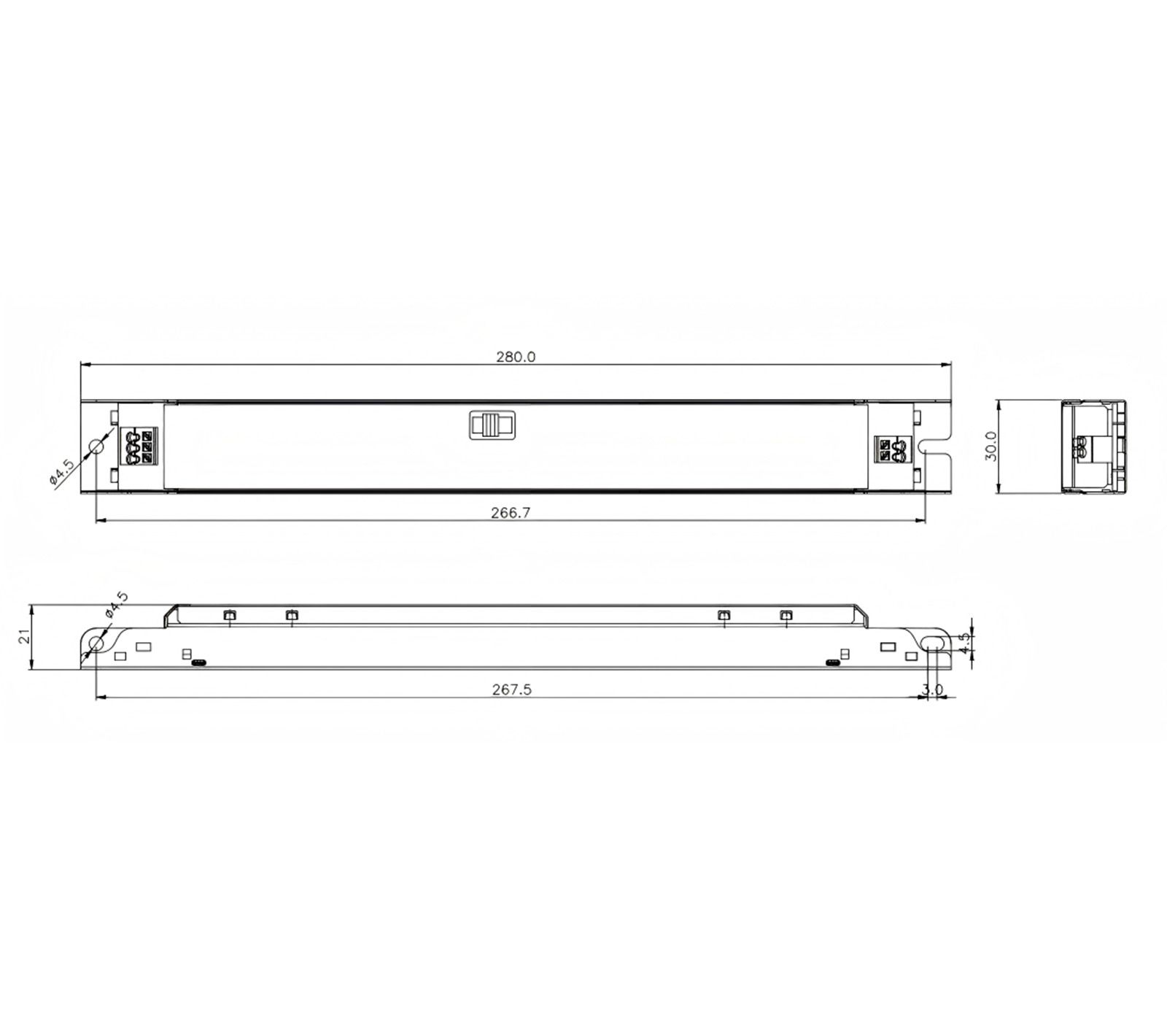

2D Line Drawing
Product Image
2D Line Drawing
30W | 350-750mA

FMW-30-750 0-10 LD

Product Description:

· For luminaries of protection Class I, SELV，built-in
· Input Voltage: 120-277VAC
· Protections: SCP/OLP/OVP/OTP
· Power Factor ：0.9
· Support 0-10V dimming
· Efficiency：85%
· Flicker-free
· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOutput CurrentOutput VoltagePower FactorSize
FMW-30-750 0-10 LD30W220-240VAC350-750mA27-42V0.9280*30*21mm


FMW-30-750 0-10 LD REV B
