Mini Drivers
· For luminaire of protection class I or II
· Isolated / SELV / Built-in / Independent (With side caps)
· Input Voltage 220-240 VAC
· Protections: SCP/ OLP/ OVP/ OTP
· CLO Integrated
· Efficiency up to 90%
· Adjustable output current with DIP-switch
· Suitable for emergency lighting acc. to EN 50172
· EOFi=15%
· 5 years warranty
· Ta: 50°C
· DALI maintainace (Parts 251, 252, 253)
· 3m/ 10m EMI
· 25mm height
· Surge: 2kV
| Item NO. | Model | Power | Input Voltage | Output Current | Output Voltage | Efficiency | PF | Size (L*W*H) |

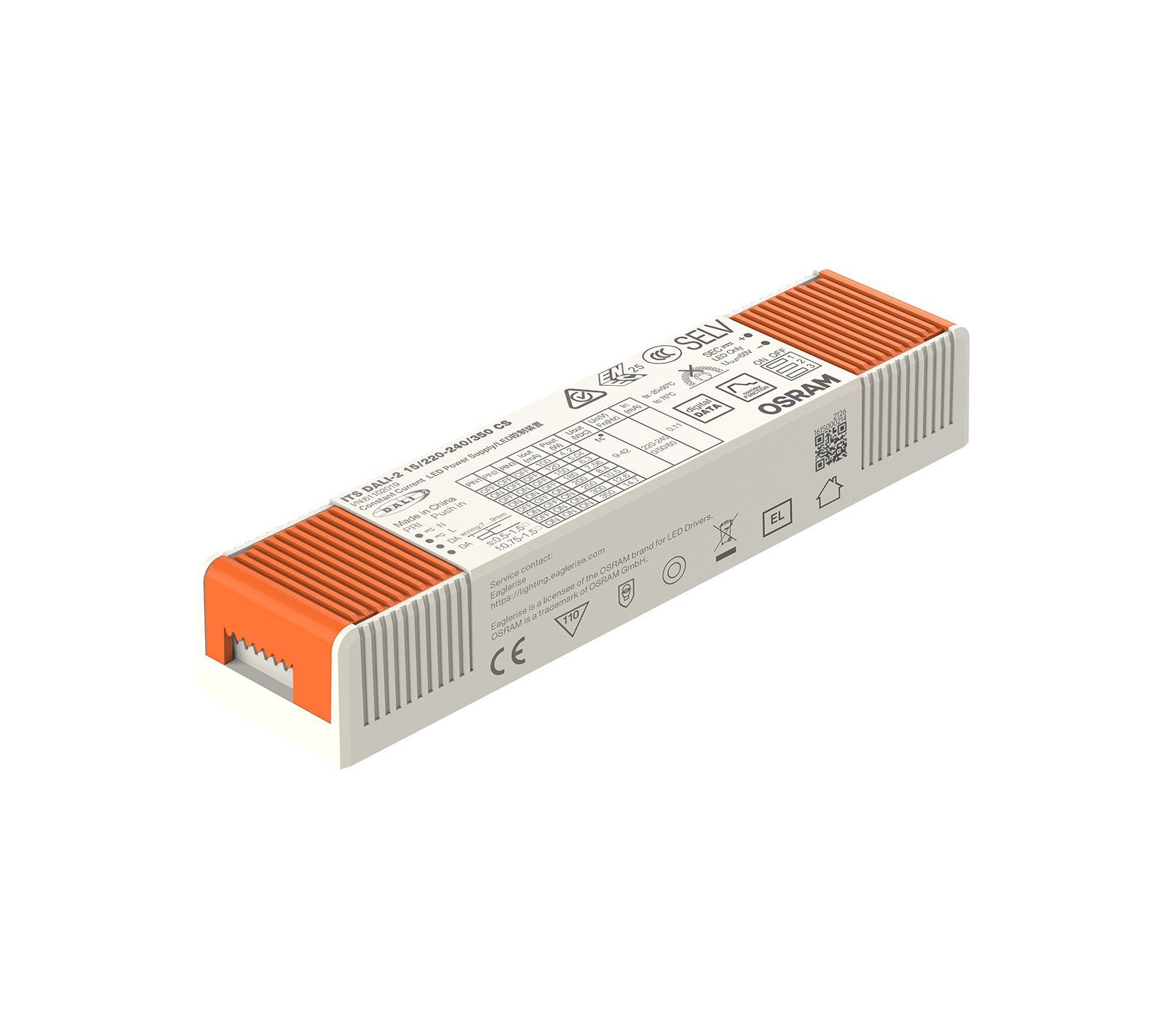

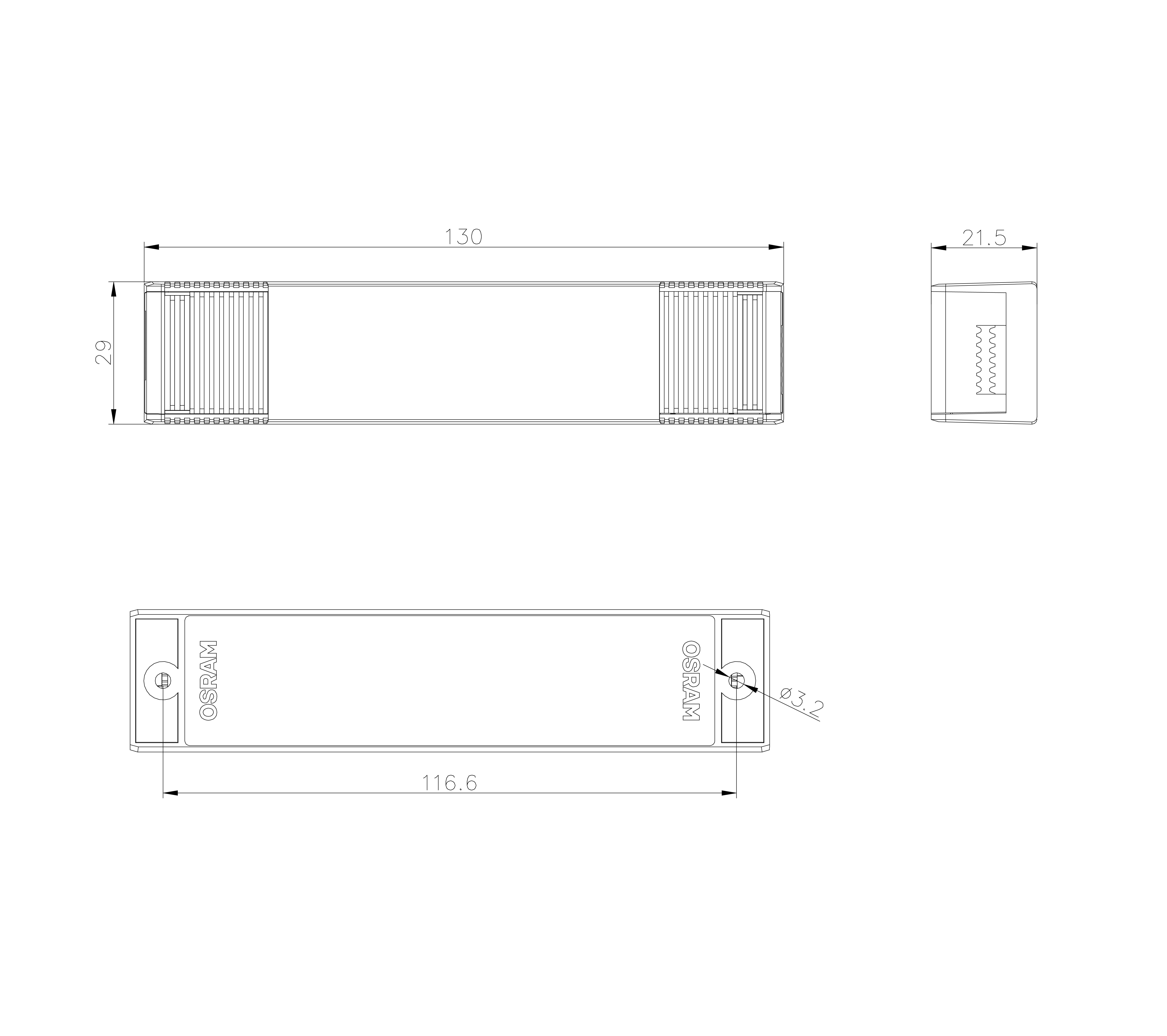

| 61102019 | ITS DALI-2 15/220-240/350 CS | 15W | 220-240VAC | 100-350mA | 9-42V | 85% | 0.95 | 130*29*21mm |
