Home / Products / Compact Drivers / ON/OFF / Lead wire / SS-9-XXX MB-G

2D Line Drawing

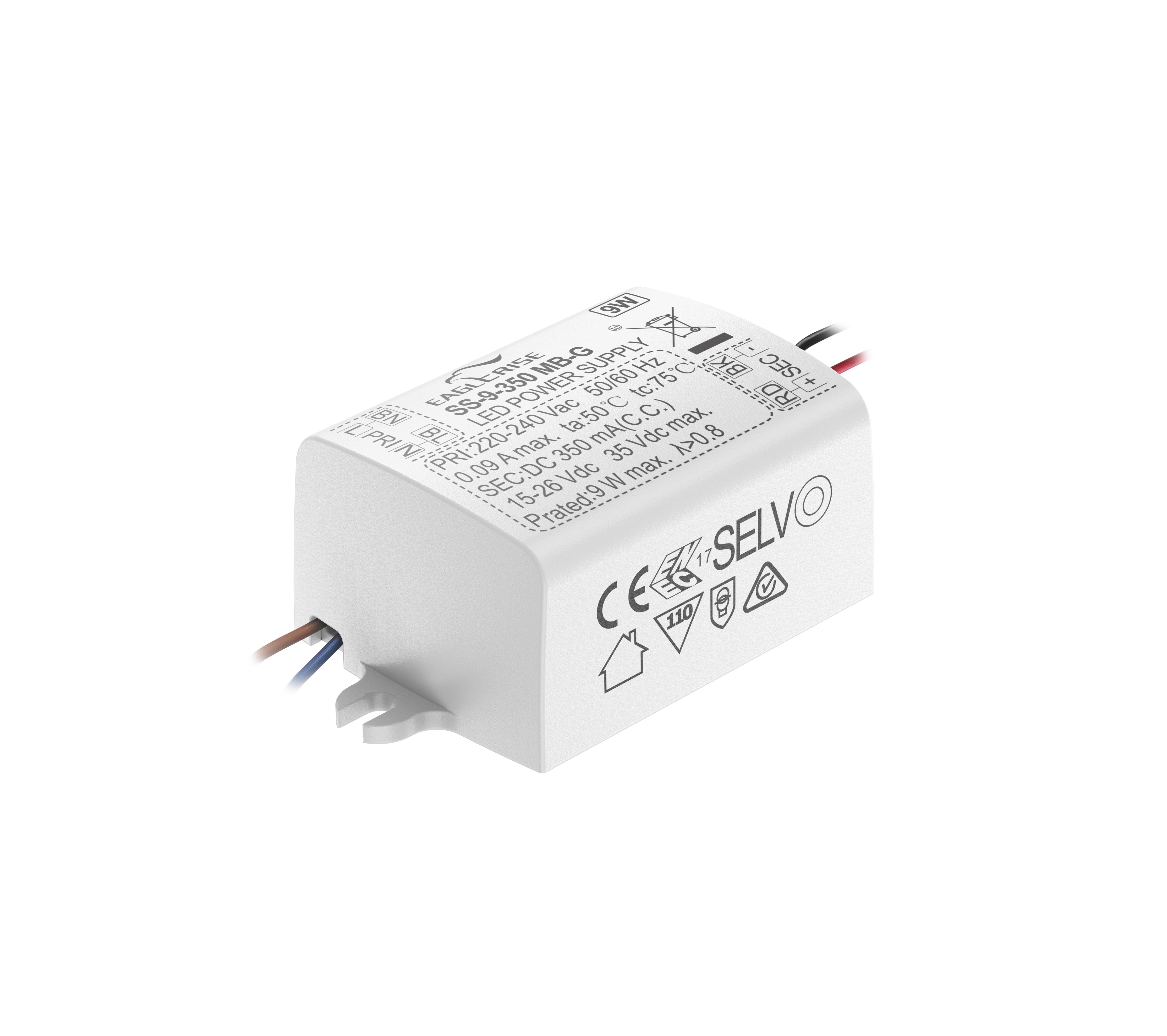

Product Image

2D Line Drawing

9W | 200-700mA

SS-9-XXX MB-G

Product Description:

· Class II&I，SELV，built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP

· Power Factor 0.8

· Efficiency ≥78%

· 5 years warranty

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
SS-9-200 MB-G	9W	220-240VAC	200mA	27-45V	78%	0.8	603423.5mm
SS-9-350 MB-G	9W	220-240VAC	350mA	15-26V	78%	0.8	603423.5mm
SS-9-700 MB-G	9W	220-240VAC	700mA	7-13V	78%	0.8	603423.5mm

SS-9-XXX MB-G spec REV A

Download All Files

Related Products

6W | 300-700mA

SS-6-XXX MB

12W | 300-700mA

SS-12-XXX MB-G
