Home / Products / Compact Drivers / ON/OFF / Lead wire / SS-6-XXX MB

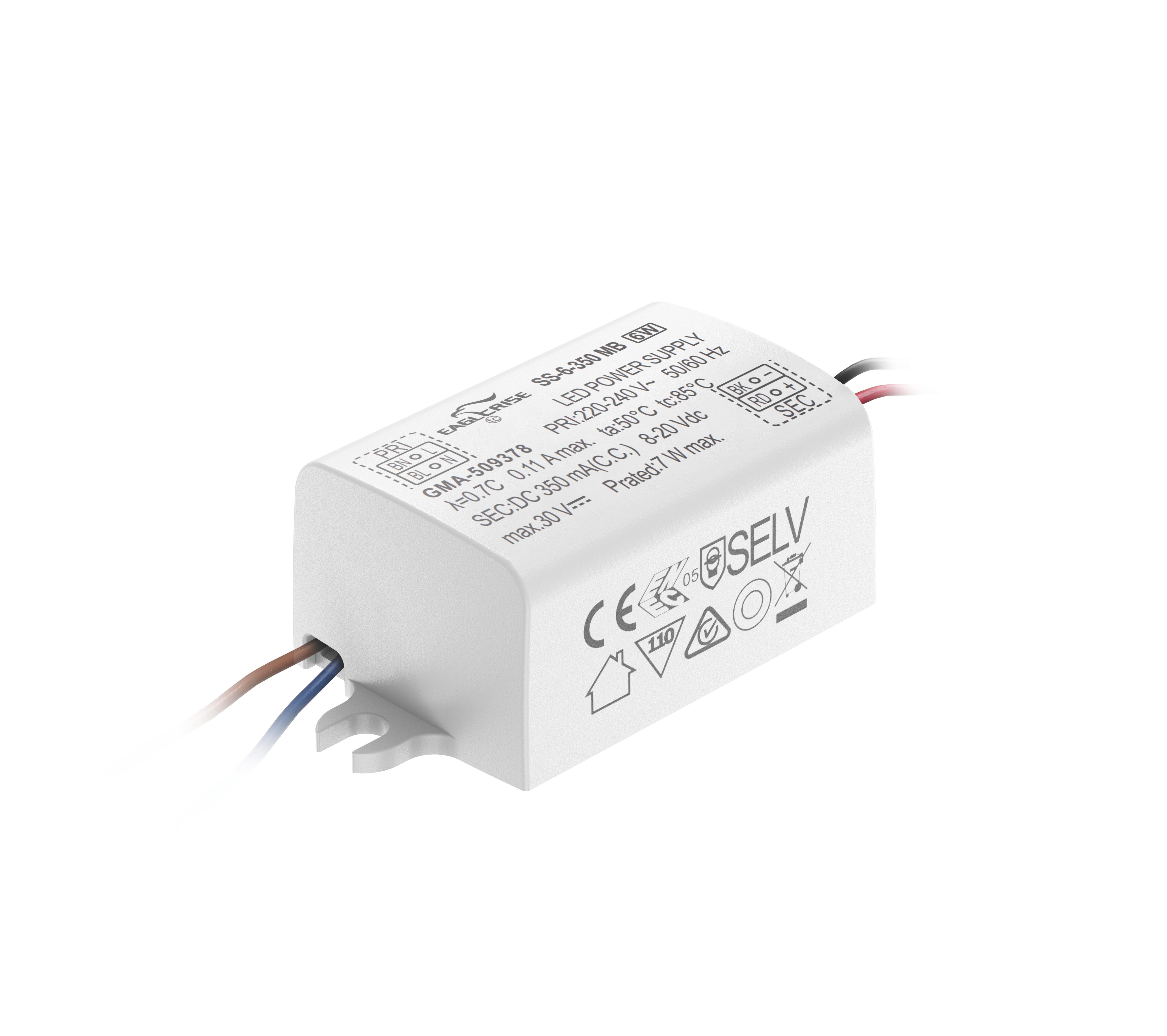

Product Image

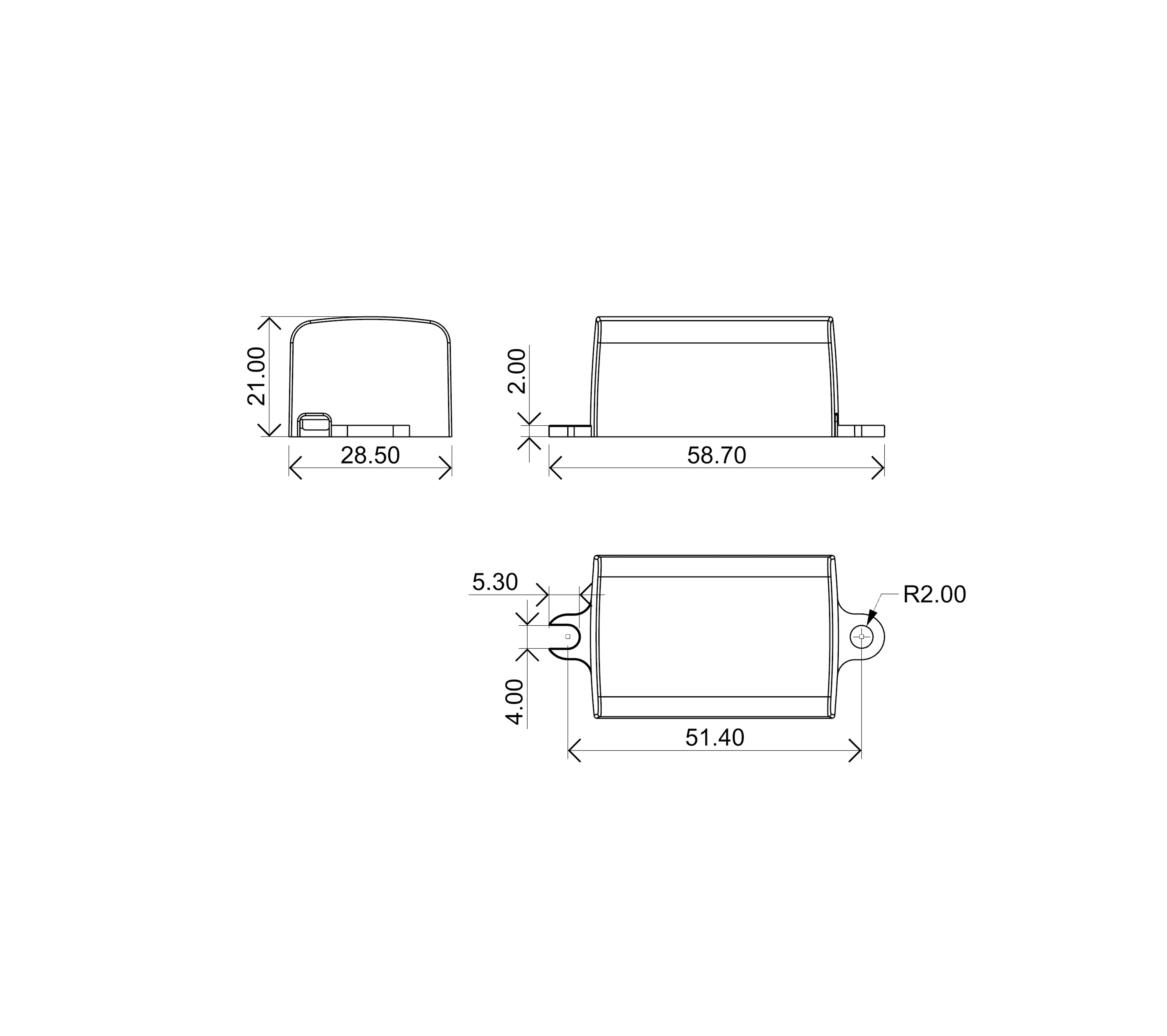

2D Line Drawing
Product Image
2D Line Drawing
6W | 300-700mA

SS-6-XXX MB

Product Description:

· Class II&I，SELV，Built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP

· Power Factor：0.7C

· Efficiency：≥76%

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
SS-6-300 MB6W220-240VAC300mA10-20V76%0.758.1*28.5*21mm
SS-6-350 MB6W220-240VAC350mA8-20V76%0.758.1*28.5*21mm
SS-6-700 MB6W220-240VAC700mA2.8-9V76%0.758.1*28.5*21mm


SS-6-XXX MB spec REV C
Download All Files
