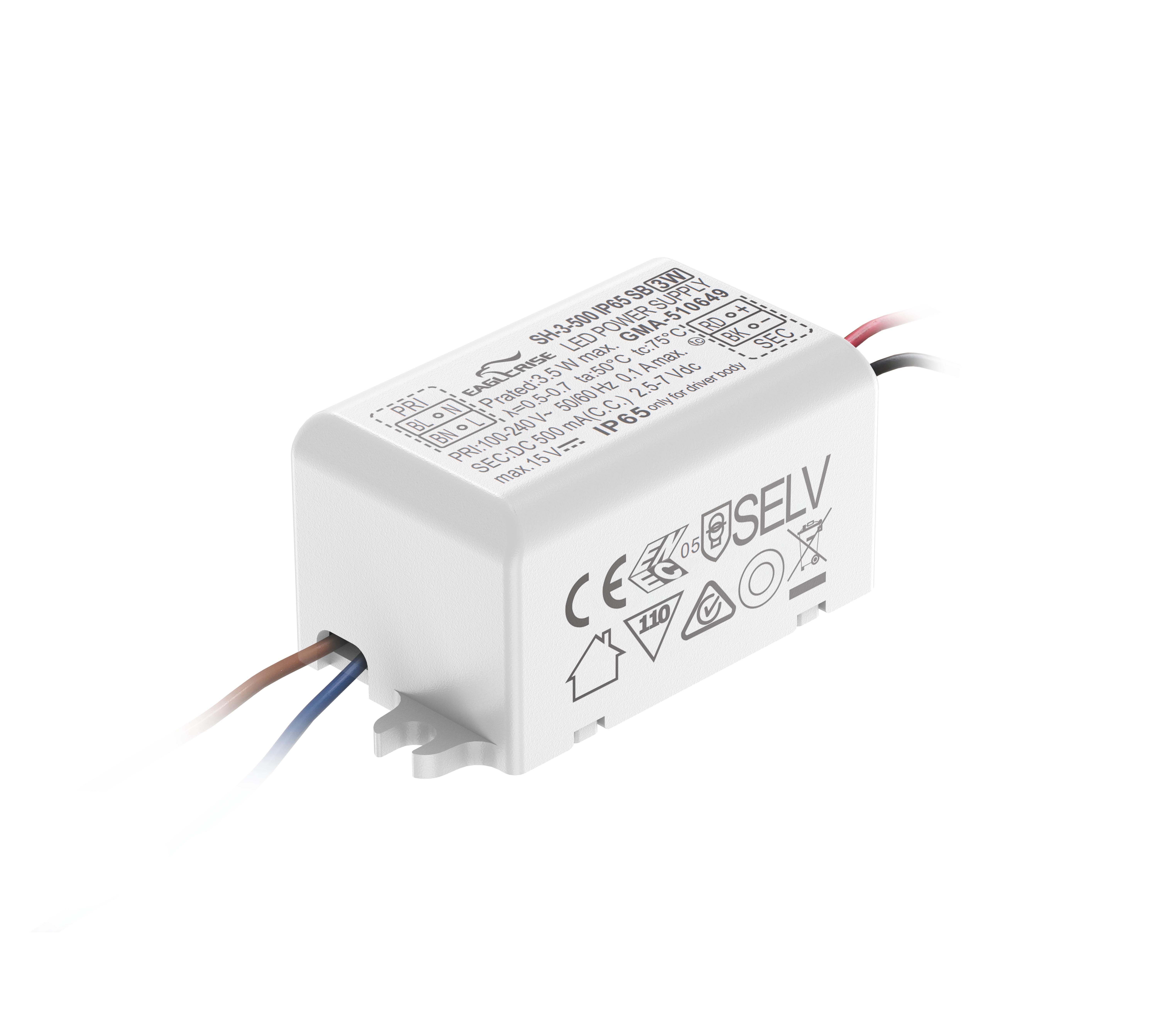

Product Image

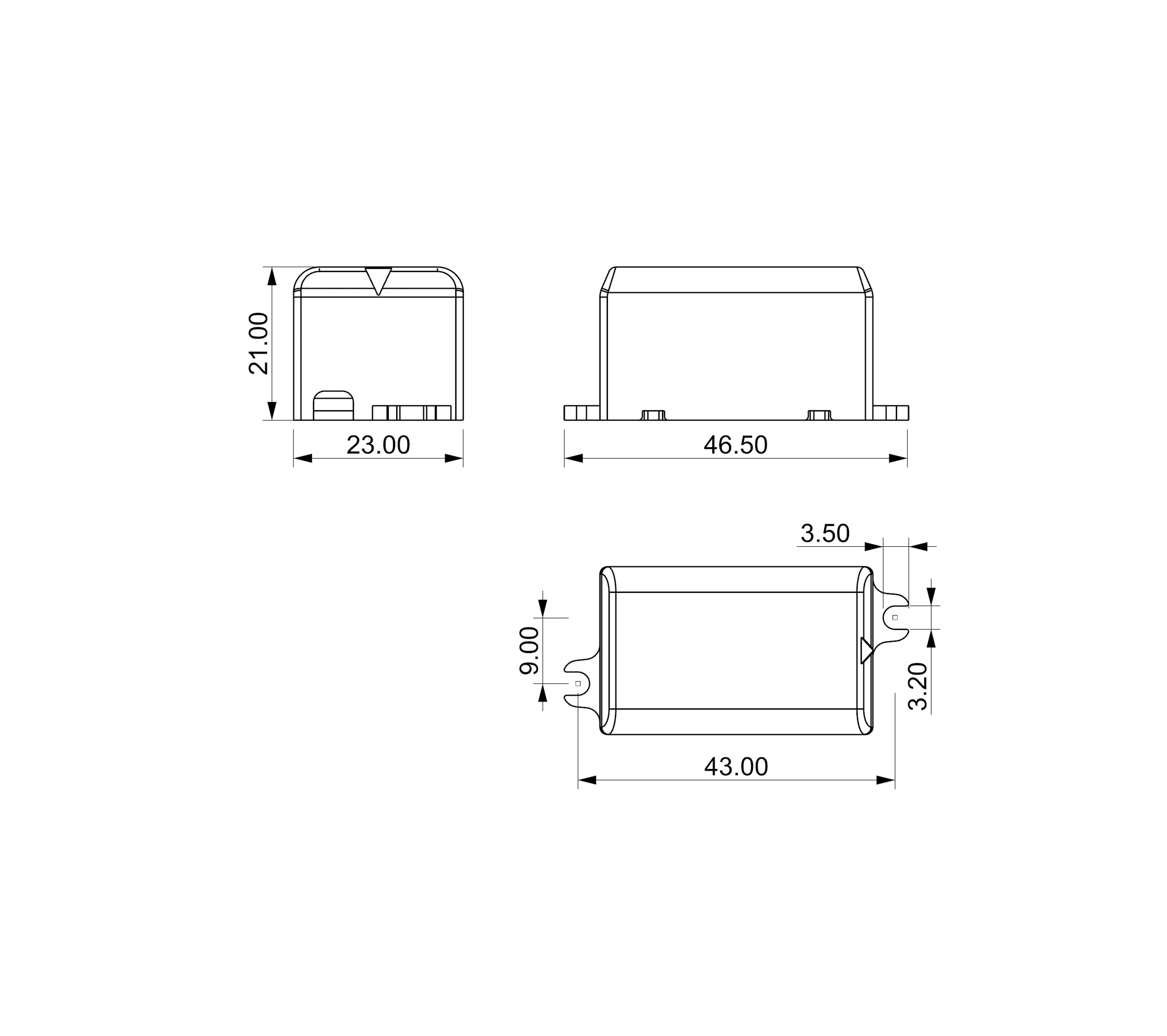

2D Line Drawing
Product Image
2D Line Drawing
3W | 300-700mA

SH-3-XXX IP65 SB

Product Description:

· Class II&I，SELV，Built-in

· Input Voltage 100-240VAC

· Protections: SCP/OLP/OVP

· Power Factor ≥0.5

· IP65 Ingress protection

· Efficiency ≥68%

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
SH-3-300 IP65 SB3W220-240VAC300mA2.5-12V68%0.547*23*21mm
SH-3-350 IP65 SB3W220-240VAC350mA2.5-10V68%0.547*23*21mm
SH-3-500 IP65 SB3W220-240VAC500mA2.5-7V68%0.547*23*21mm
SH-3-700 IP65 SB3W220-240VAC700mA2.5-4.5V68%0.547*23*21mm


SH-3-XXX IP65 SB spec REV A
