Home / Products / Eaglerise LED Drivers / Compact Drivers / ON/OFF / Lead wire / CS-15-XXX SB

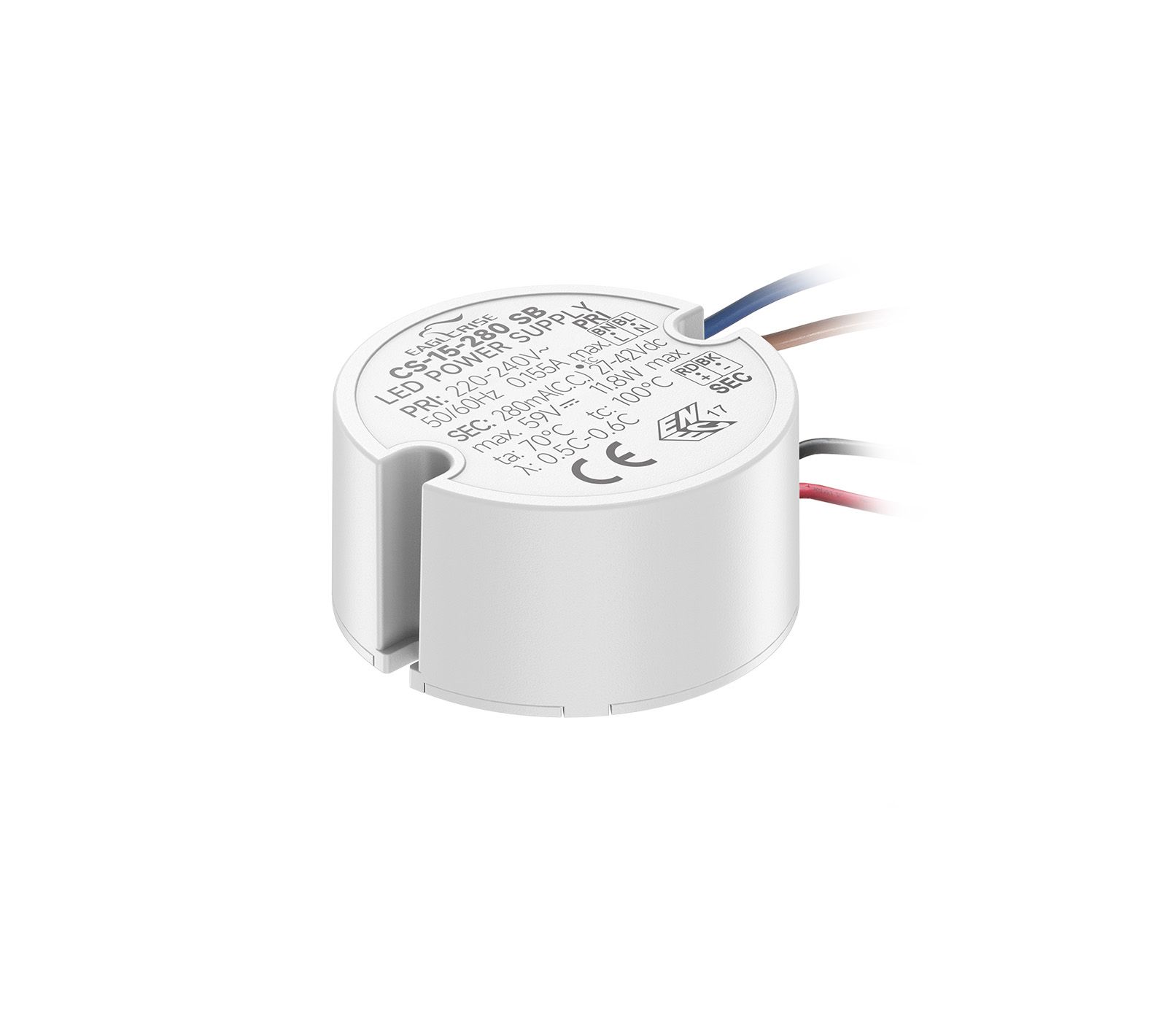

Product Image

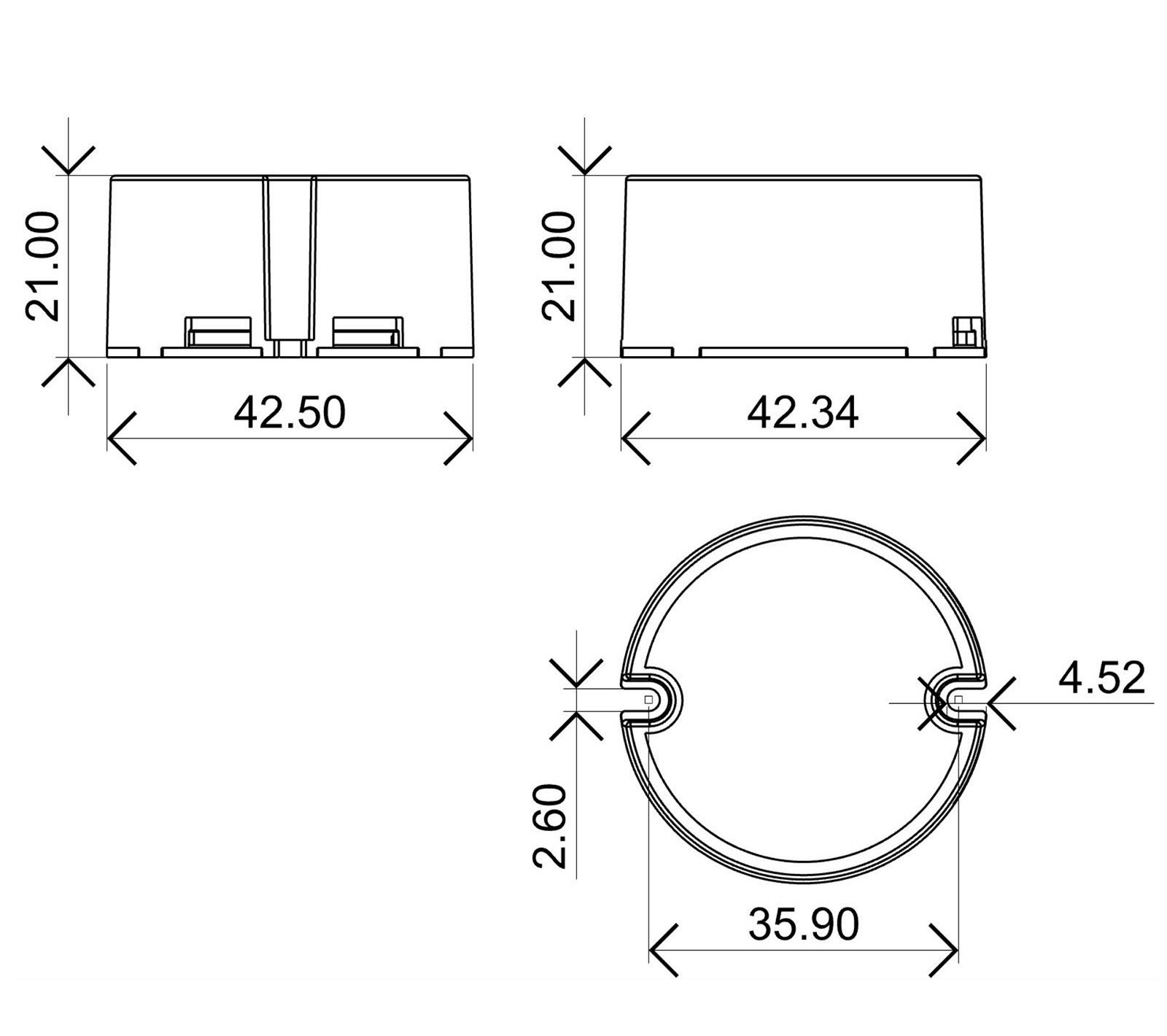

2D Line Drawing
Product Image
2D Line Drawing
15W | 250-400mA

CS-15-XXX SB

Product Description:

· Class II，SELV，Built-in
· Input Voltage： 220-240VAC
· Protections：SCP/OLP/OVP
· Power Factor：0.6C
· Efficiency：≥82%
· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
CS-15-250 SB15W220-240VAC250mA27-42V82%0.6Φ42.5*21mm
CS-15-250 SB15W220-240VAC280mA27-42V82%0.6Φ42.5*21mm
CS-15-250 SB15W220-240VAC300mA27-42V82%0.6Φ42.5*21mm
CS-15-250 SB15W220-240VAC350mA27-42V82%0.6Φ42.5*21mm
CS-15-250 SB15W220-240VAC400mA27-40V82%0.6Φ42.5*21mm
CS-15-XXX SB spec REV B
