25W | 350-700mA

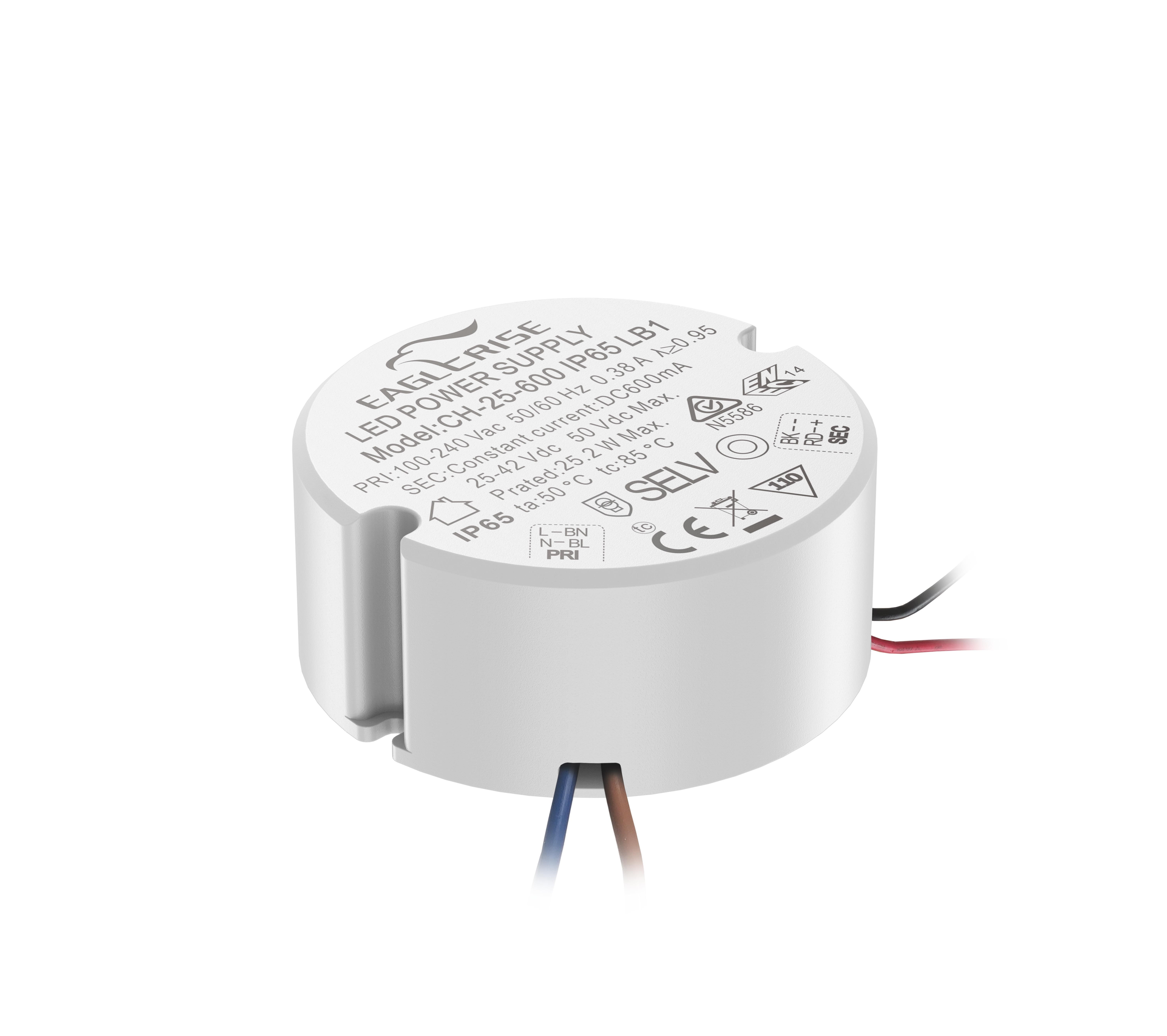

CH-25-XXX IP65 LB1

Product Description:

· Class II，SELV，Built-in

· Input Voltage 100-240VAC

· Protections: SCP/OLP/OVP

· Power Factor :0.95

· Efficiency ≥86%

· IP65 Ingress protection

· 5 years warranty

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
CH-25-350 IP65 LB1	25W	100-240VAC	350mA	43-72VDC	≥86%	0.95	Φ65*28mm
CH-25-600 IP65 LB1	25W	100-240VAC	600mA	25-42VDC	≥86%	0.95	Φ65*28mm
CH-25-700 IP65 LB1	25W	100-240VAC	700mA	21.5-36VDC	≥86%	0.95	Φ65*28mm

CH-25-XXX IP65 LB1 spec REV C

Download All Files
