12W | 300-700mA

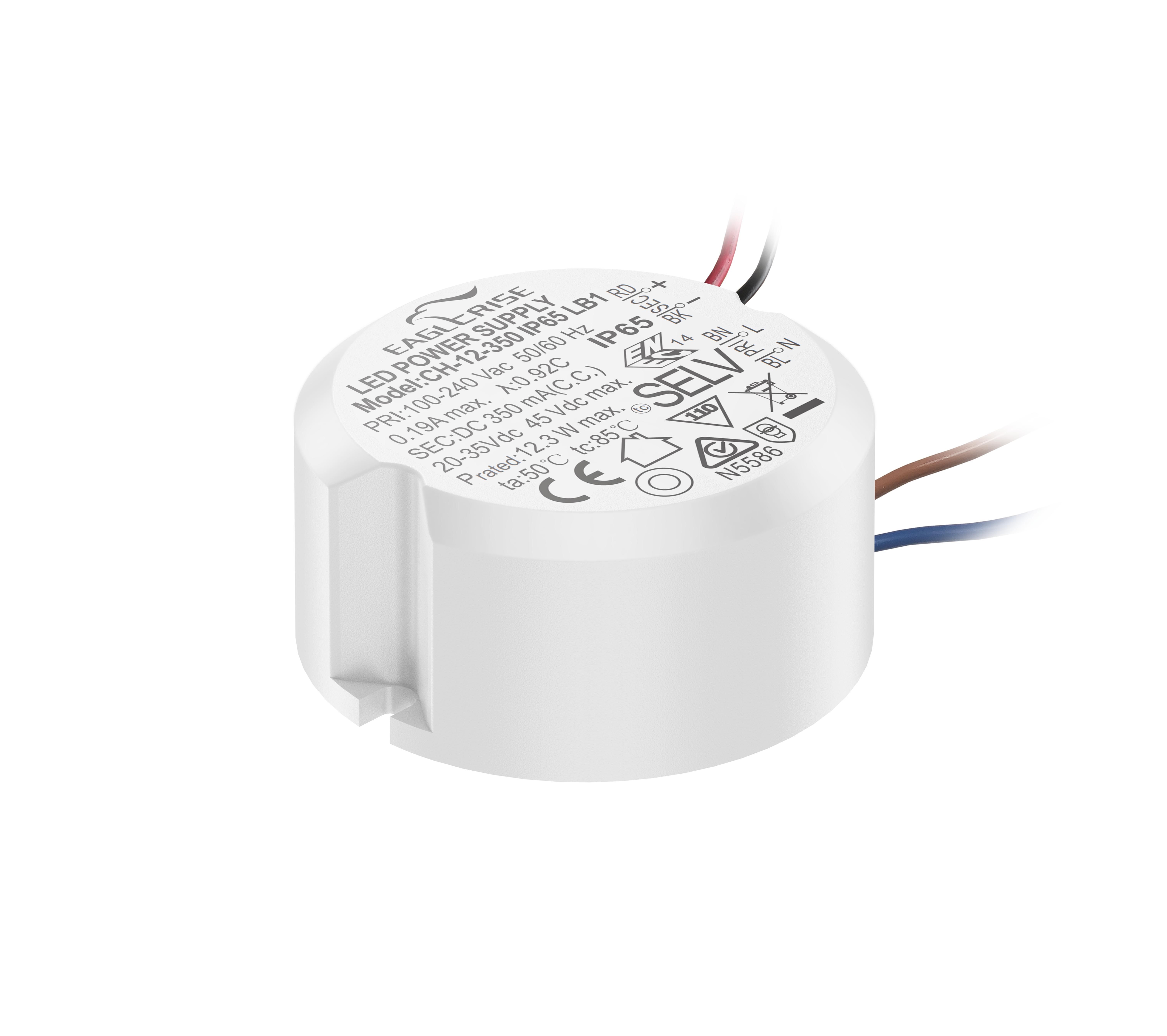

CH-12-XXX IP65 LB1

Product Description:

· Class II，SELV，Built-in

· Input Voltage 100-240VAC

· Protections: SCP/OLP/OVP

· Power Factor :0.95

· Efficiency ≥81%

· IP65 Ingress protection

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
CH-12-300 IP65 LB112W100-240VAC300mA24-40VDC≥81%0.95Φ55*26mm
CH-12-350 IP65 LB112W100-240VAC350mA20-35VDC≥81%0.95Φ55*26mm
CH-12-500 IP65 LB112W100-240VAC500mA14-24VDC≥81%0.95Φ55*26mm
CH-12-700 IP65 LB112W100-240VAC700mA10.5-17.5VDC≥81%0.95Φ55*26mm



CH-12-XXX IP65 LB1 spec REV C
