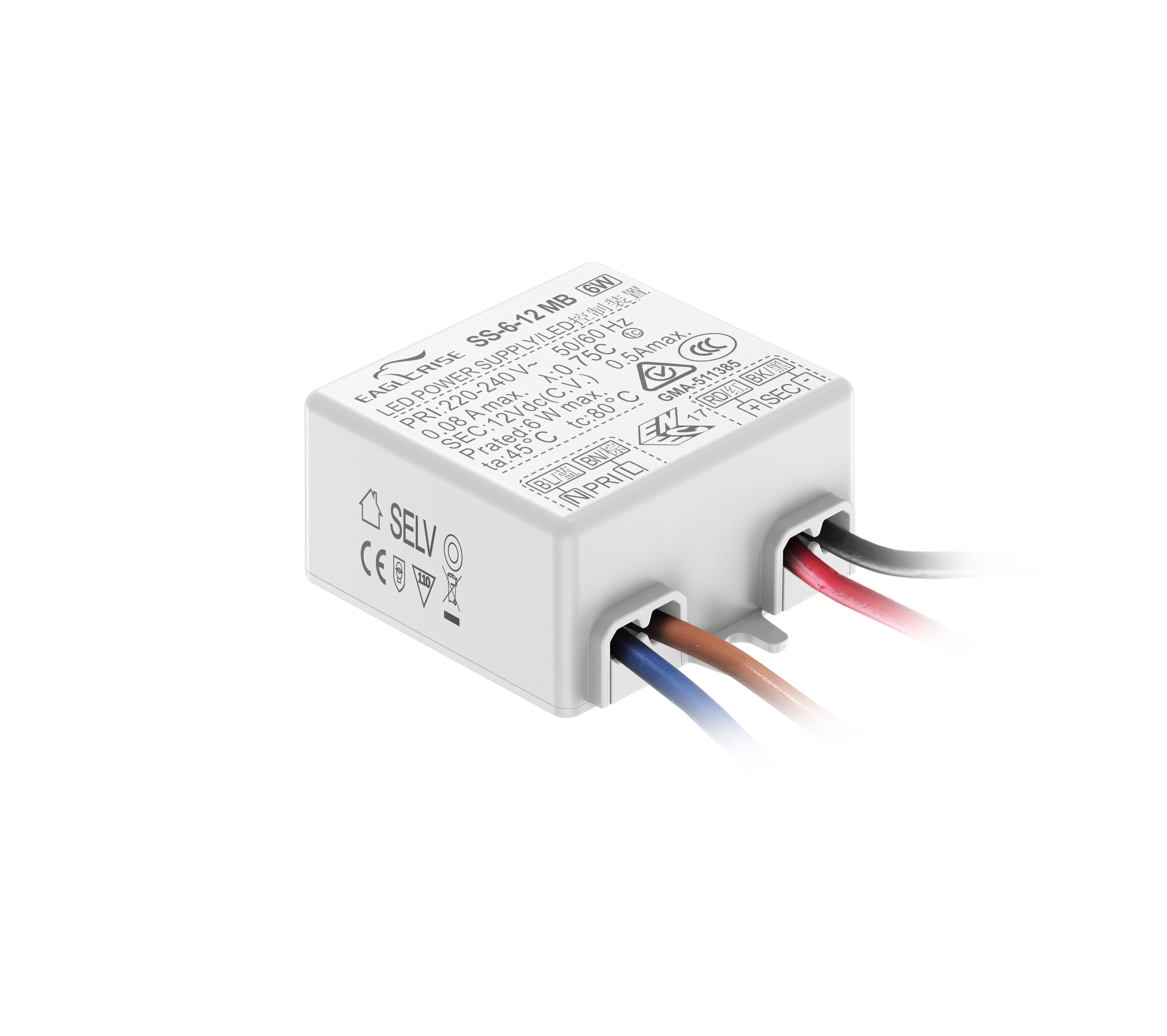

Product Image

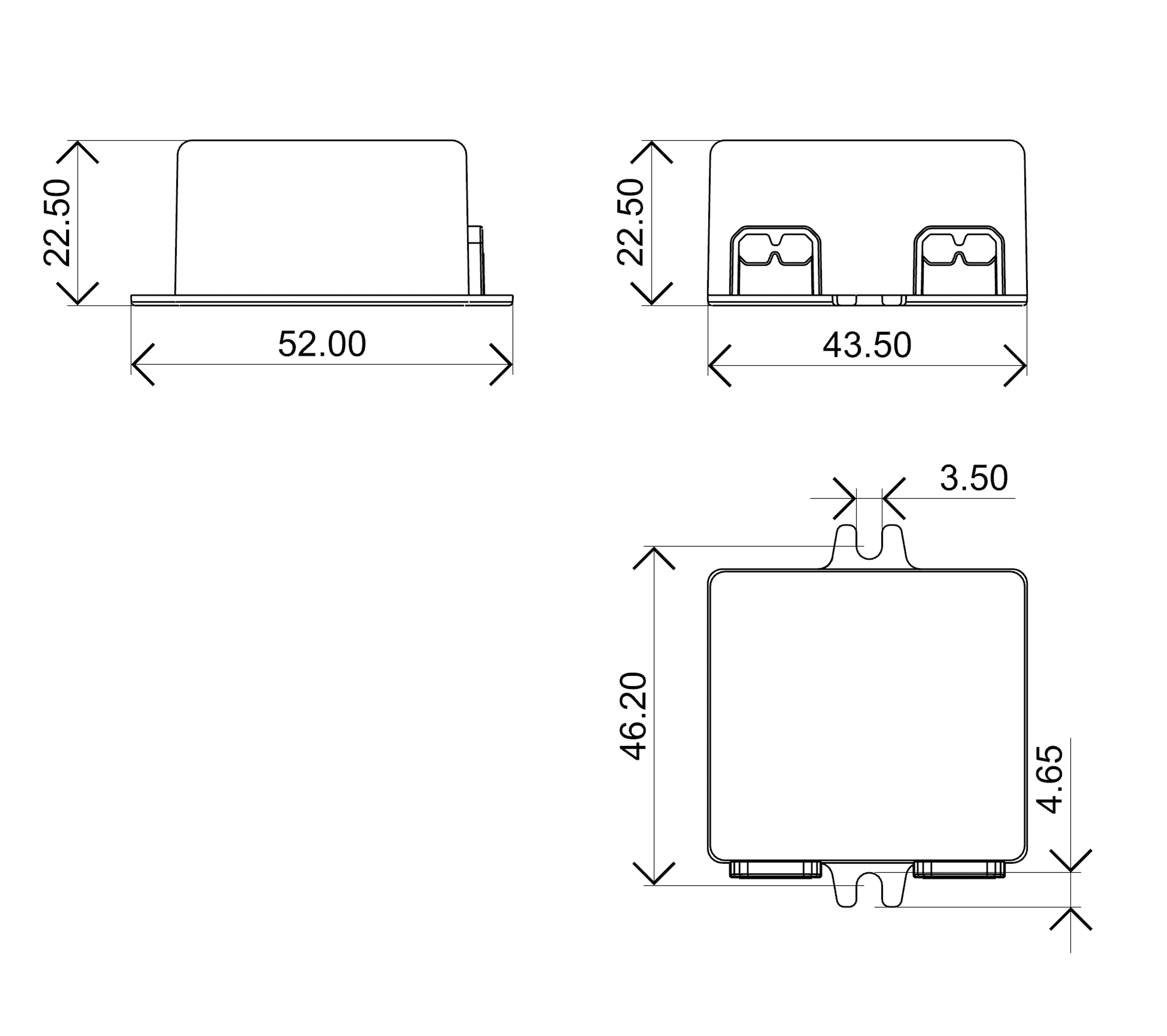

2D Line Drawing
Product Image
2D Line Drawing
6W | 12/24V

SS-6-XX MB

Product Description:

· Class II，SELV，built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor 0.75C

· Efficiency ≥75%

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
SS-6-12 MB6W220-240VAC0-0.5A12V75%0.7552*43.5*22.5mm
SS-6-24 MB6W220-240VAC0-0.25A24V75%0.7552*43.5*22.5mm


SS-6-XX MB spec REV A
