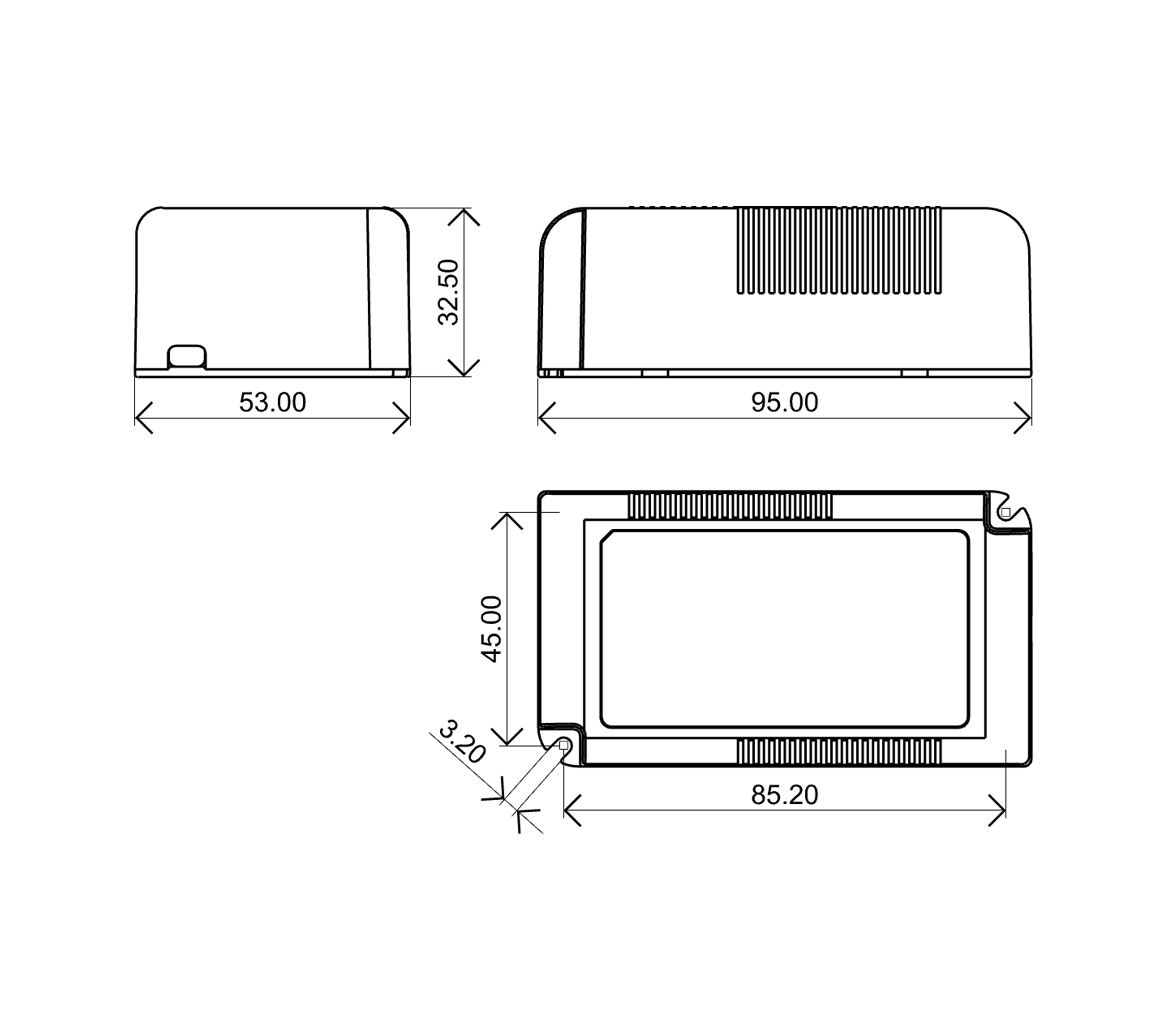

2D Line Drawing
Product Image
2D Line Drawing
30W | 12/24V

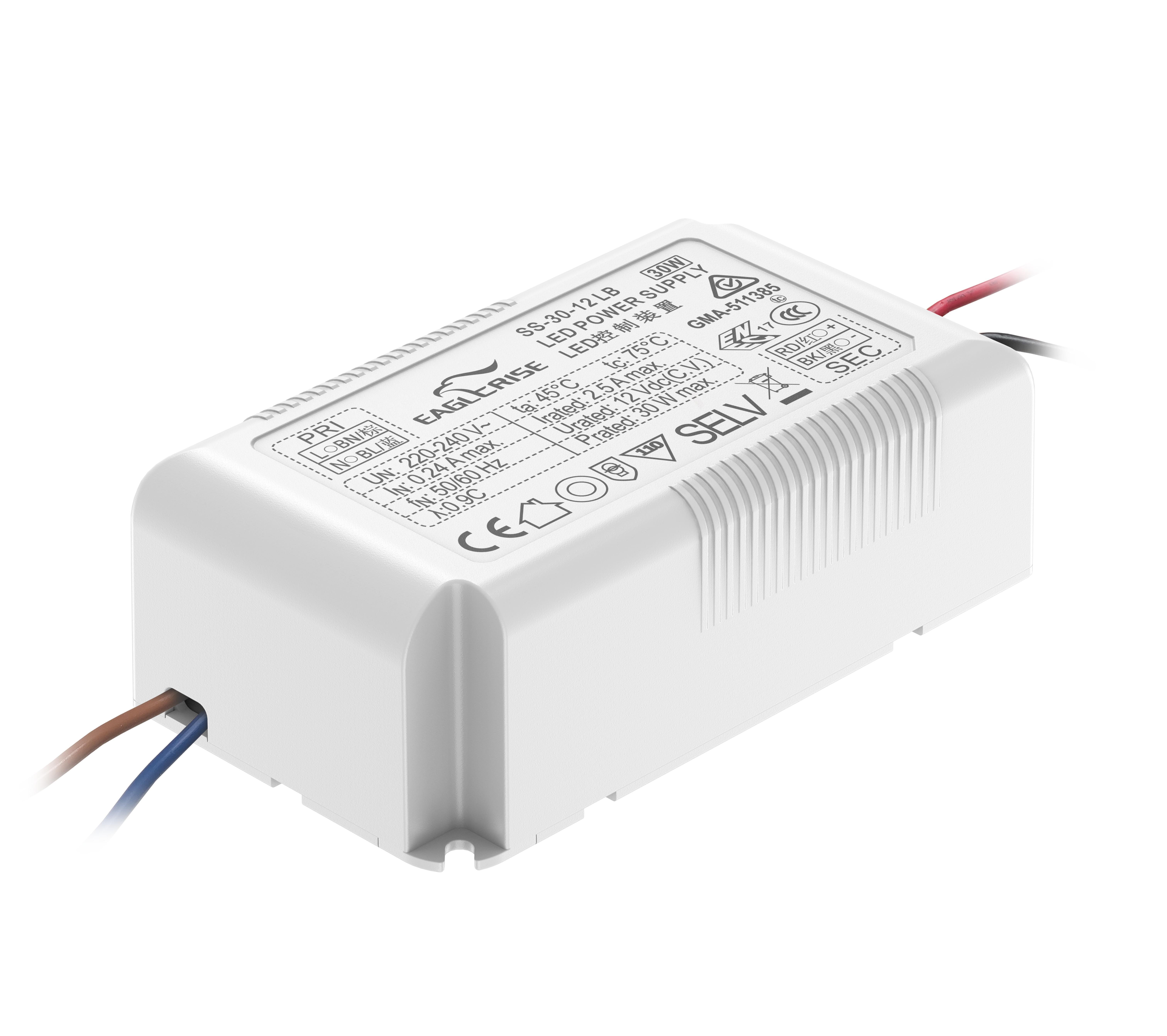

SS-30-XX LB

Product Description:

· Class II，SELV，built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor 0.9C

· Efficiency ≥85%

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
SS-30-12 LB30W220-240VAC0-2.75A12V85%0.9595*53*23mm
SS-30-24 LB30W220-240VAC0-1.25A24V85%0.9595*53*23mm



SS-30-XX LB spec REV A
Download All Files
Related Products

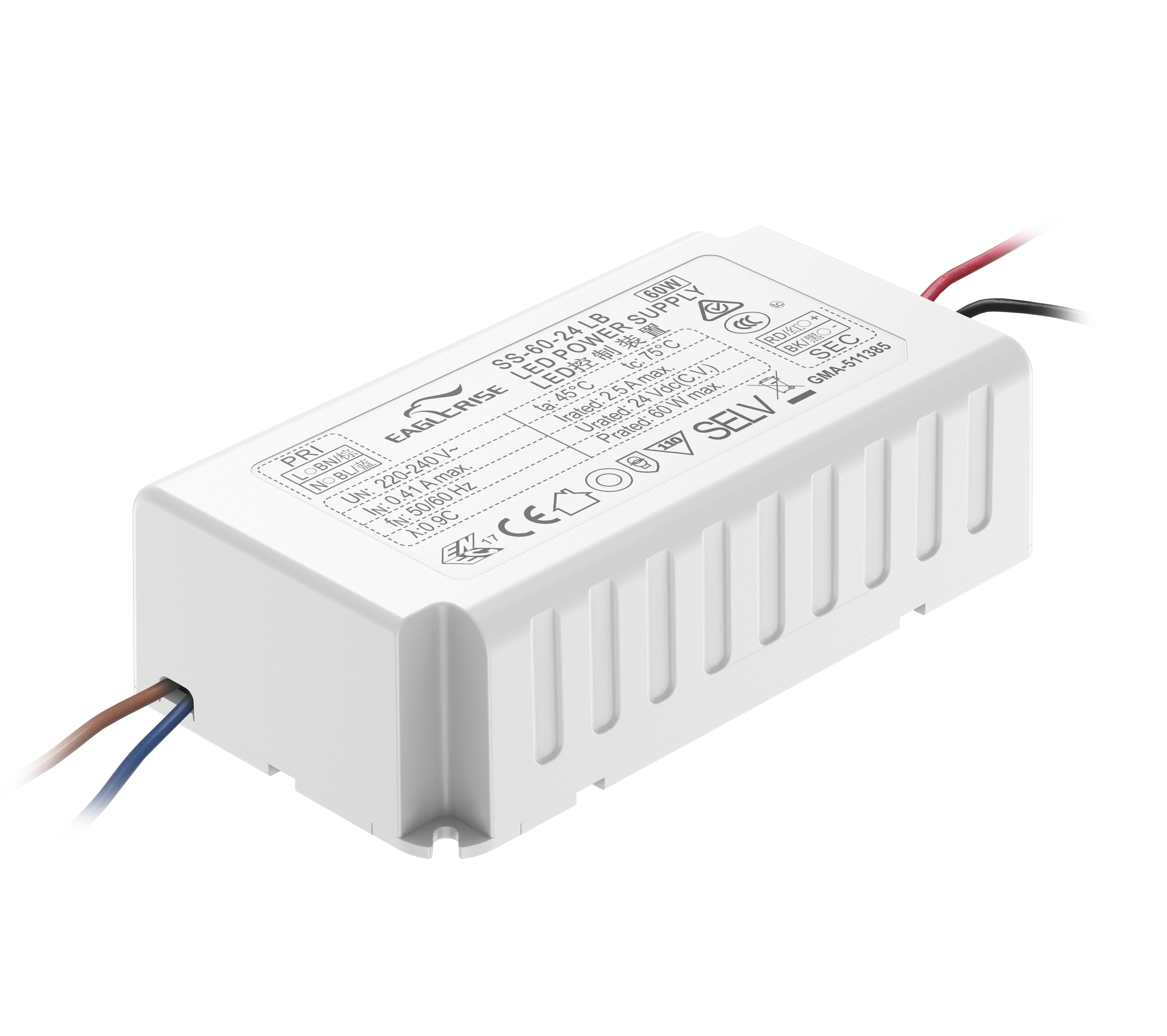

SS-60-24 LB
60W | 24V
SS-60-24 LB
SS-45-XX LB
45W | 12/24V
SS-45-XX LB

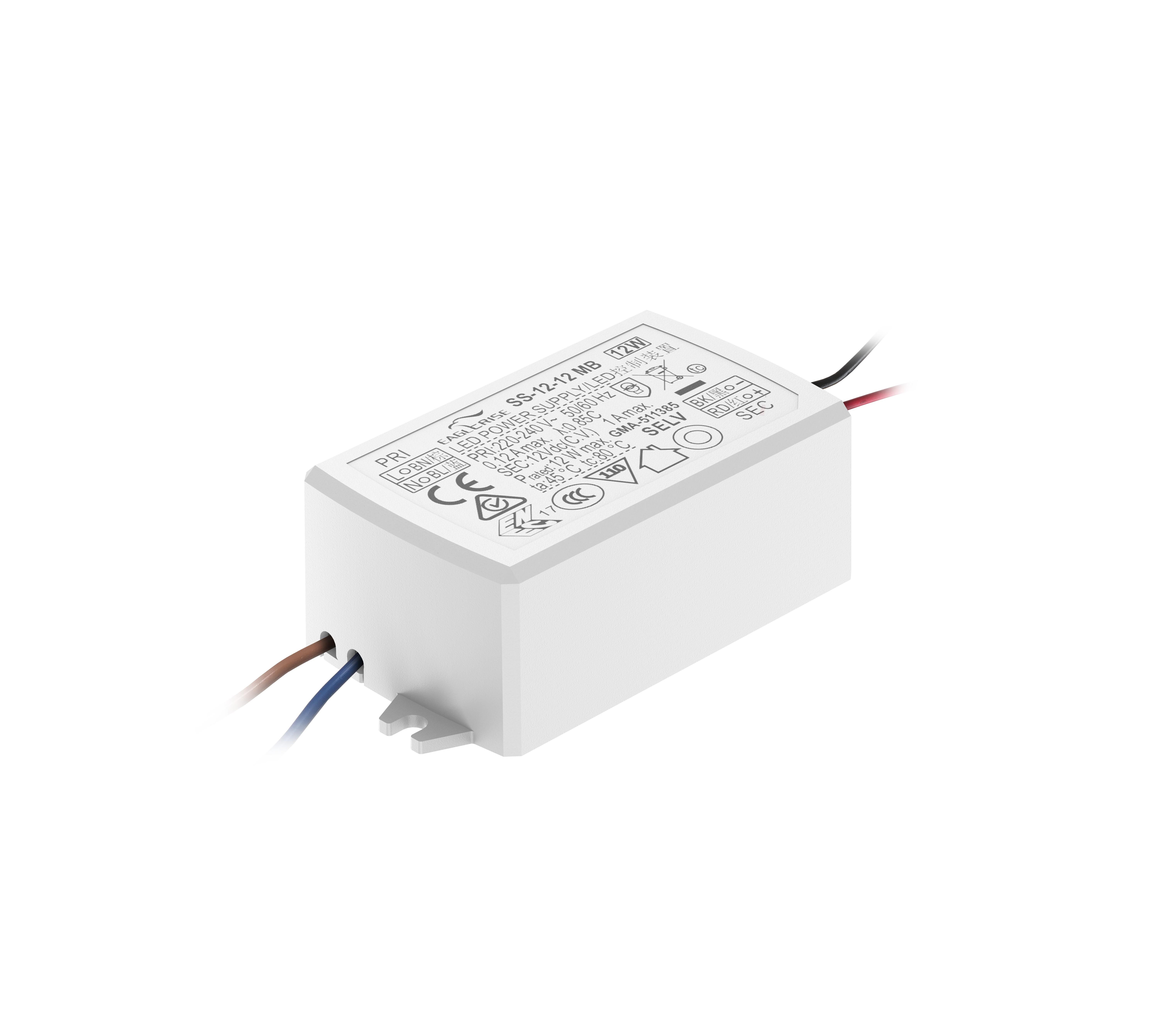

SS-12-XX MB
