Lead Wire
Lead Wire
Home / Products / CV Drivers / ON/OFF / Lead Wire / SS-18-XX MB

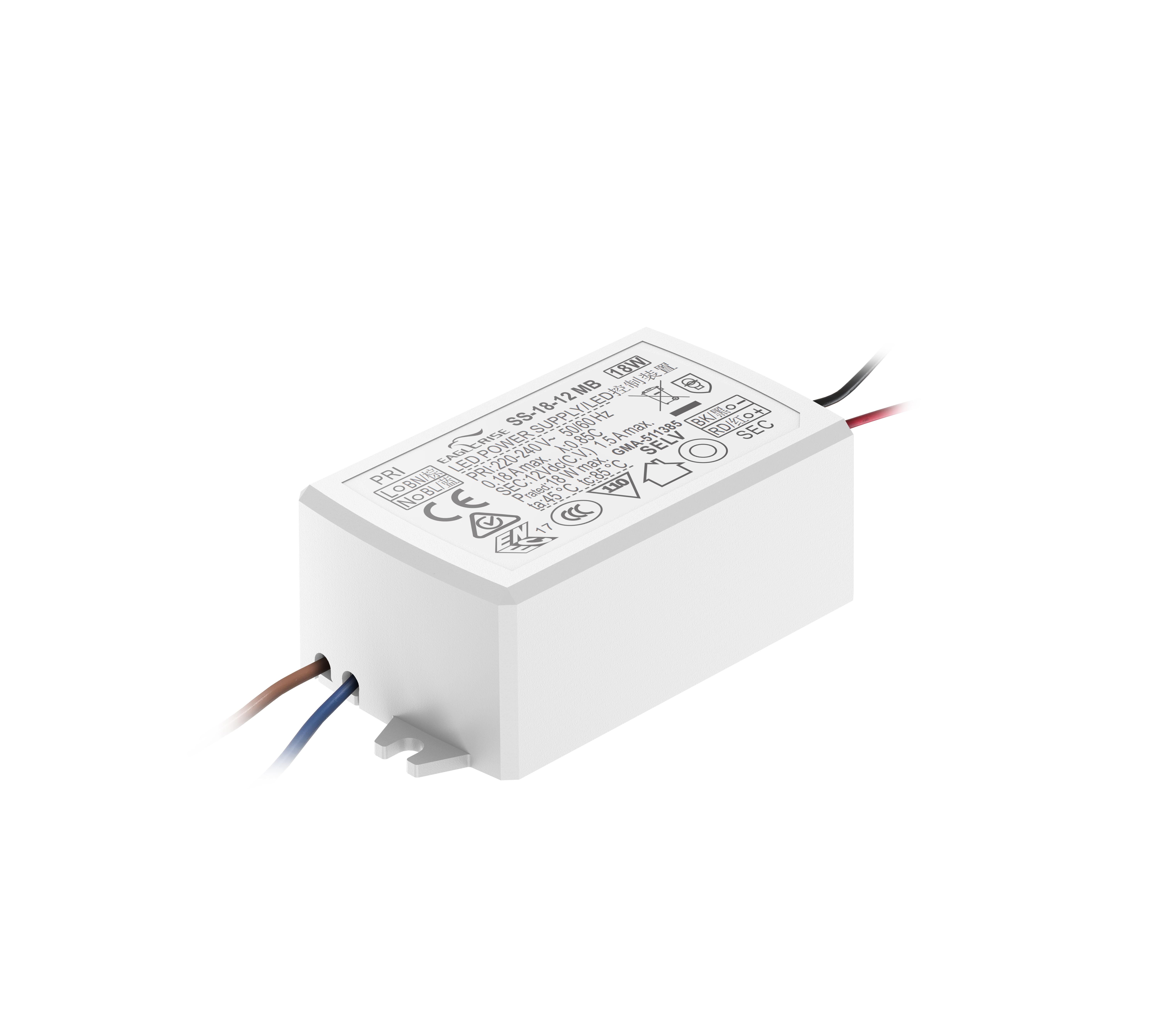

Product Image

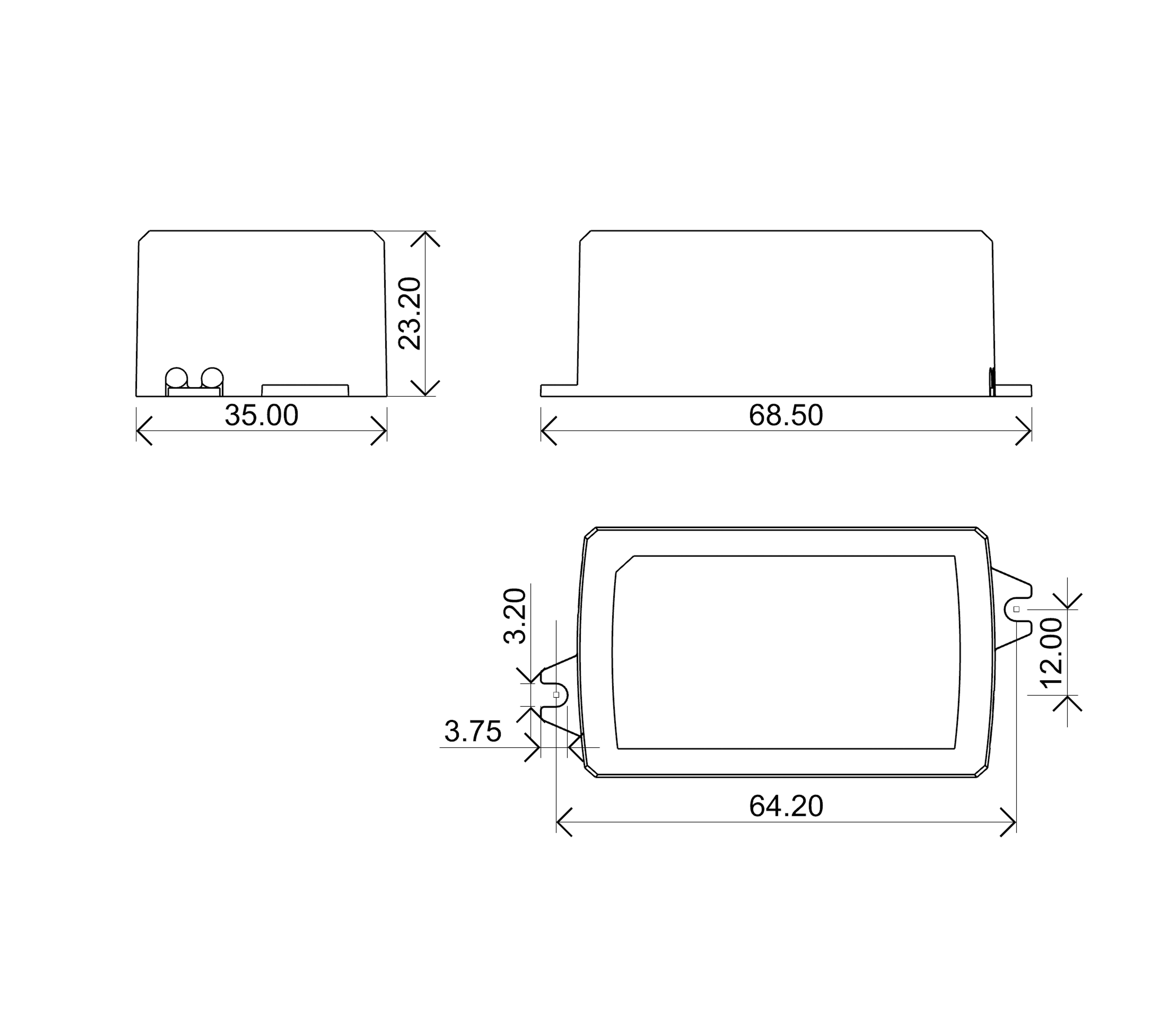

2D Line Drawing
Product Image
2D Line Drawing
18W | 12/24V

SS-18-XX MB

Product Description:

· Class II，SELV，built-in

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor 0.85C

· Efficiency ≥80%

· 5 years warranty


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
SS-18-12 MB18W220-240VAC0-1.5A12V80%0.8568.5*35*23mm
SS-18-24 MB18W220-240VAC0-0.75A24V80%0.8568.5*35*23mm



SS-18-XX MB spec REV A
Download All Files
Related Products
SS-12-XX MB
12W | 12/24V
SS-12-XX MB
SS-6-XX MB
6W | 12/24V
SS-6-XX MB
