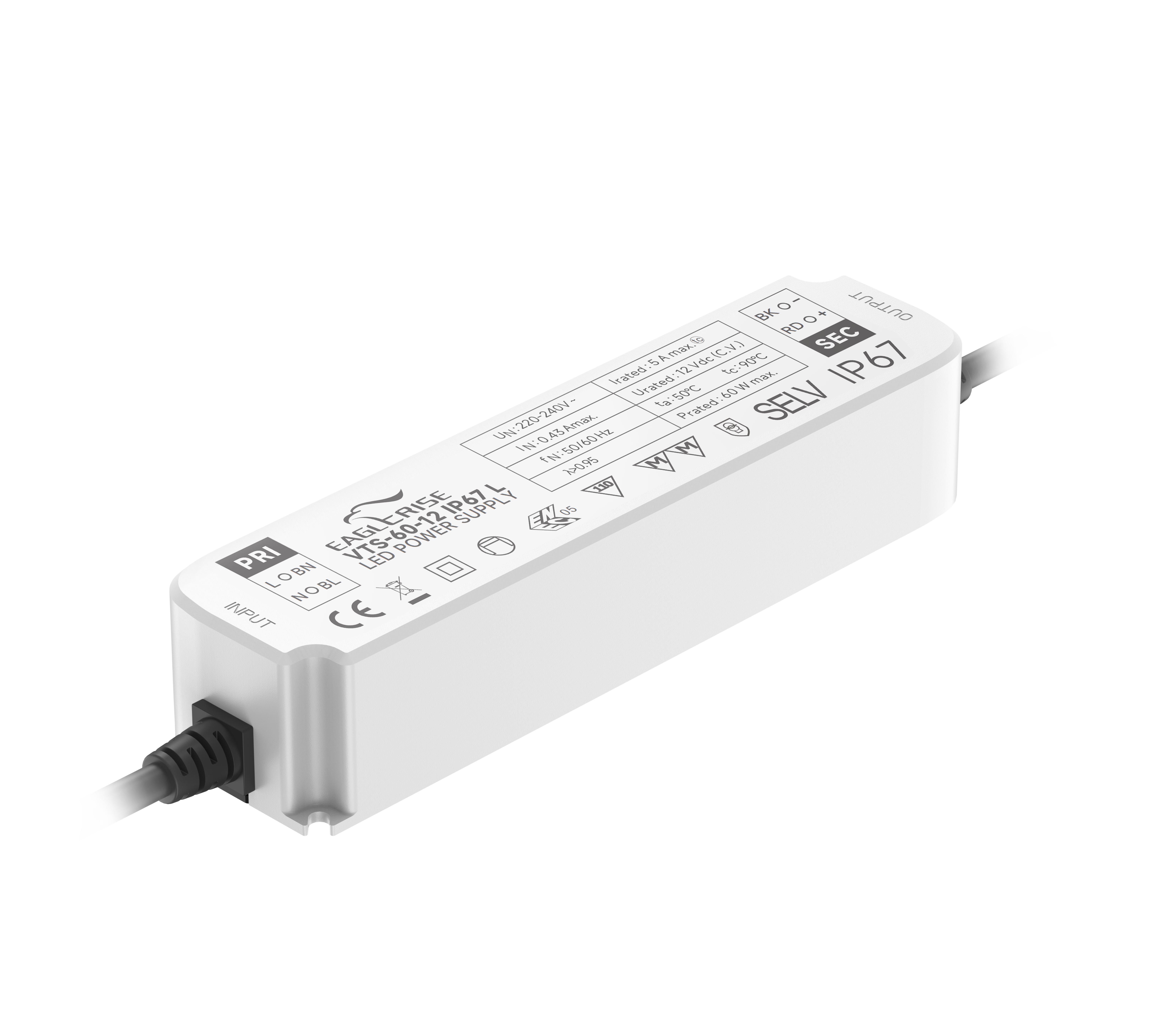

Product Image

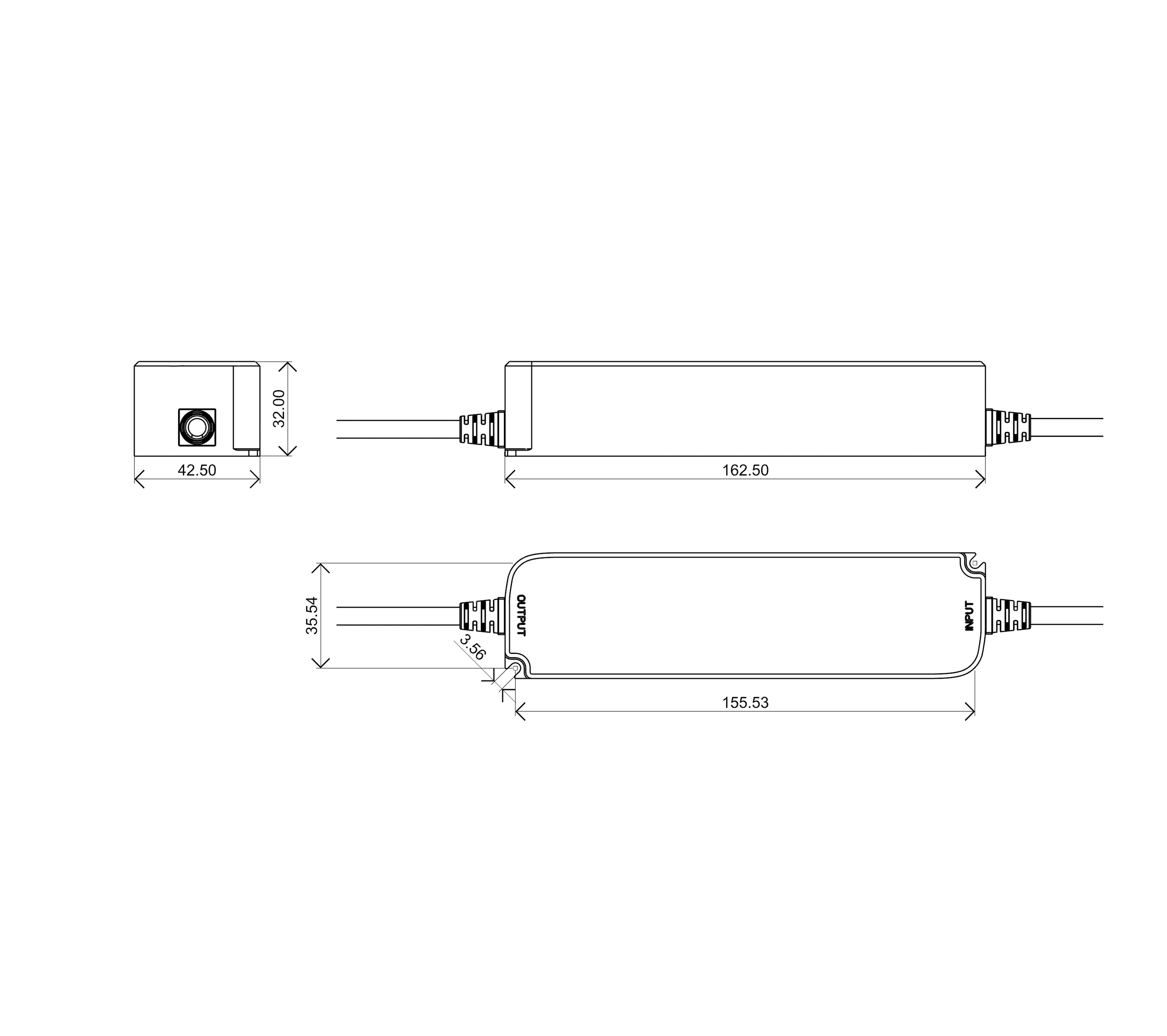

2D Line Drawing
Product Image
2D Line Drawing
60W | 12/24V

VTS-60-XX IP67 L

Product Description:

· High efficiency up to 89%

· Built-in active PFC function

· All-Around Protection: OLP,SCP,OTP

· Compact plastic Case, Free Air Convection

· Waterproof(IP67) and UL Dry/Damp/Wet Location

· Input Surge Protection:2kV line-line

· High Reliability & Long Lifetime & 5 Years Warranty


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
VTS-60-12 IP67 L60W220-240VAC0-5A12V86.50%0.95162*42*32mm
VTS-60-24 IP67 L60W220-240VAC0-2.5A24V89%0.95162*42*32mm



VTS-60-XX IP67 L spec REV A
