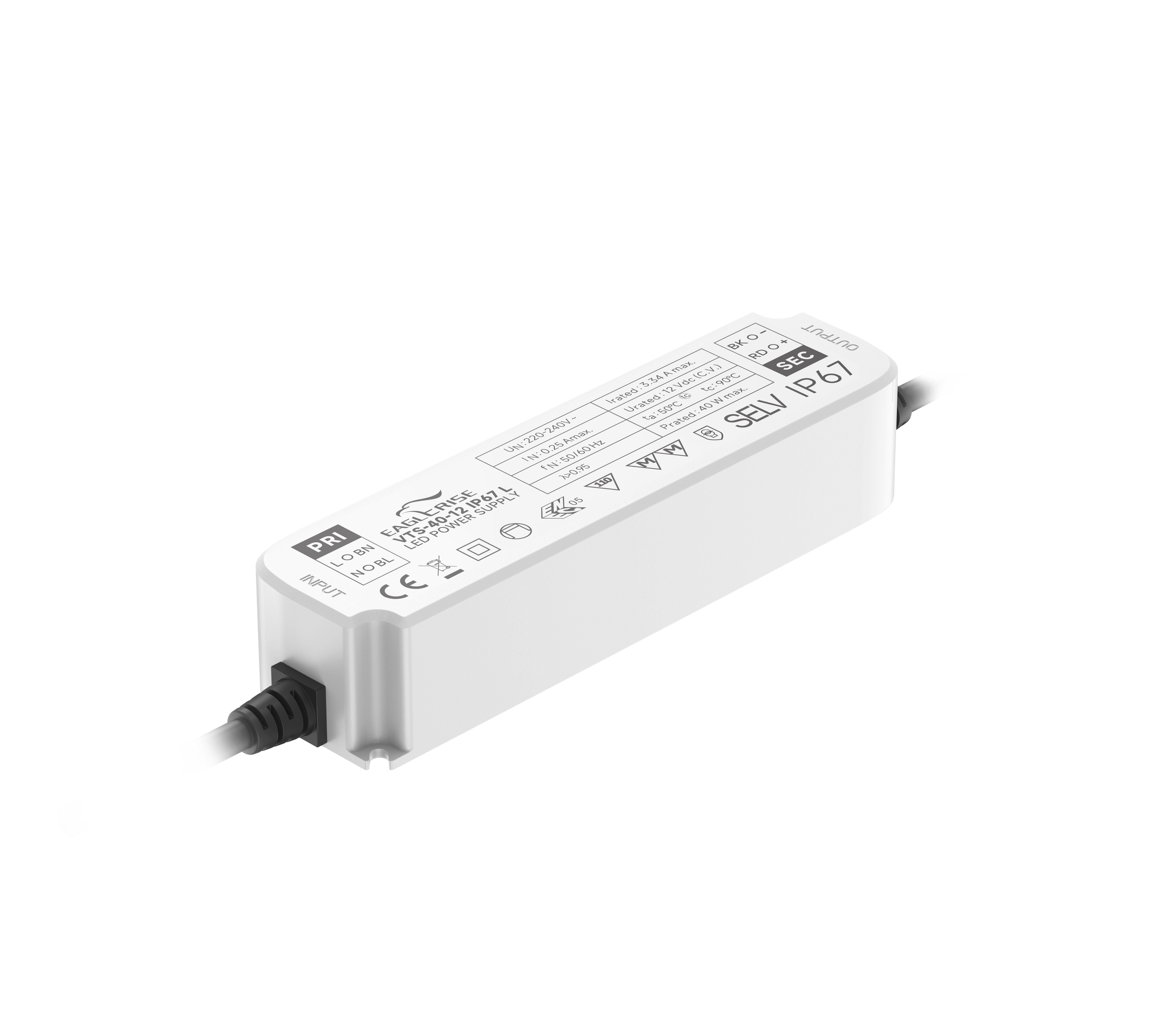

Product Image

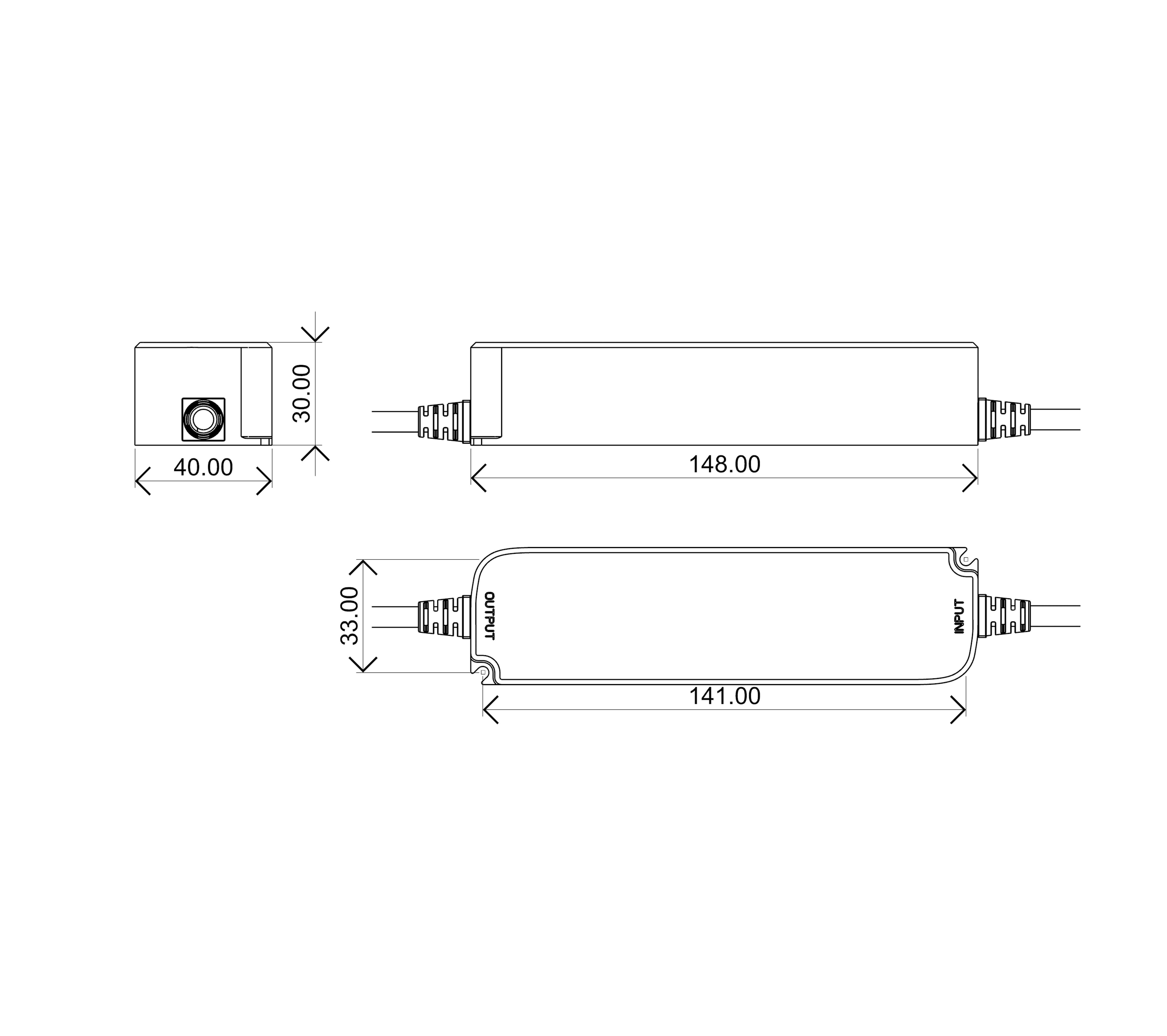

2D Line Drawing
Product Image
2D Line Drawing
40W | 12/24V

VTS-40-XX IP67 L

Product Description:

· High efficiency up to 88%

· Built-in active PFC function

· All-Around Protection: OLP,SCP,OTP

· Compact plastic Case, Free Air Convection

· Waterproof(IP67) and UL Dry/Damp/Wet Location

· Input Surge Protection:2kV line-line

· High Reliability & Long Lifetime & 5 Years Warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
VTS-40-12 IP67 L40W220-240VAC0-3.34A12V86%0.95148*42*30mm
VTS-40-24 IP67 L40W220-240VAC0-1.67A24V88%0.95148*42*30mm


VTS-40-XX IP67 L spec REV A
Download All Files
