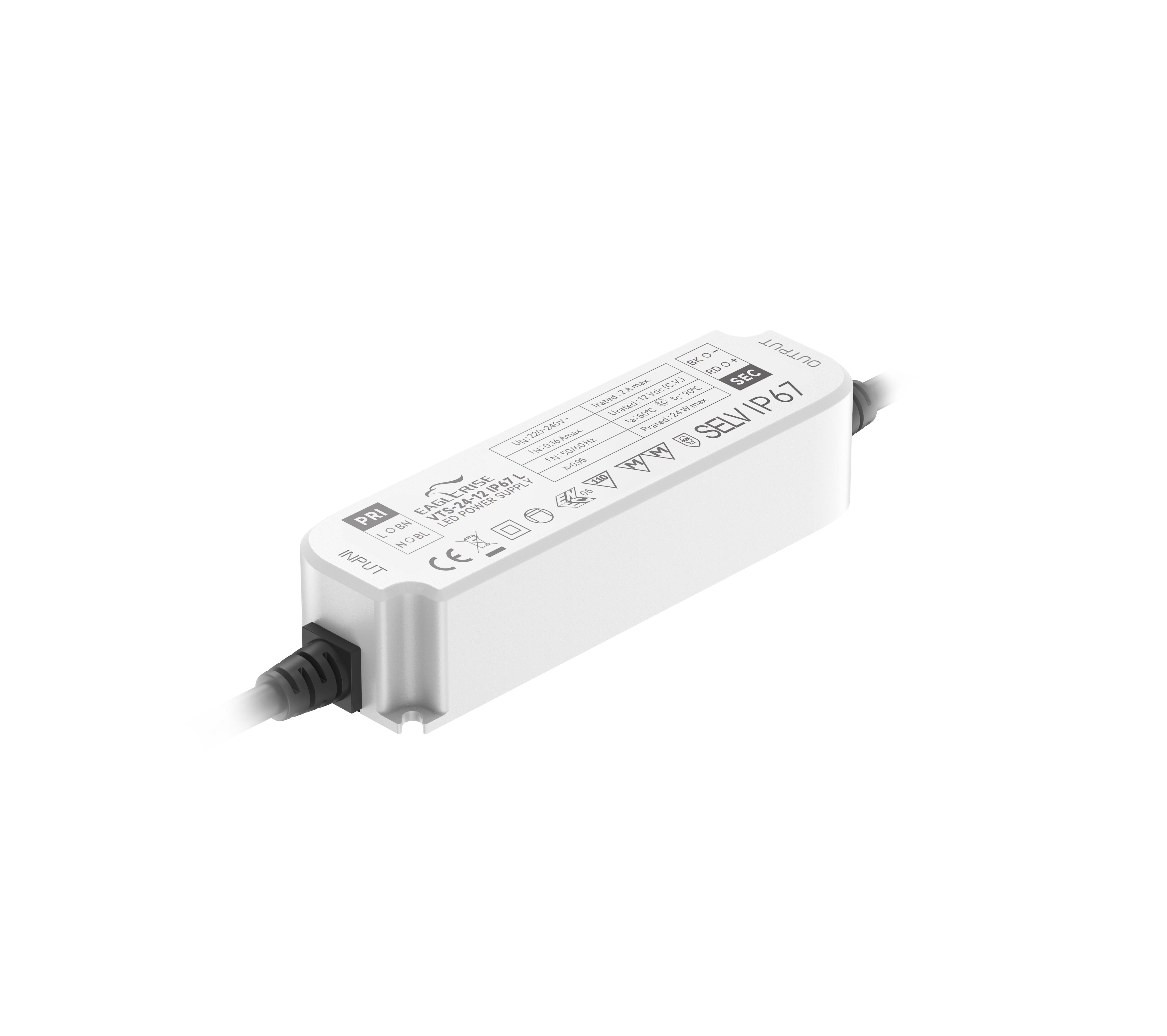

VTS-24-XX IP67 L

Product Description:

· High efficiency up to 86%

· Built-in active PFC function

· All-Around Protection: OLP,SCP,OTP

· Compact plastic Case, Free Air Convection

· Waterproof(IP67) and UL Dry/Damp/Wet Location

· Input Surge Protection:2kV line-line

· High Reliability & Long Lifetime&5YearsWarranty

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
VTS-24-12 IP67 L	24W	220-240VAC	0-2A	12V	86%	0.95	1183526mm
VTS-24-24 IP67 L	24W	220-240VAC	0-1A	24V	86%	0.95	1183526mm

VTS-24-XX IP67 L spec REV A

Download All Files

Related Products

40W | 12/24V

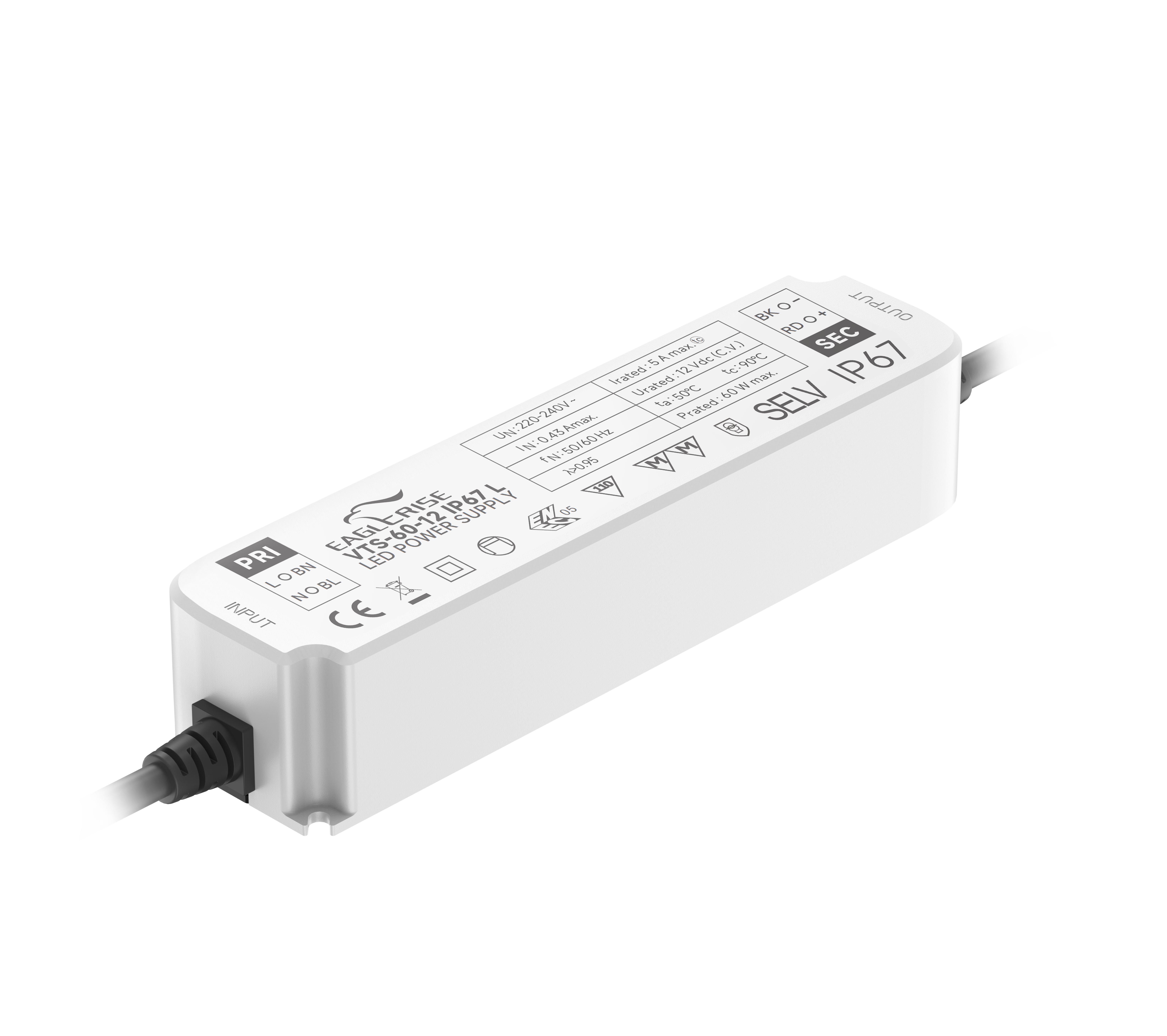

VTS-40-XX IP67 L

60W | 12/24V

VTS-60-XX IP67 L

100W | 12/24V

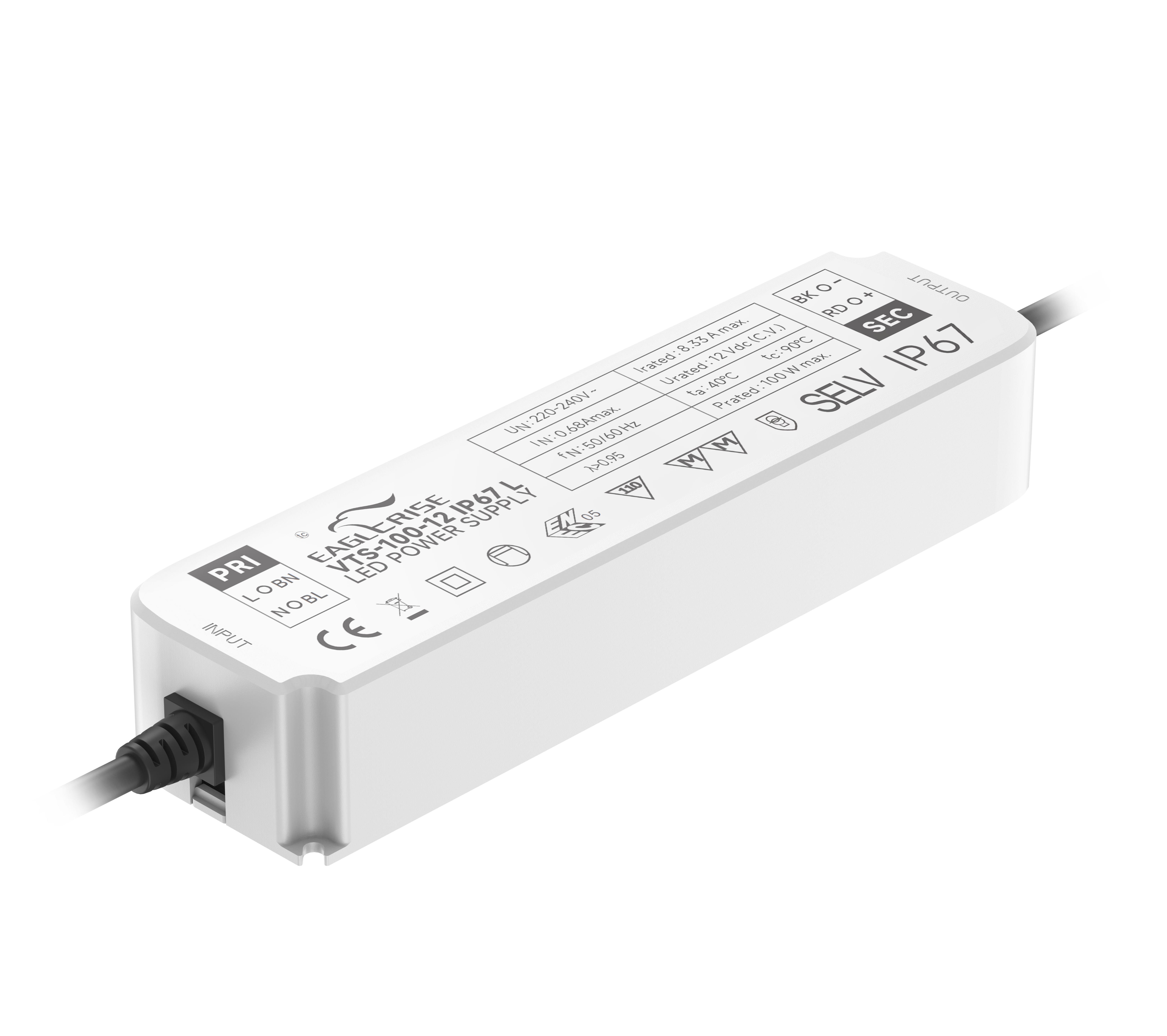

VTS-100-XX IP67 L
