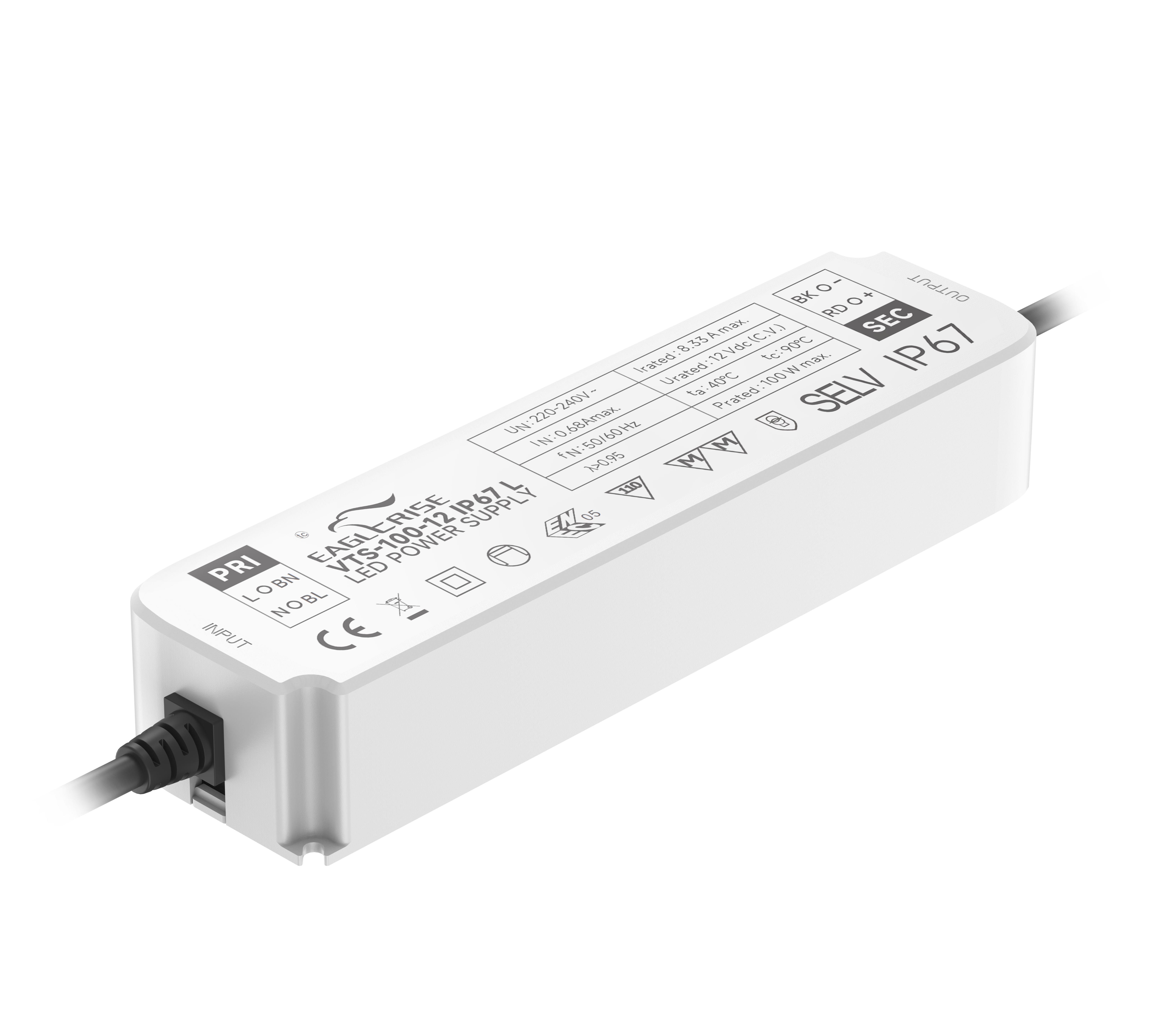

VTS-100-XX IP67 L

Product Description:

· High efficiency up to 89%

· Built-in active PFC function

· All-Around Protection: OLP,SCP,OTP

· Compact plastic Case, Free Air Convection

· Waterproof(IP67) and UL Dry/Damp/Wet Location

· Input Surge Protection:2kV line-line

· High Reliability & Long Lifetime & 5 Years Warranty

Click to Expand

Inquire Now

Models

Datasheet

Certificate

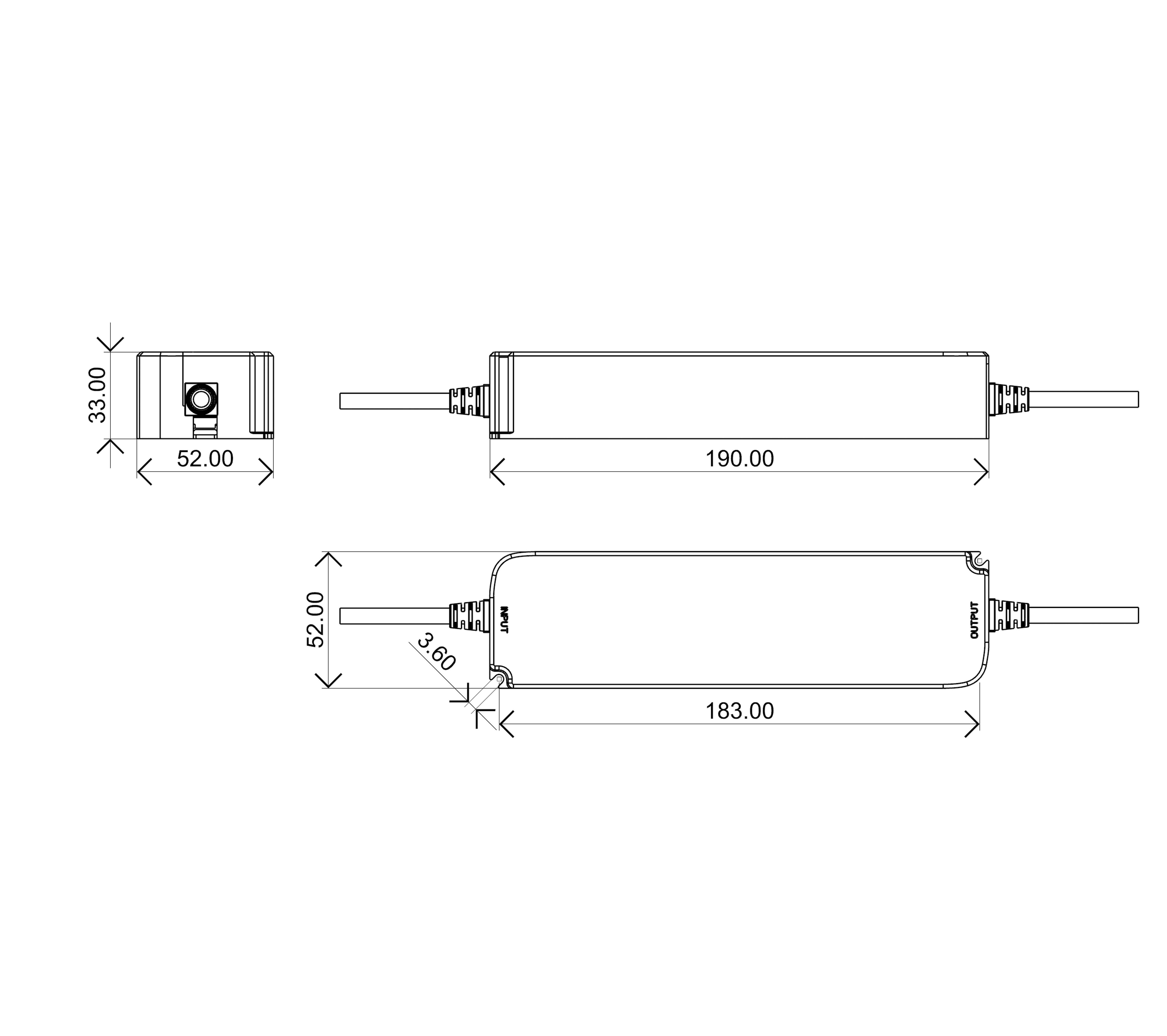

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
VTS-100-12 IP67 L	100W	220-240VAC	0-8.33A	12V	87%	0.95	1905233mm
VTS-100-24 IP67 L	100W	220-240VAC	0-4.17A	24V	89%	0.95	1905233mm

VTS-100-XX IP67 L spec REV A
