Home / Products / Compact Drivers / ON/OFF / Hot Sale / LS-8-XXX SI2 E

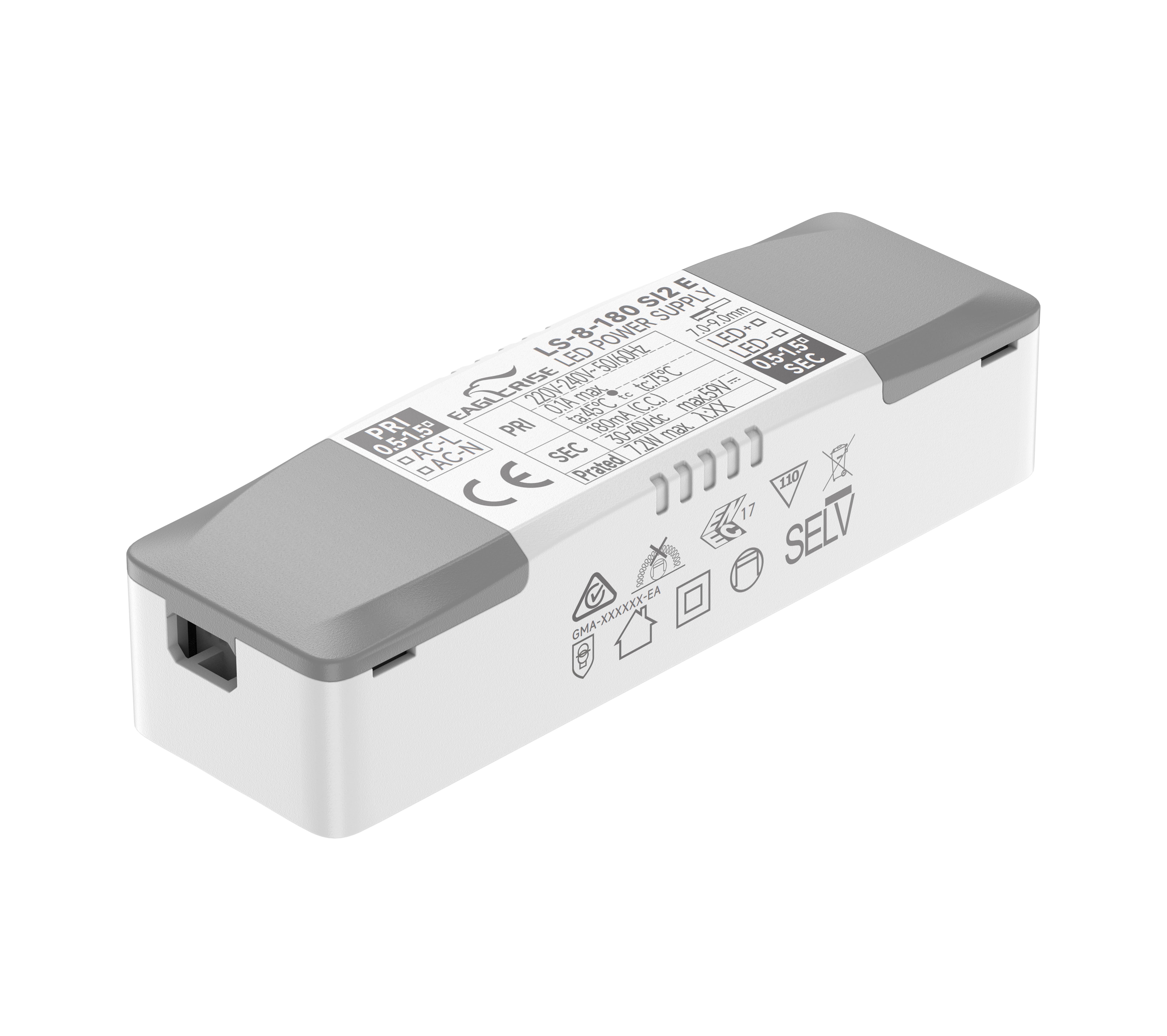

Product Image
2D Line Drawing
Product Image
2D Line Drawing
8W | 70-700mA

LS-8-XXX SI2 E

Product Description:

· Class II，SELV，Independent

· Input Voltage: 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.6C

· Efficiency：≥78%@70-80mA

                     ≥80%@≥100mA

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-8-70 SI2 E8W220-240VAC70mA30-40V78%0.692*28*21mm
LS-8-80 SI2 E8W220-240VAC80mA30-40V78%0.692*28*21mm
LS-8-100 SI2 E8W220-240VAC100mA30-40V80%0.692*28*21mm
LS-8-120 SI2 E8W220-240VAC120mA30-40V80%0.692*28*21mm
LS-8-150 SI2 E8W220-240VAC150mA30-40V80%0.692*28*21mm
LS-8-160 SI2 E8W220-240VAC160mA30-40V80%0.692*28*21mm
LS-8-180 SI2 E8W220-240VAC180mA30-40V80%0.692*28*21mm
LS-8-200 SI2 E8W220-240VAC200mA30-40V80%0.692*28*21mm
LS-8-220 SI2 E8W220-240VAC220mA30-40V80%0.692*28*21mm
LS-8-300 SI2 E8W220-240VAC300mA18-24V80%0.692*28*21mm
LS-8-350 SI2 E8W220-240VAC350mA18-24V80%0.692*28*21mm
LS-8-500 SI2 E8W220-240VAC500mA10-16V80%0.692*28*21mm
LS-8-700 SI2 E8W220-240VAC700mA8-11.4V80%0.692*28*21mm



LS-8-XXX SI2 E spec REV D
