Home / Products / Compact Drivers / ON/OFF / Hot Sale / LS-8-XXX SI E1

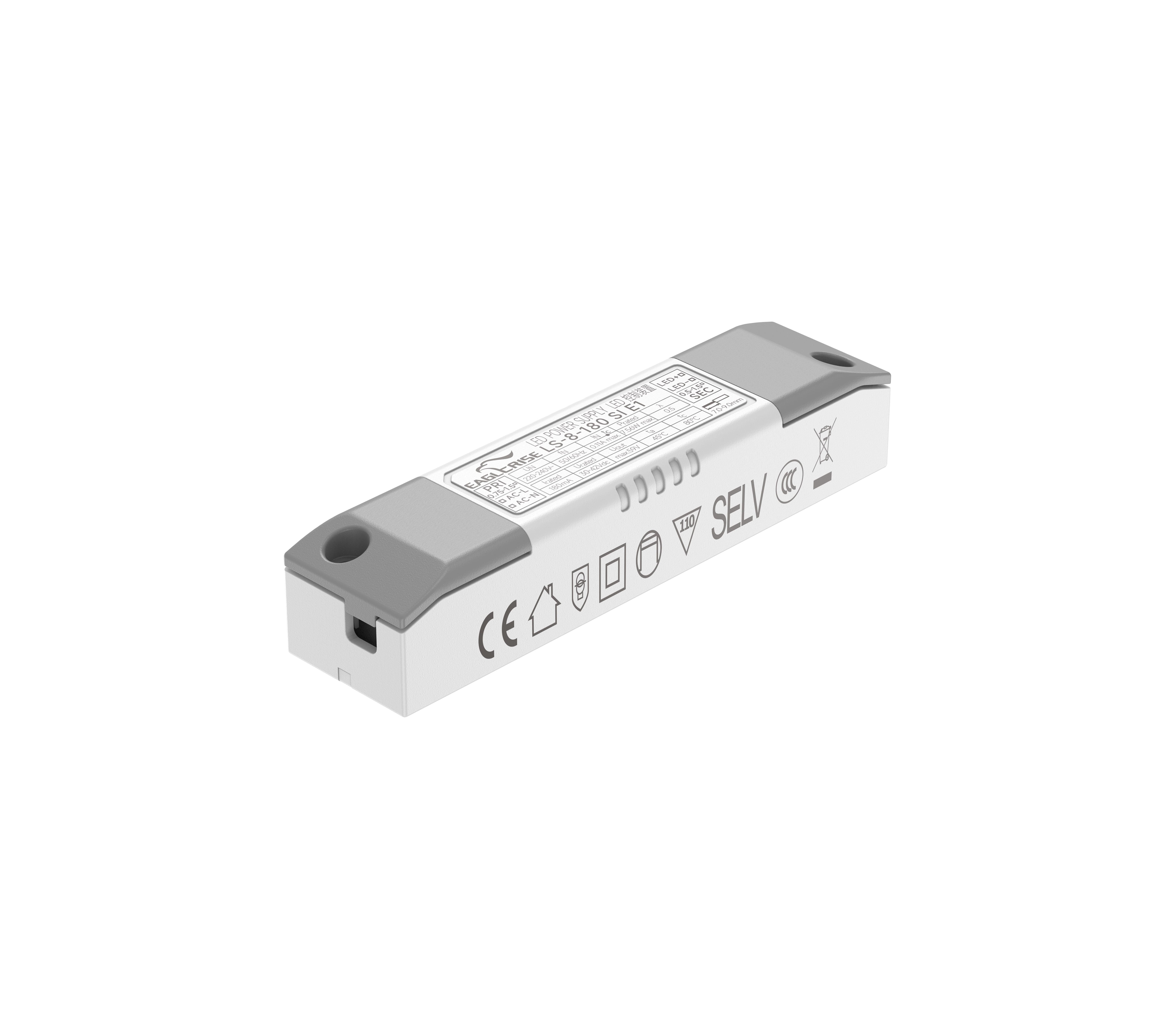

Product Image
2D Line Drawing
Product Image
2D Line Drawing
8W | 180-700mA

LS-8-XXX SI E1

Product Description:

· Class II，SELV，Independent

· Input Voltage: 220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.5C

· Efficiency：≥73%

· 5 years warranty

· IP20


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-8-180 SI E18W220-240VAC180mA30-42V73%0.584*20.5*16.5mm
LS-8-200 SI E18W220-240VAC200mA30-42V73%0.584*20.5*16.5mm
LS-8-220 SI E18W220-240VAC220mA30-42V73%0.584*20.5*16.5mm
LS-8-500 SI E18W220-240VAC500mA30-42V73%0.584*20.5*16.5mm
LS-8-700 SI E18W220-240VAC700mA8-13V73%0.584*20.5*16.5mm



LS-8-XXX SI E1 spec REV C
