Home / Products / Compact Drivers / ON/OFF / Hot Sale / LS-8-XXX CCT SI E

2D Line Drawing

Product Image

2D Line Drawing

8W | 70-220mA

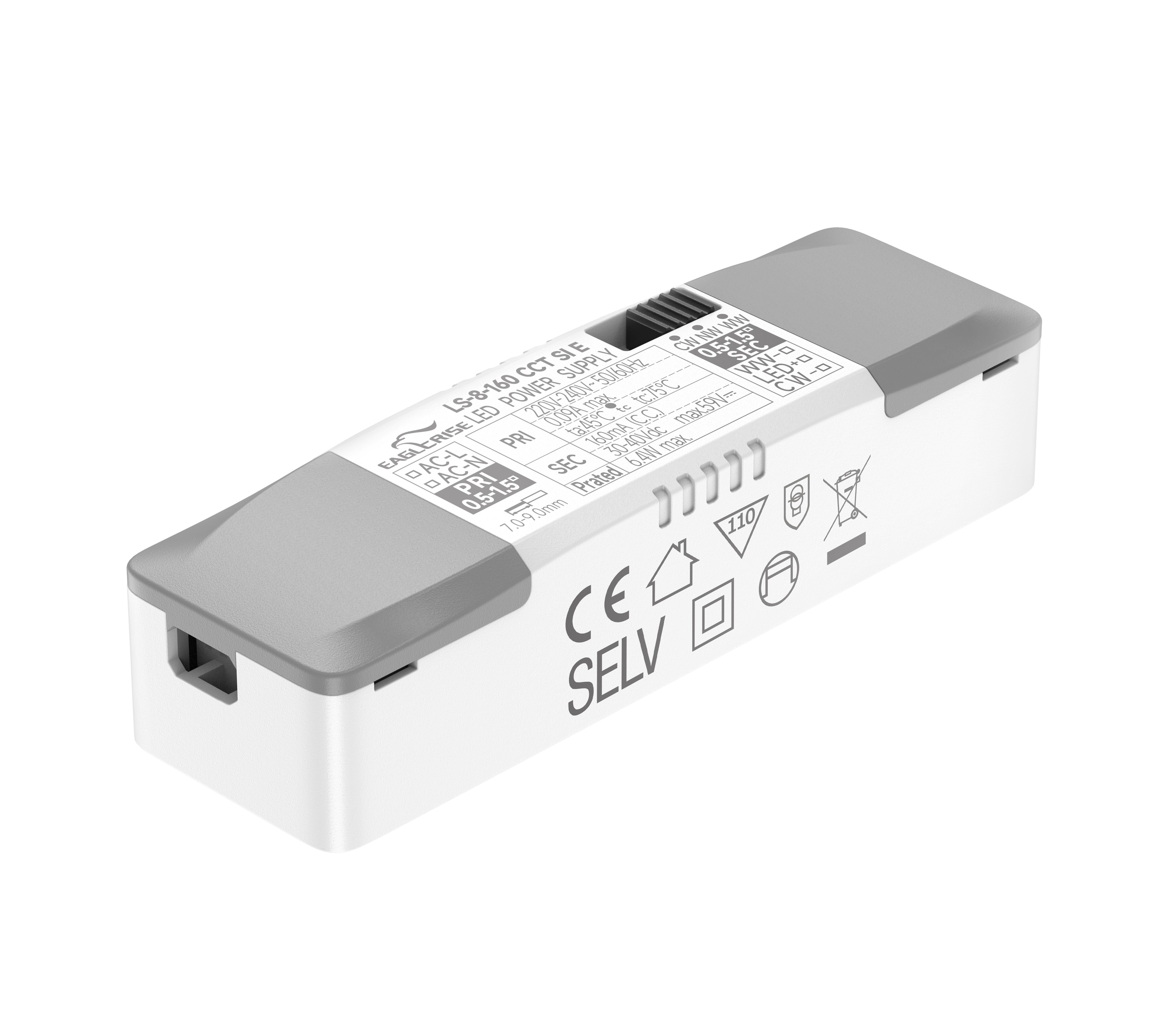

LS-8-XXX CCT SI E

Product Description:

· Class II, SELV, Independent

· Input Voltage: 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.6C

· Efficiency：≥78%@70-80mA

≥80%@≥100mA

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
LS-8-70 CCT SI E	8W	220-240VAC	70mA	30-40V	78%	0.6	922821mm
LS-8-80 CCT SI E	8W	220-240VAC	80mA	30-40V	78%	0.6	922821mm
LS-8-120 CCT SI E	8W	220-240VAC	120mA	30-40V	80%	0.6	922821mm
LS-8-150 CCT SI E	8W	220-240VAC	150mA	30-40V	80%	0.6	922821mm
LS-8-160 CCT SI E	8W	220-240VAC	160mA	30-40V	80%	0.6	922821mm
LS-8-180 CCT SI E	8W	220-240VAC	180mA	30-40V	80%	0.6	922821mm
LS-8-200 CCT SI E	8W	220-240VAC	200mA	30-40V	80%	0.6	922821mm
LS-8-220 CCT SI E	8W	220-240VAC	220mA	30-40V	80%	0.6	922821mm

LS-8-XXX CCT SI E spec REV B
