Home / Products / Compact Drivers / ON/OFF / Hot Sale / LS-30-XXX CCT LI EXC

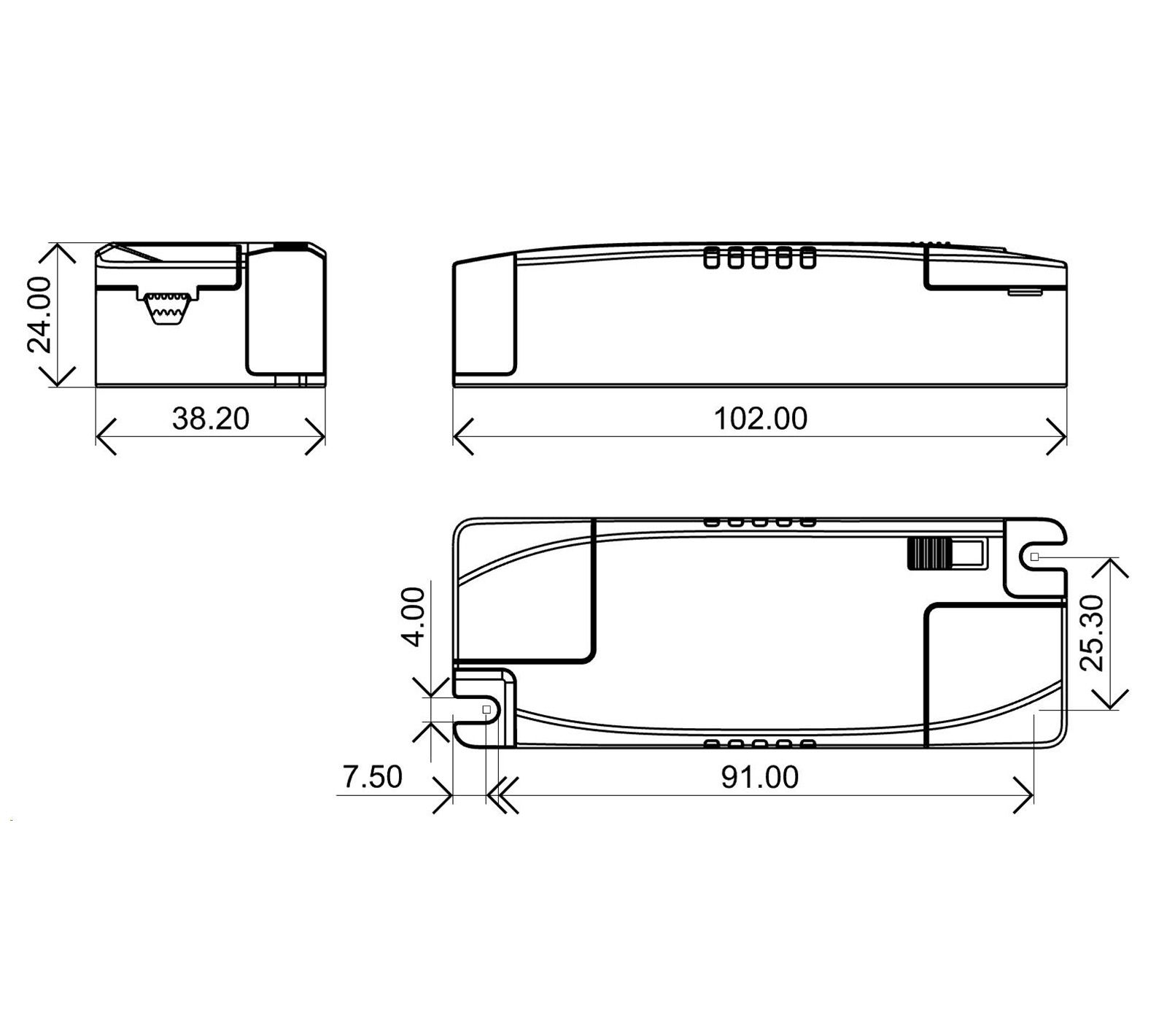

2D Line Drawing

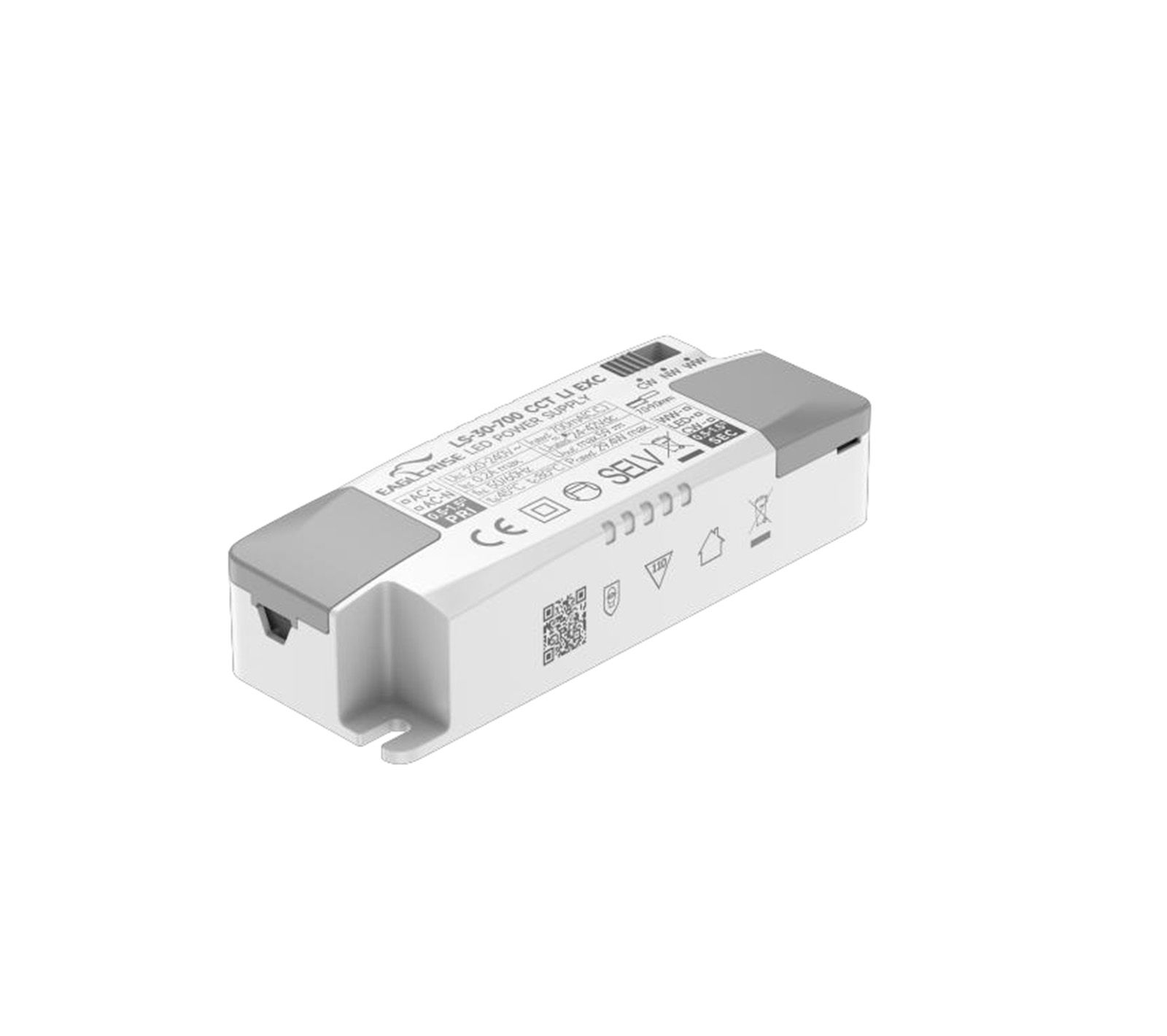

Product Image

2D Line Drawing

30W | 600-800mA

LS-30-XXX CCT LI EXC

Product Description:

· Class II，SELV，independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95

· Efficiency：87-89%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
LS-30-600 CCT LI EXC	30W	220-240VAC	600mA	24-42V	87%	0.95	1023825mm
LS-30-650 CCT LI EXC	30W	220-240VAC	650mA	24-42V	87%	0.95	1023825mm
LS-30-700 CCT LI EXC	30W	220-240VAC	700mA	24-42V	87%	0.95	1023825mm
LS-30-750 CCT LI EXC	30W	220-240VAC	750mA	24-42V	87%	0.95	1023825mm
LS-30-800 CCT LI EXC	30W	220-240VAC	800mA	24-42V	87%	0.95	1023825mm

LS-30-XXX CCT LI EXC spec REV A
