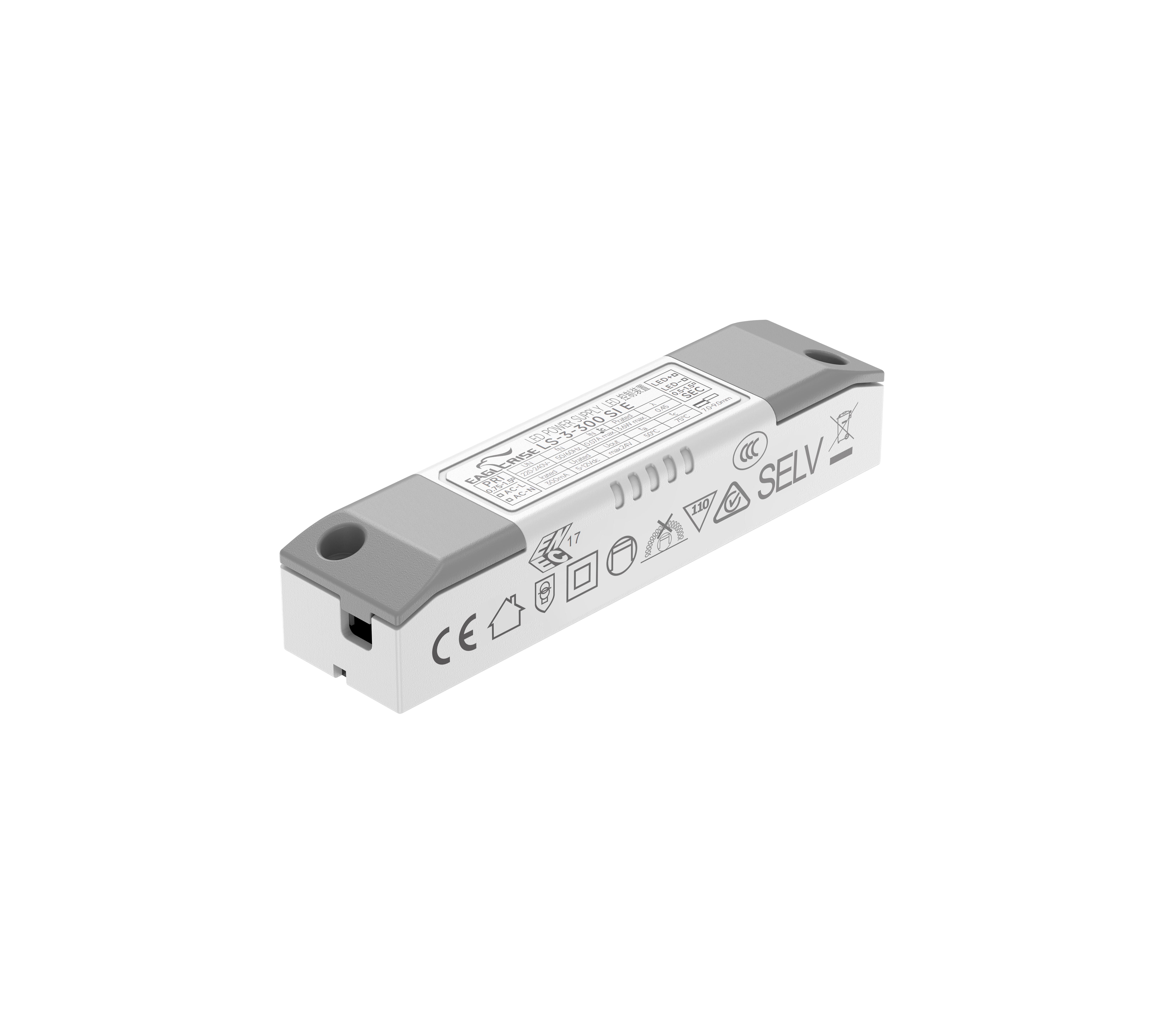

Product Image

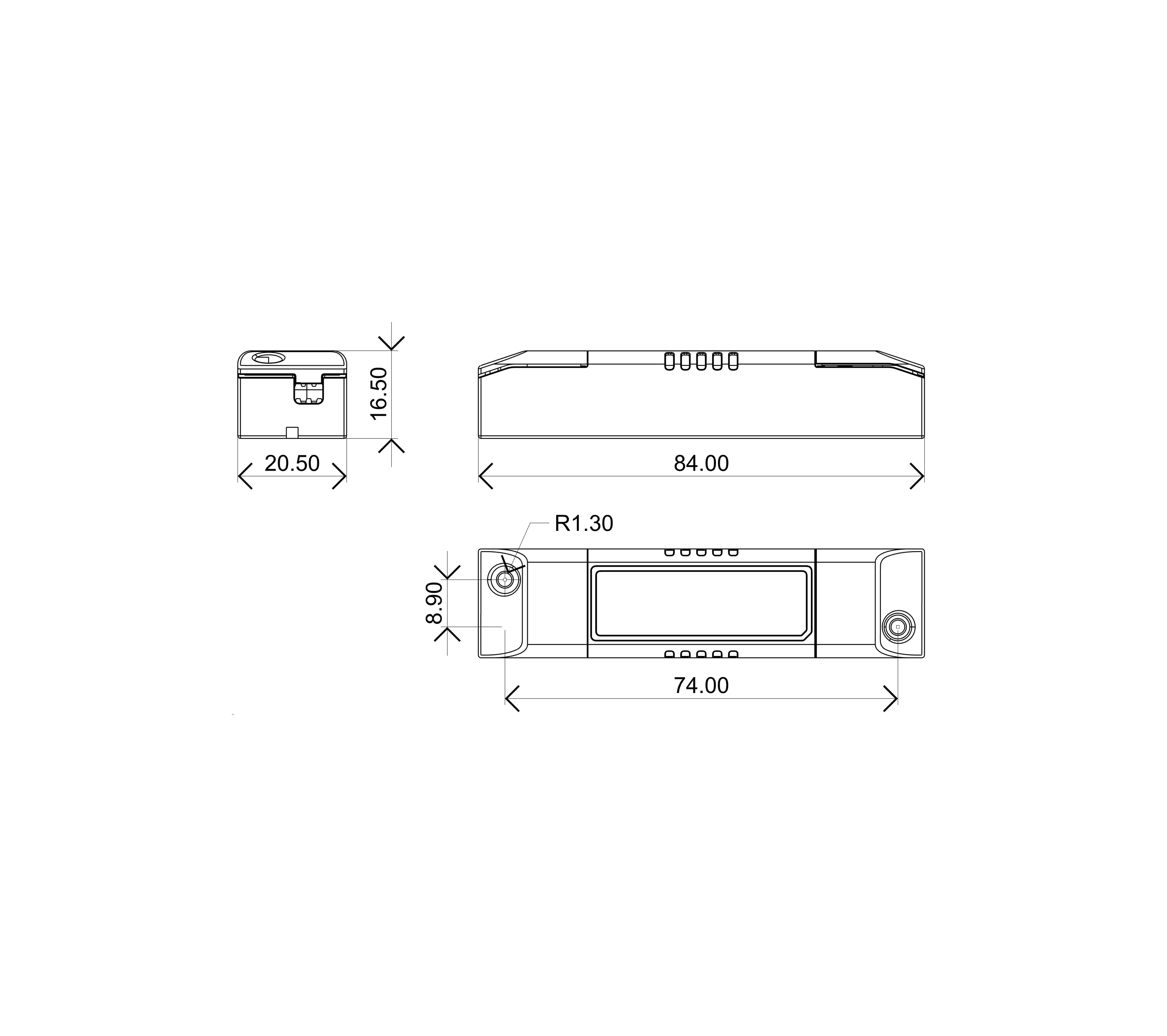

2D Line Drawing
Product Image
2D Line Drawing
3W | 150-700mA

LS-3-XXX SI E

Product Description:

· Class II，SELV，Independent

· Input Voltage: 220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.45

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-3-150 SI E3W220-240VAC150mA5-12V68%0.4584*20.5*16.5mm
LS-3-300 SI E3W220-240VAC300mA5-12V73%0.4584*20.5*16.5mm
LS-3-350 SI E3W220-240VAC350mA5-12V73%0.4584*20.5*16.5mm
LS-3-500 SI E3W220-240VAC500mA2.5-4.5V73%0.4584*20.5*16.5mm
LS-3-700 SI E3W220-240VAC700mA2.5-4.5V71%0.4584*20.5*16.5mm



LS-3-XXX SI E spec REV D
Download All Files
