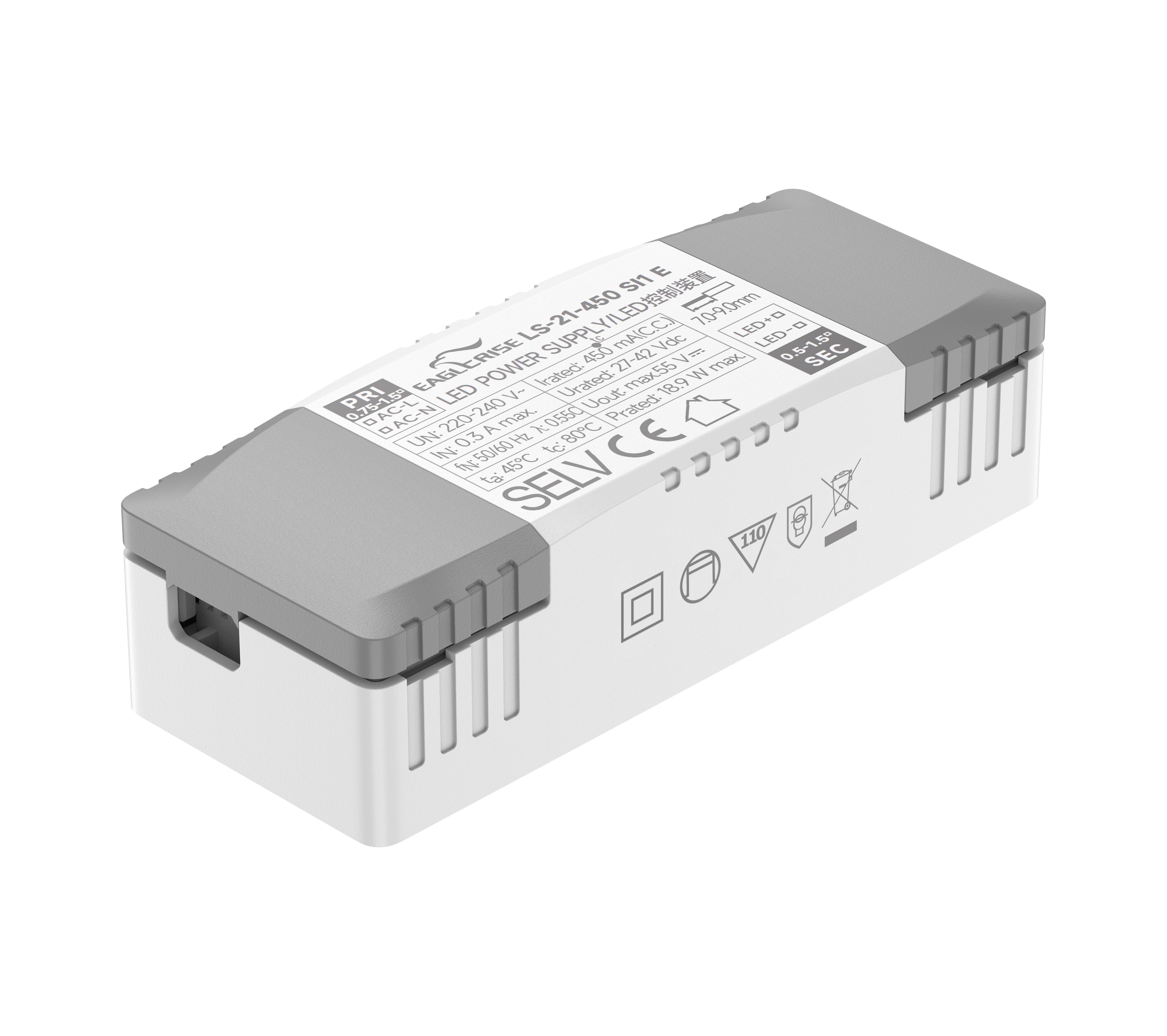

Product Image

2D Line Drawing

21W | 300-700mA

LS-21-XXX SI1 E

Product Description:

· Class II，SELV，Independent

· Input Voltage: 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.6C@300-400mA,600-700mA

0.55C@450-550mA

· Efficiency：≥85%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
LS-21-300 SI1 E	21W	220-240VAC	300mA	40-70V	85%	0.6	923625mm
LS-21-350 SI1 E	21W	220-240VAC	350mA	42-60V	85%	0.6	923625mm
LS-21-400 SI1 E	21W	220-240VAC	400mA	30-42V	85%	0.6	923625mm
LS-21-450 SI1 E	21W	220-240VAC	450mA	30-42V	85%	0.6	923625mm
LS-21-500 SI1 E	21W	220-240VAC	500mA	30-42V	85%	0.6	923625mm
LS-21-550 SI1 E	21W	220-240VAC	550mA	30-40V	85%	0.6	923625mm
LS-21-600 SI1 E	21W	220-240VAC	600mA	27-39V	85%	0.6	923625mm
LS-21-650 SI1 E	21W	220-240VAC	650mA	20-32V	85%	0.6	923625mm
LS-21-700 SI1 E	21W	220-240VAC	700mA	18-30V	85%	0.6	923625mm

LS-21-XXX SI1 E spec REV D
