Home / Products / Compact Drivers / ON/OFF / Hot Sale / LS-21-XXX ON/OFF SI E
Product Image
2D Line Drawing
Product Image
2D Line Drawing
21W | 400-700mA

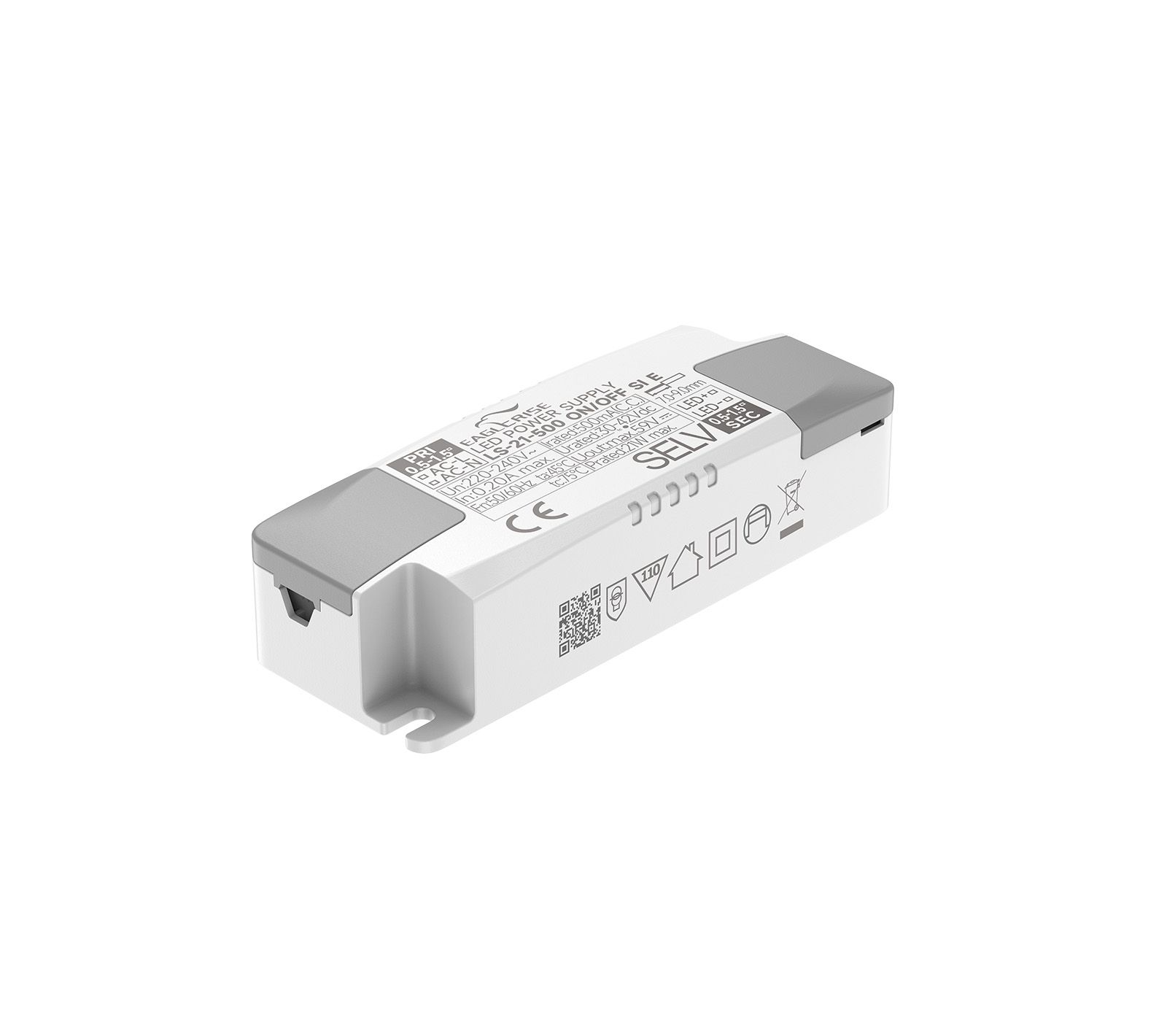

LS-21-XXX ON/OFF SI E

Product Description:

· For luminaries of protection Class II， SELV，Independent

· Input Voltage 220-240VAC

· Protections: OLP/OVP/SCP/OTP

· Power Factor：0.6

· Efficiency：>86%

· 5 years warranty

Click to Expand
Inquire Now
Models
Datasheet
Certificate


ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-21-400 ON/OFF SI E21W220-240VAC400mA30-42V86%0.692*36*25mm
LS-21-450 ON/OFF SI E21W220-240VAC450mA30-42V86%0.692*36*25mm
LS-21-500 ON/OFF SI E21W220-240VAC500mA30-42V86%0.692*36*25mm
LS-21-550 ON/OFF SI E21W220-240VAC550mA30-38V86%0.692*36*25mm
LS-21-600 ON/OFF SI E21W220-240VAC600mA30-36V86%0.692*36*25mm
LS-21-700 ON/OFF SI E21W220-240VAC700mA22-30V86%0.692*36*25mm


LS-21-XXX ON OFF SI E spec REV C
Download All Files
