Home / Products / Compact Drivers / ON/OFF / Hot Sale / LS-21-XXX CCT SI E

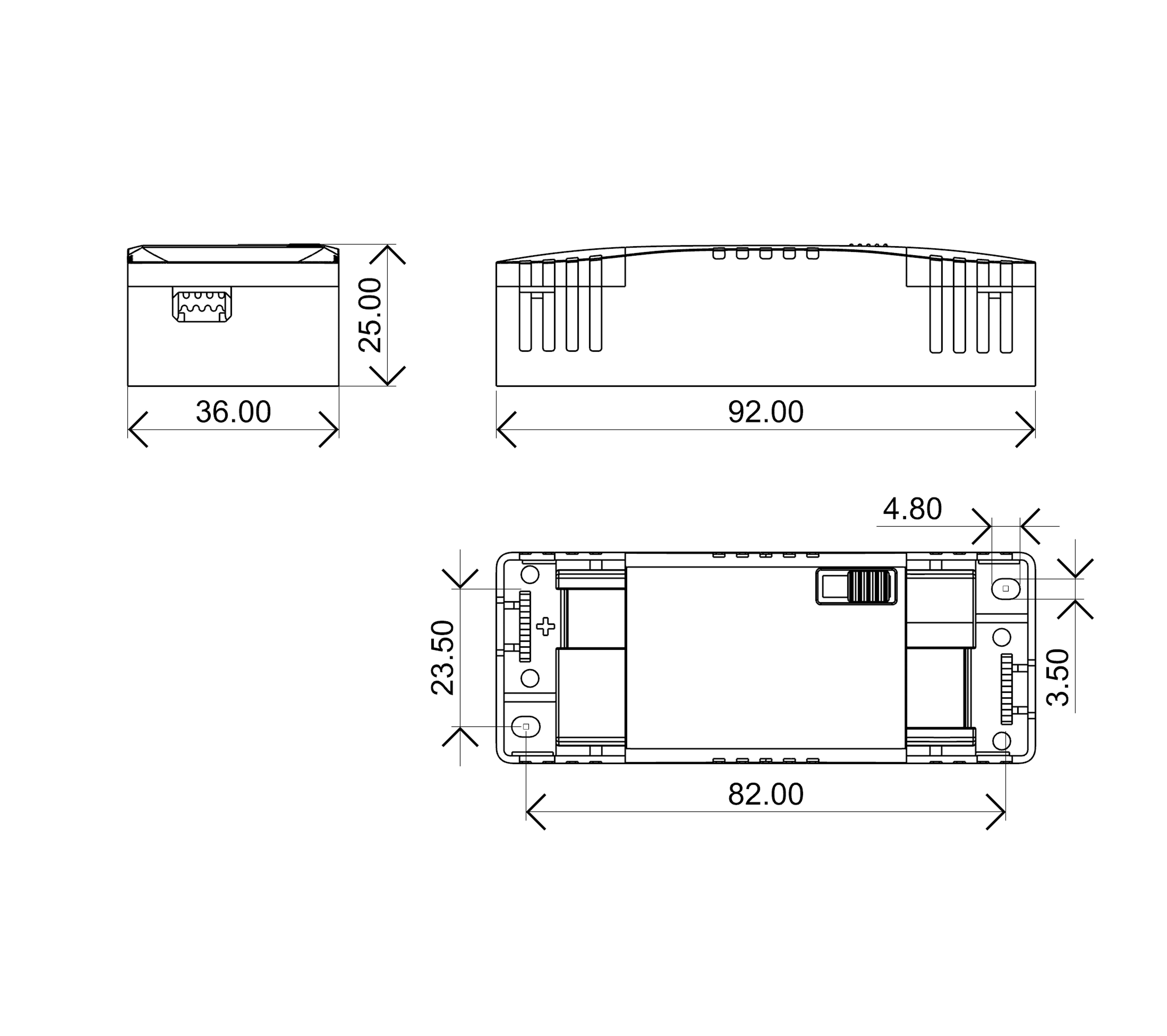

2D Line Drawing

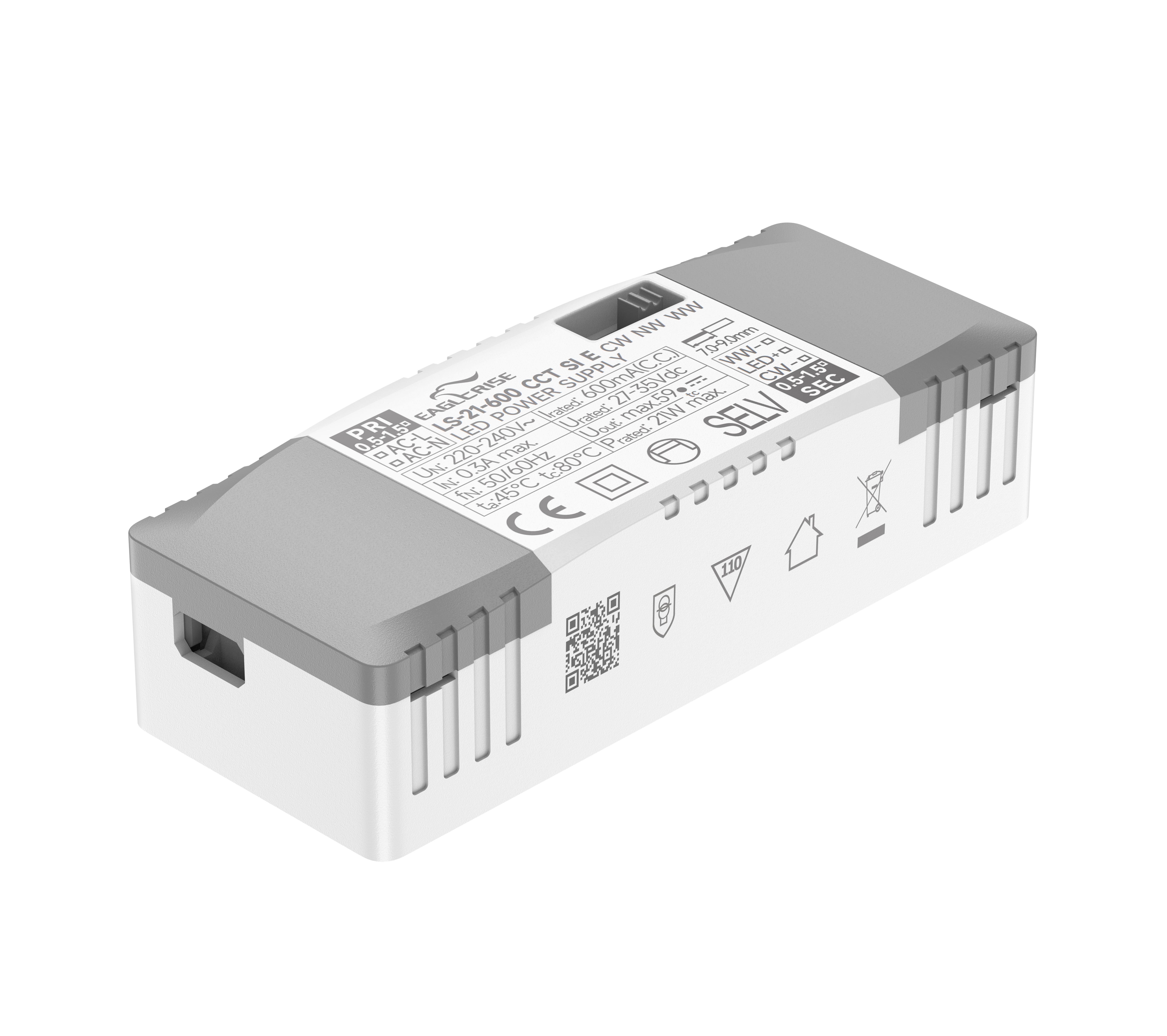

Product Image

2D Line Drawing

21W | 300-700mA

LS-21-XXX CCT SI E

Product Description:

· Class II, SELV, Independent

· Input Voltage: 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.6C

· Efficiency：≥85%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
LS-21-300 CCT SI E	21W	220-240VAC	300mA	40-70V	85%	0.6	923625mm
LS-21-350 CCT SI E	21W	220-240VAC	350mA	42-60V	85%	0.6	923625mm
LS-21-400 CCT SI E	21W	220-240VAC	400mA	30-42V	85%	0.6	923625mm
LS-21-450 CCT SI E	21W	220-240VAC	450mA	30-42V	85%	0.6	923625mm
LS-21-500 CCT SI E	21W	220-240VAC	500mA	30-42V	85%	0.6	923625mm
LS-21-550 CCT SI E	21W	220-240VAC	550mA	30-40V	85%	0.6	923625mm
LS-21-600 CCT SI E	21W	220-240VAC	600mA	27-35V	85%	0.6	923625mm
LS-21-650 CCT SI E	21W	220-240VAC	650mA	20-32V	85%	0.6	923625mm
LS-21-700 CCT SI E	21W	220-240VAC	700mA	18-30V	85%	0.6	923625mm

LS-21-XXX CCT SI E spec REV A
