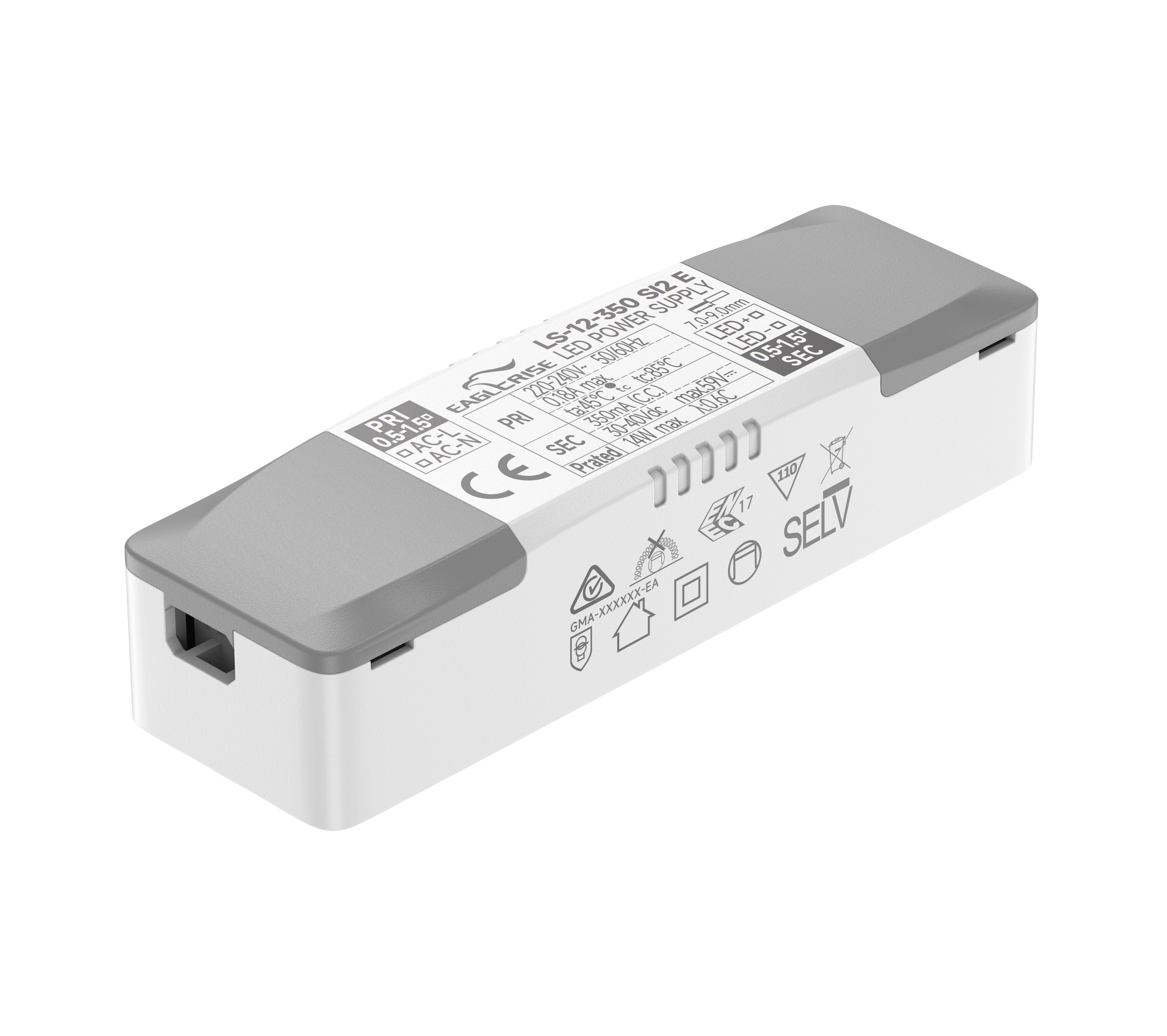

Product Image

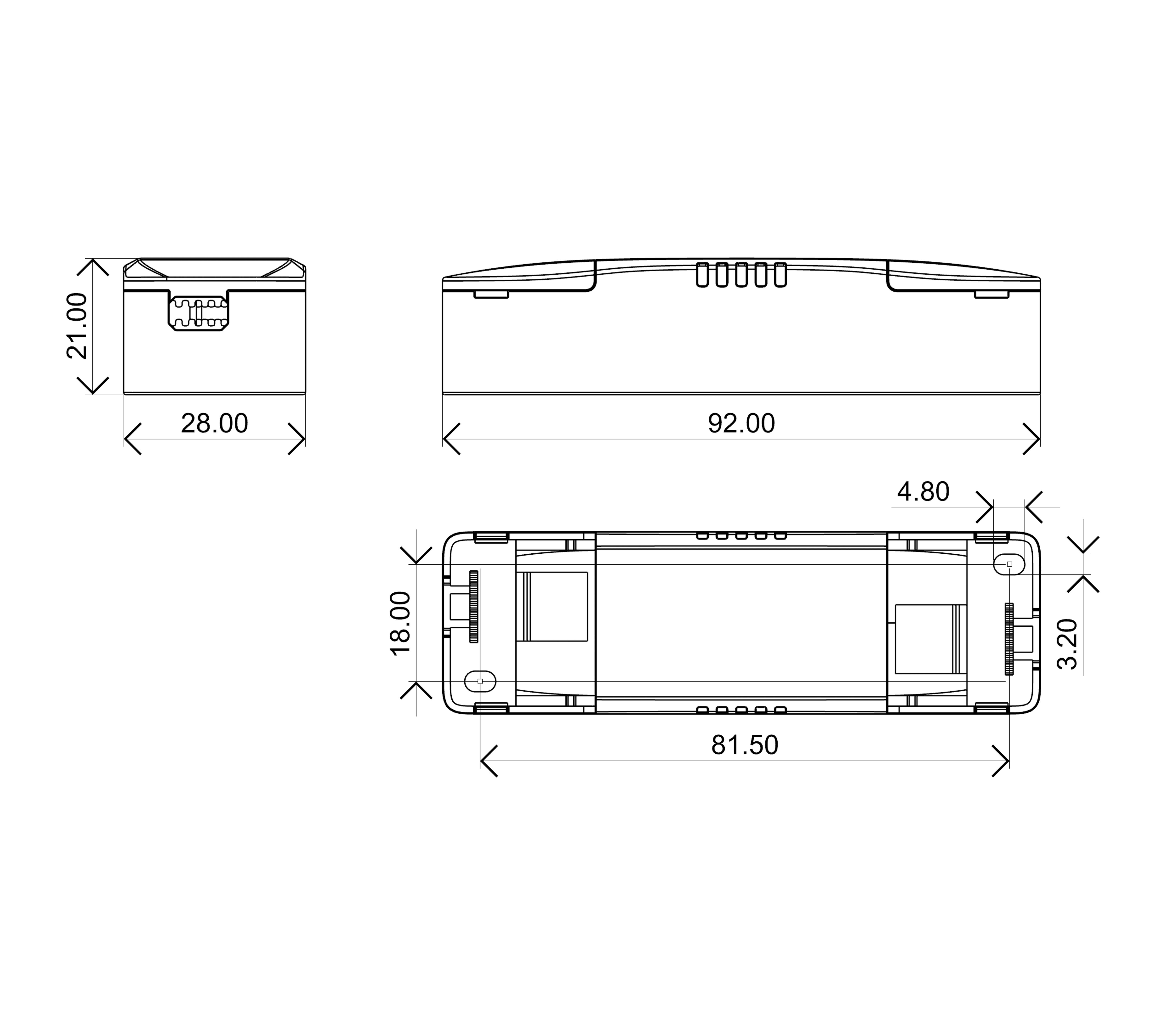

2D Line Drawing
Product Image
2D Line Drawing
12W | 250-700mA

LS-12-XXX SI2 E

Product Description:

· Class II，SELV，Independent

· Input Voltage: 220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.6C

· Efficiency：≥82%

· 5 years warranty

· IP20


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-12-250 SI2 E12W220-240VAC250mA30-40V82%0.692*28*21mm
LS-12-280 SI2 E12W220-240VAC280mA30-40V82%0.692*28*21mm
LS-12-300 SI2 E12W220-240VAC300mA30-40V82%0.692*28*21mm
LS-12-350 SI2 E12W220-240VAC350mA30-40V82%0.692*28*21mm
LS-12-500 SI2 E12W220-240VAC500mA18-24V82%0.692*28*21mm
LS-12-600 SI2 E12W220-240VAC600mA15-20V82%0.692*28*21mm
LS-12-700 SI2 E12W220-240VAC700mA13-17.2V82%0.692*28*21mm



LS-12-XXX SI2 E spec REV C
