Home / Products / Compact Drivers / ON/OFF / Hot Sale / LS-12-XXX CCT SI E

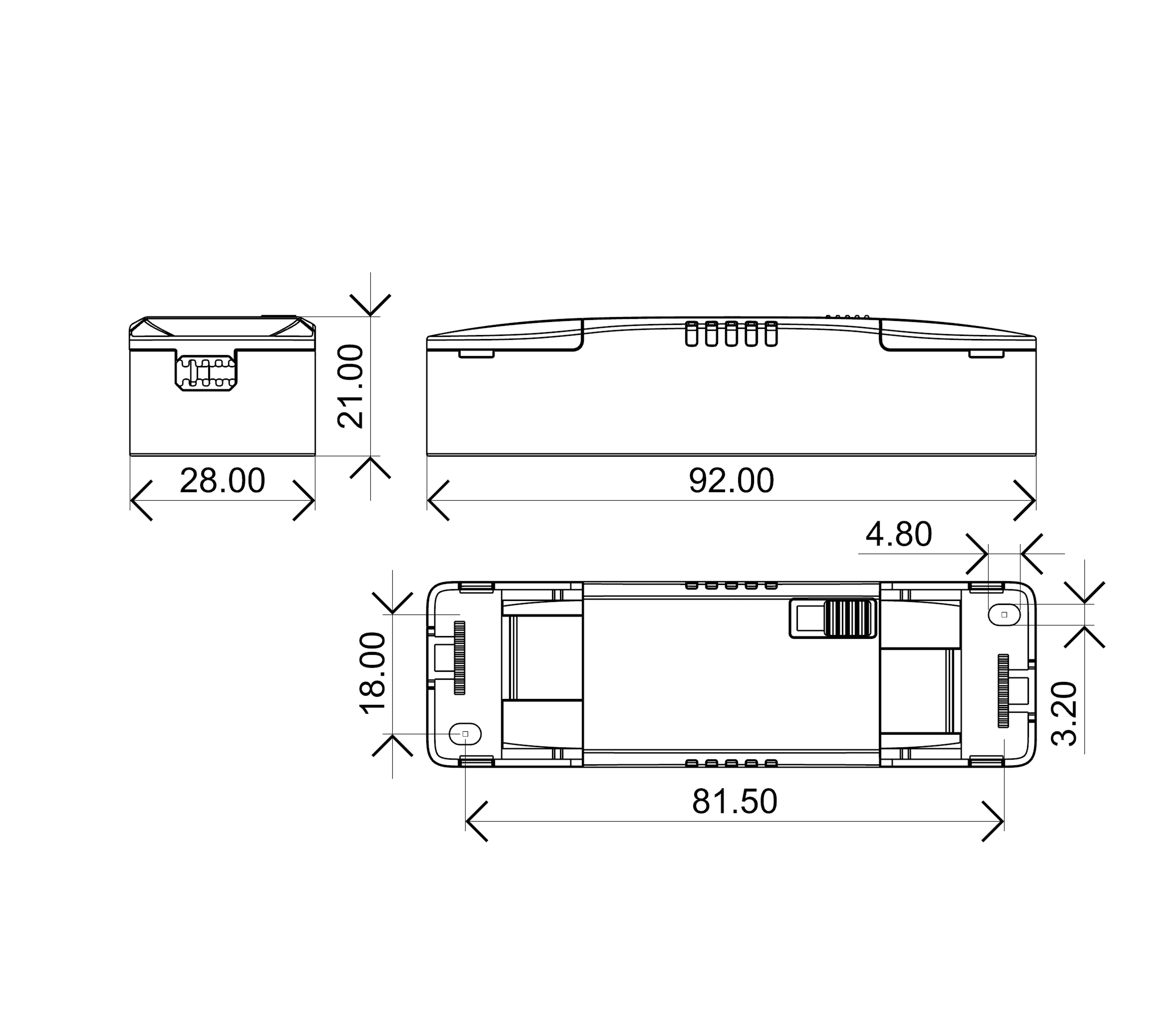

2D Line Drawing

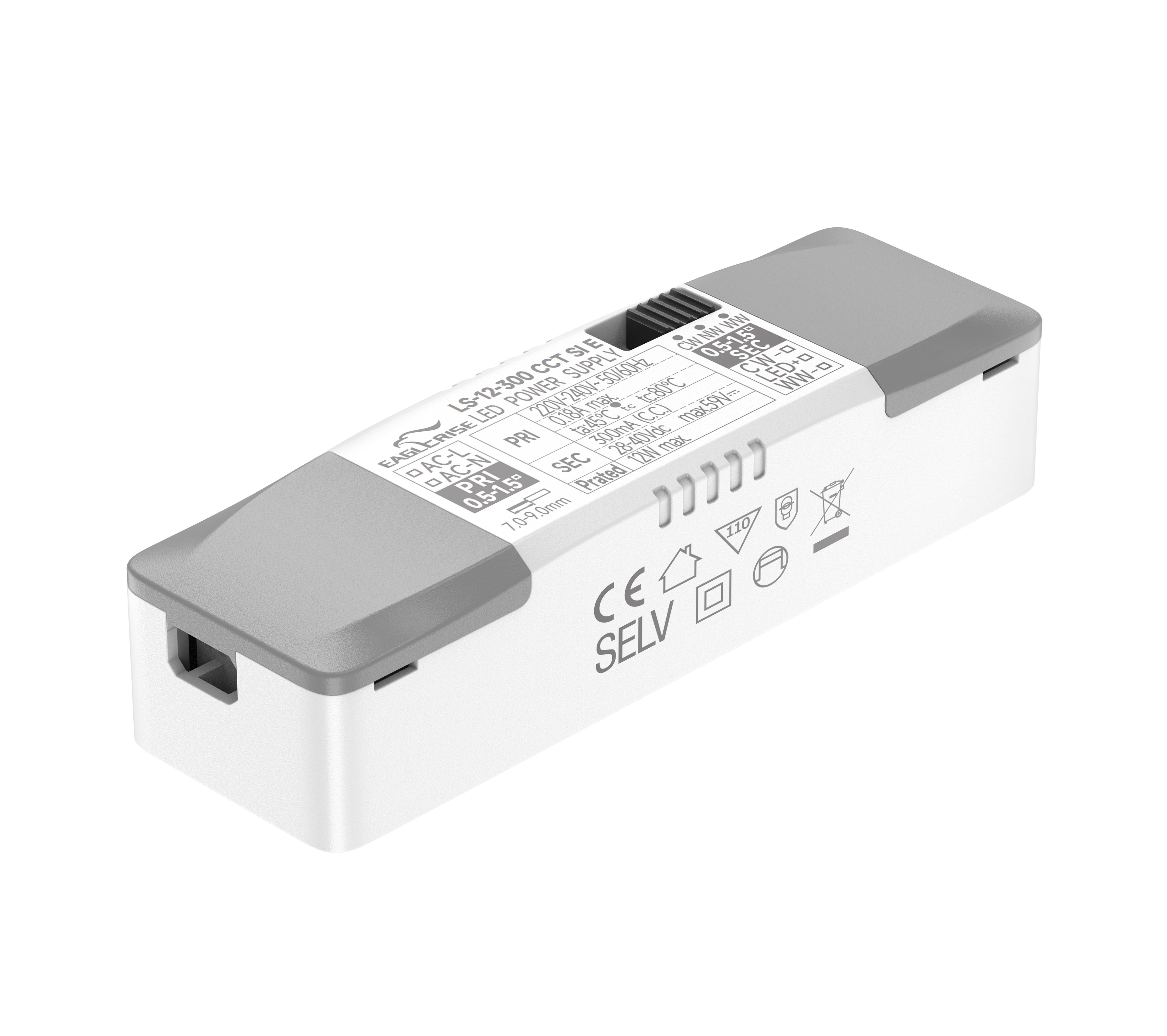

Product Image

2D Line Drawing

12W | 250-600mA

LS-12-XXX CCT SI E

Product Description:

· For luminaries of protection，ClassII，SELV，Independent

· Input Voltage: 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.6C

· Efficiency：≥82%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
LS-12-250 CCT SI E	12W	220-240VAC	250mA	30-40V	82%	0.6	922821mm
LS-12-280 CCT SI E	12W	220-240VAC	280mA	30-40V	82%	0.6	922821mm
LS-12-300 CCT SI E	12W	220-240VAC	300mA	30-40V	82%	0.6	922821mm

LS-12-XXX CCT SI E spec REV C

Related Products

LS-21-XXX CCT SI E

21W | 300-700mA

LS-21-XXX CCT SI E

LS-8-XXX CCT SI E

8W | 70-220mA

LS-8-XXX CCT SI E
