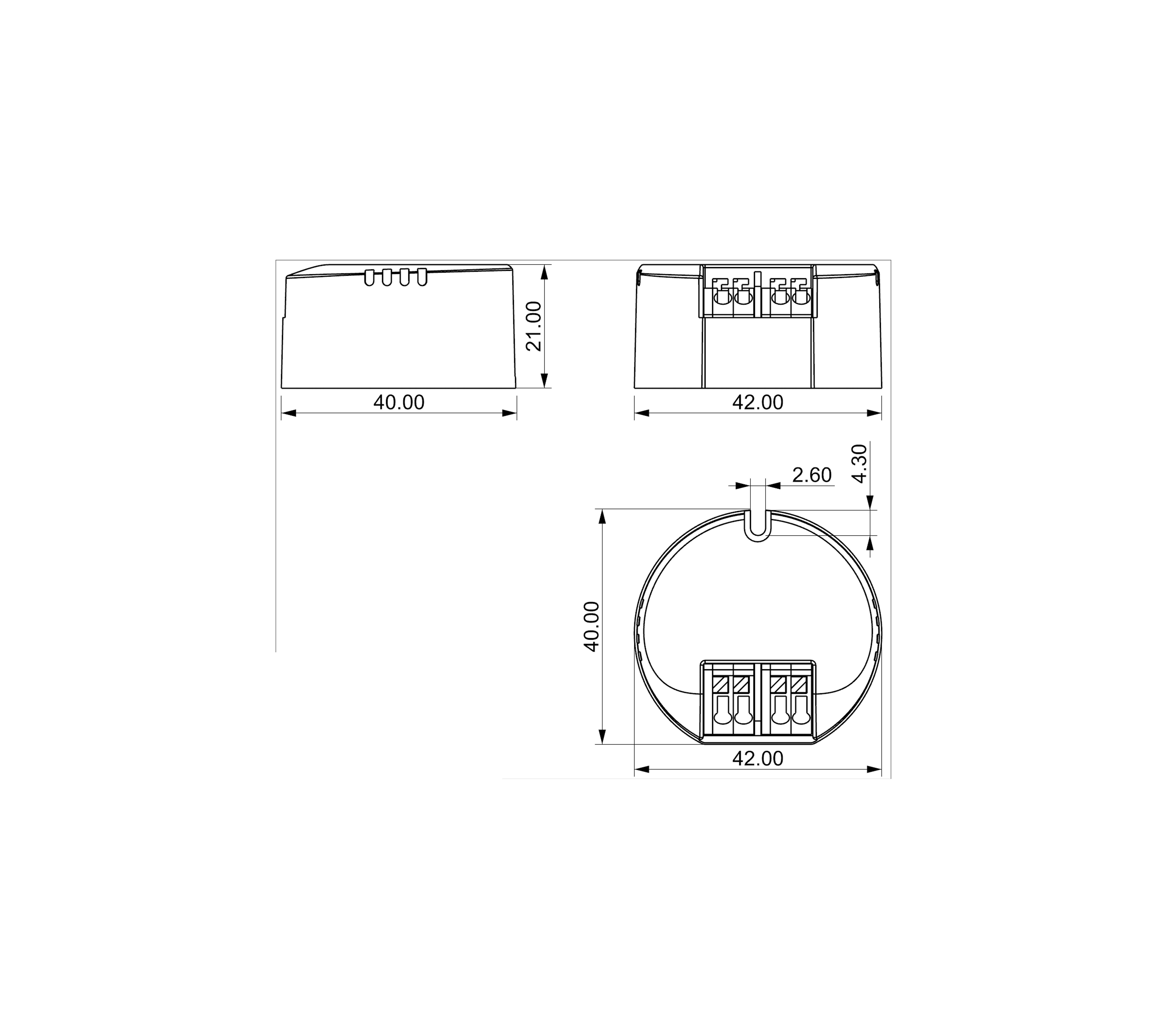

2D Line Drawing
Product Image
2D Line Drawing
8W | 100-220mA

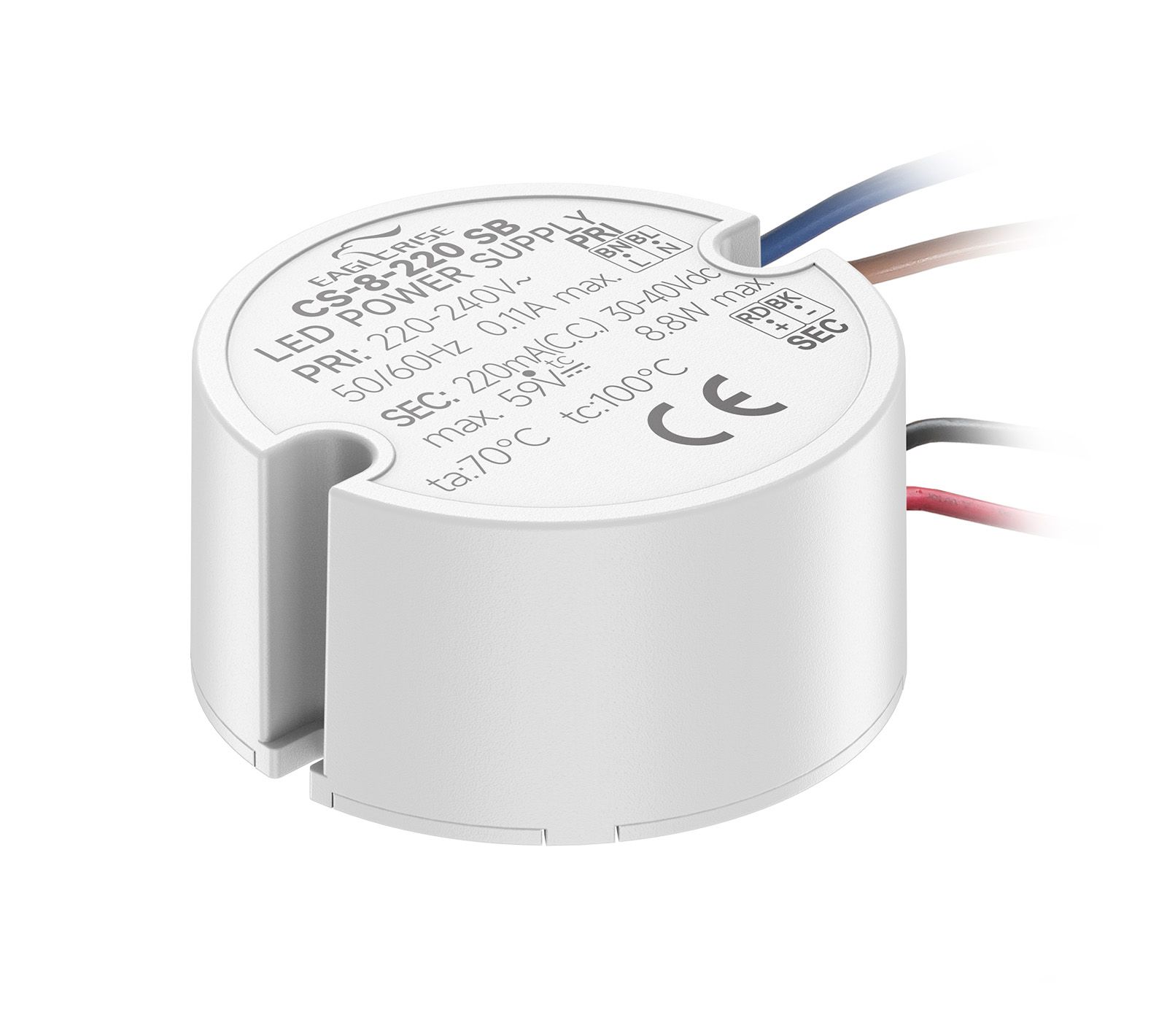

CS-8-XXX SB

Product Description:

· Class II，SELV，Built-in

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.5C-0.6C

· Efficiency：≥80%

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
CS-8-100 SB8W220-240VAC100mA30-40V80%0.5Φ42.5*21mm
CS-8-120 SB8W220-240VAC120mA30-40V85%0.6Φ42.5*21mm
CS-8-150 SB8W220-240VAC150mA30-40V85%0.6Φ42.5*21mm
CS-8-180 SB8W220-240VAC180mA30-40V85%0.6Φ42.5*21mm
CS-8-200 SB8W220-240VAC200mA30-40V85%0.6Φ42.5*21mm
CS-8-220 SB8W220-240VAC220mA30-40V85%0.6Φ42.5*21mm




CS-8-XXX SB spec REV A
Download All Files
