Home / Products / Compact Drivers / ON/OFF / Hot Sale / CS-32-XXX LB

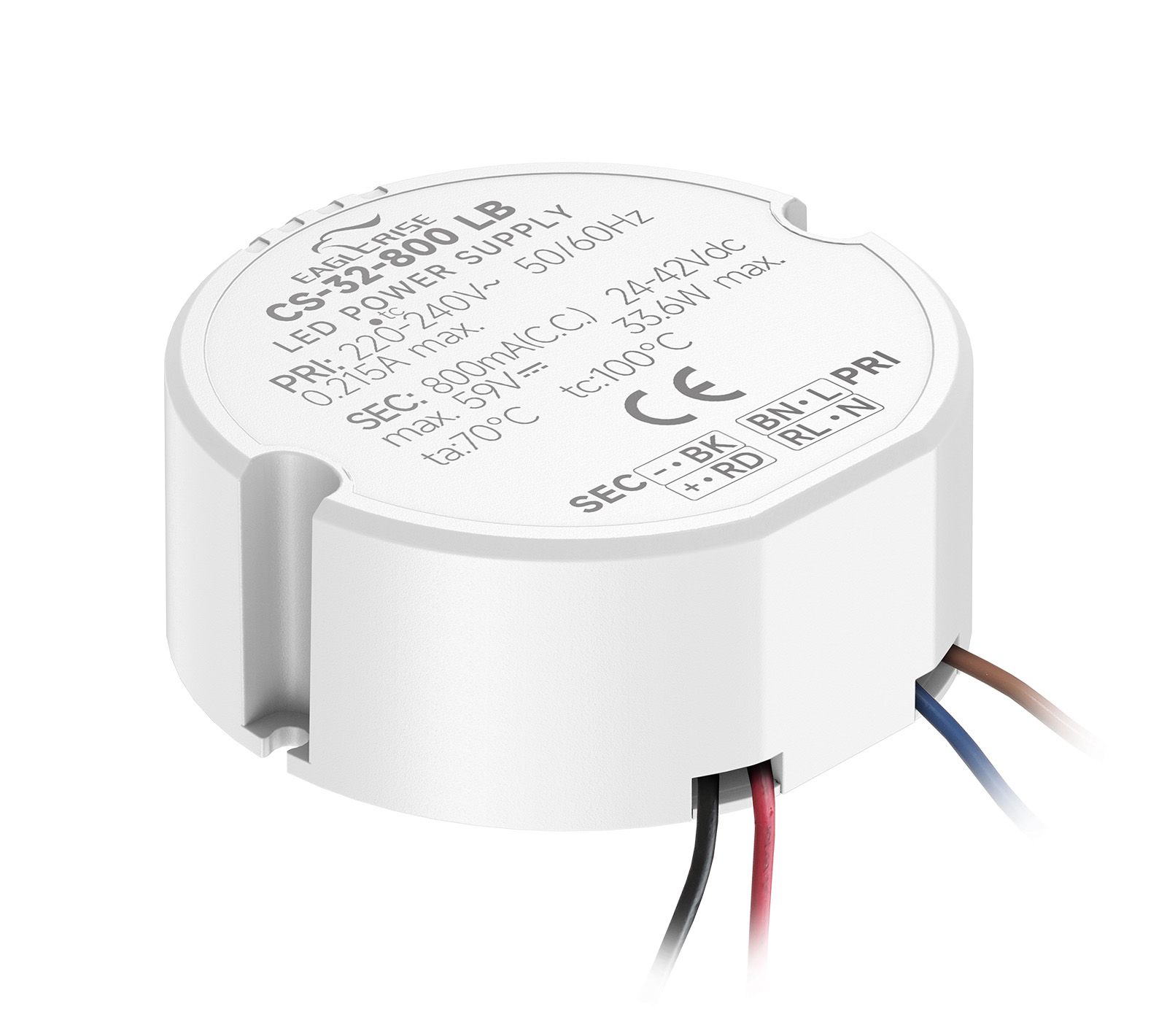

Product Image

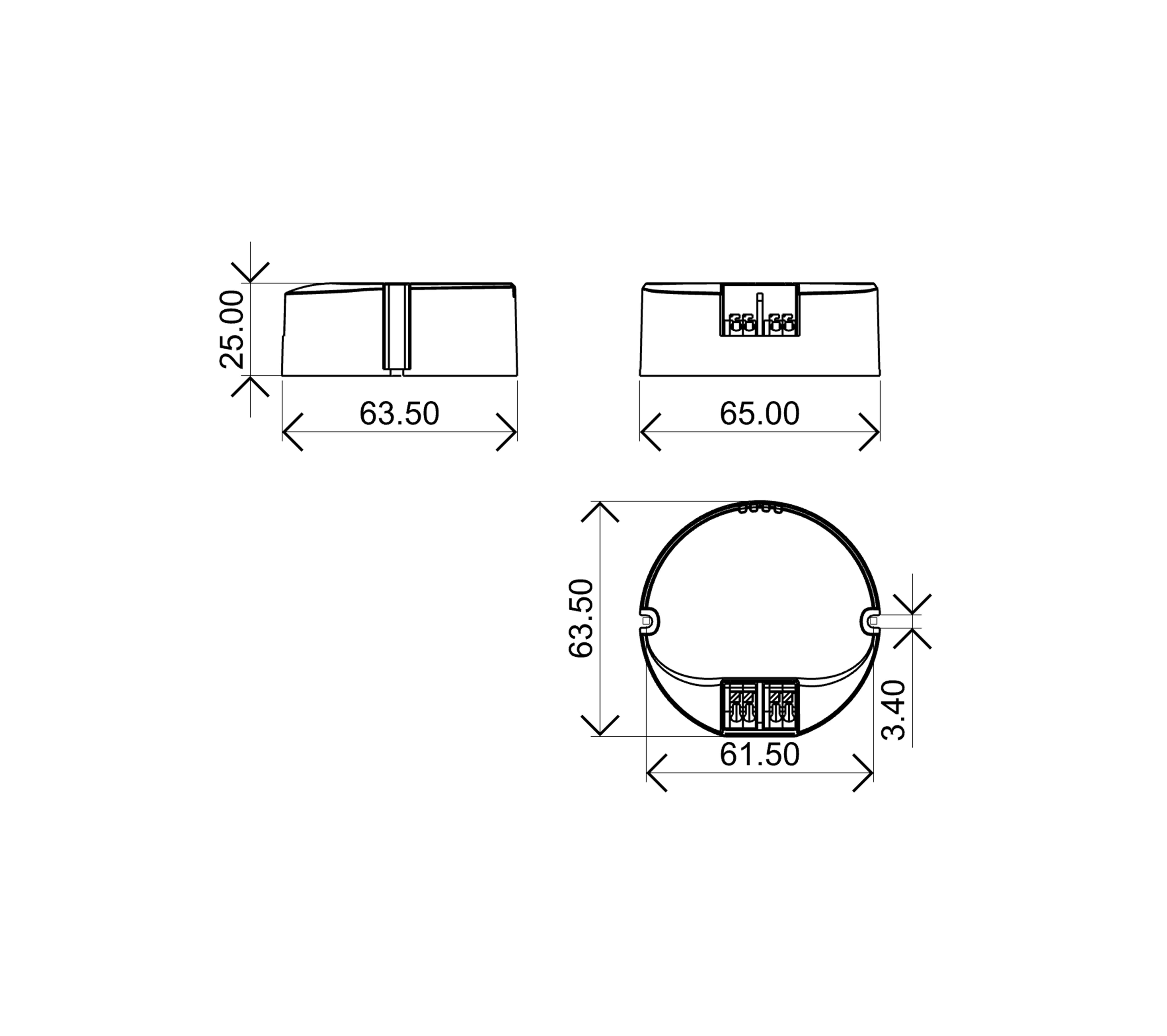

2D Line Drawing
Product Image
2D Line Drawing
32W | 650-800mA

CS-32-XXX LB

Product Description:

· Class II，SELV，Built-in

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.95

· Efficiency：≥89%

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
CS-32-650 LB32W220-240VAC650mA24-42V89%0.95Φ65*25mm
CS-32-700 LB32W220-240VAC700mA24-42V89%0.95Φ65*25mm
CS-32-750 LB32W220-240VAC750mA24-42V89%0.95Φ65*25mm
CS-32-800 LB32W220-240VAC800mA24-42V89%0.95Φ65*25mm




CS-32-XXX LB spec REV A
Download All Files
