CS-22-XXX SI

Product Description:

· Class II，SELV，Built-in

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.55C

· Efficiency：85%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Technical Specifications

Model	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size (LWH)
CS-22-350 SI	22W	220-240VAC	350mA	27-42V	85%	0.5	Φ50*22mm
CS-22-400 SI	22W	220-240VAC	400mA	27-42V	85%	0.5	Φ50*22mm
CS-22-450 SI	22W	220-240VAC	450mA	27-42V	85%	0.5	Φ50*22mm
CS-22-500 SI	22W	220-240VAC	500mA	27-42V	85%	0.5	Φ50*22mm
CS-22-550 SI	22W	220-240VA	550mA	27-40V	85%	0.5	Φ50*22mm

CS-22-XXX SI spec REV B

Download All Files

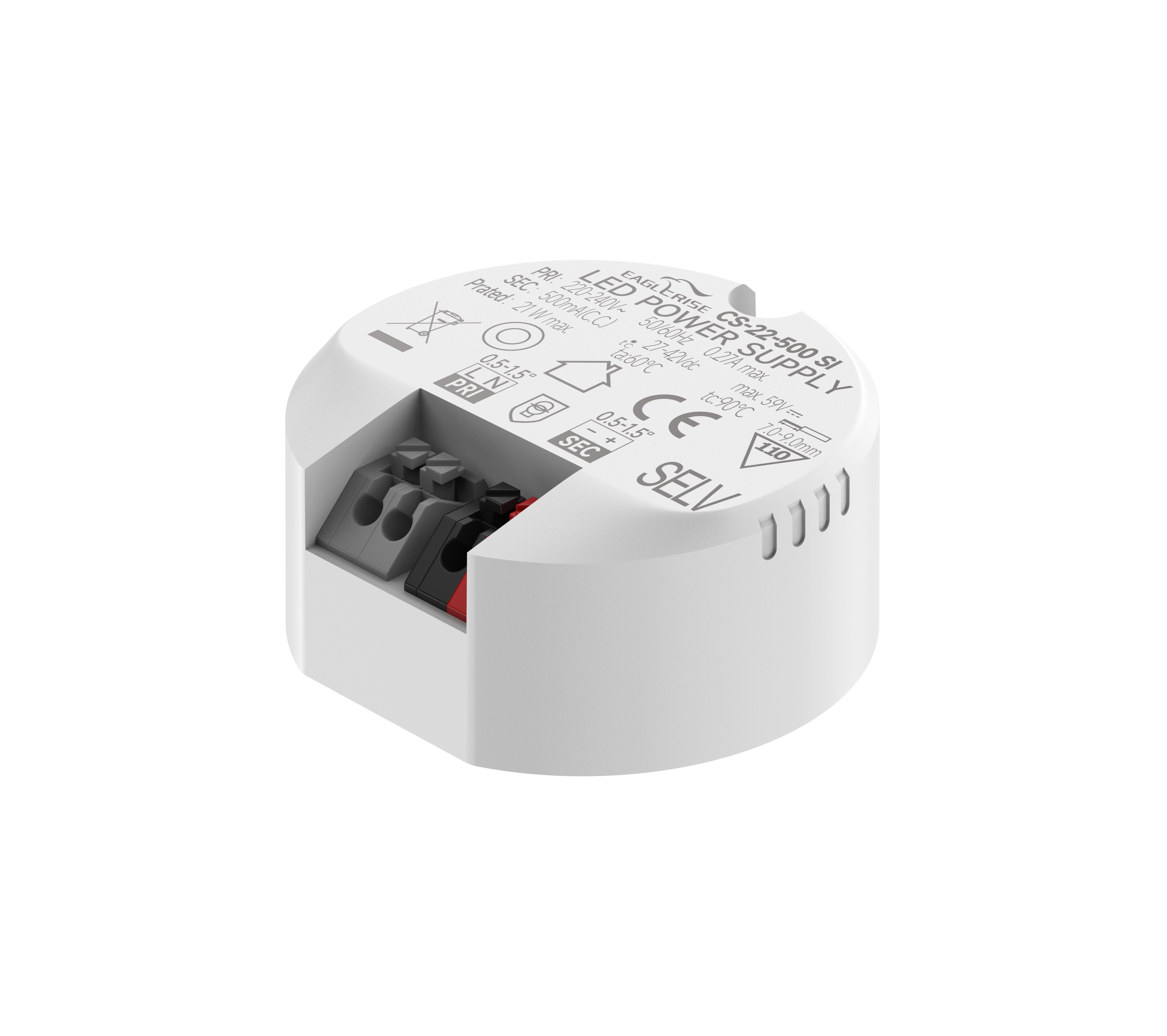

CS-22-XXX SI is a 22W constant current LED driver with 350 to 550mA output current. This compact LED driver, measuring only Φ50x22mm. It is easy to integrate in LED Panel, spot and ceiling lights product. To ensure trouble-free operation, protection is provided against output short circuit and over Load.

Wiring diagram

Curve for CS-22-XXX SI，Io=500mA
