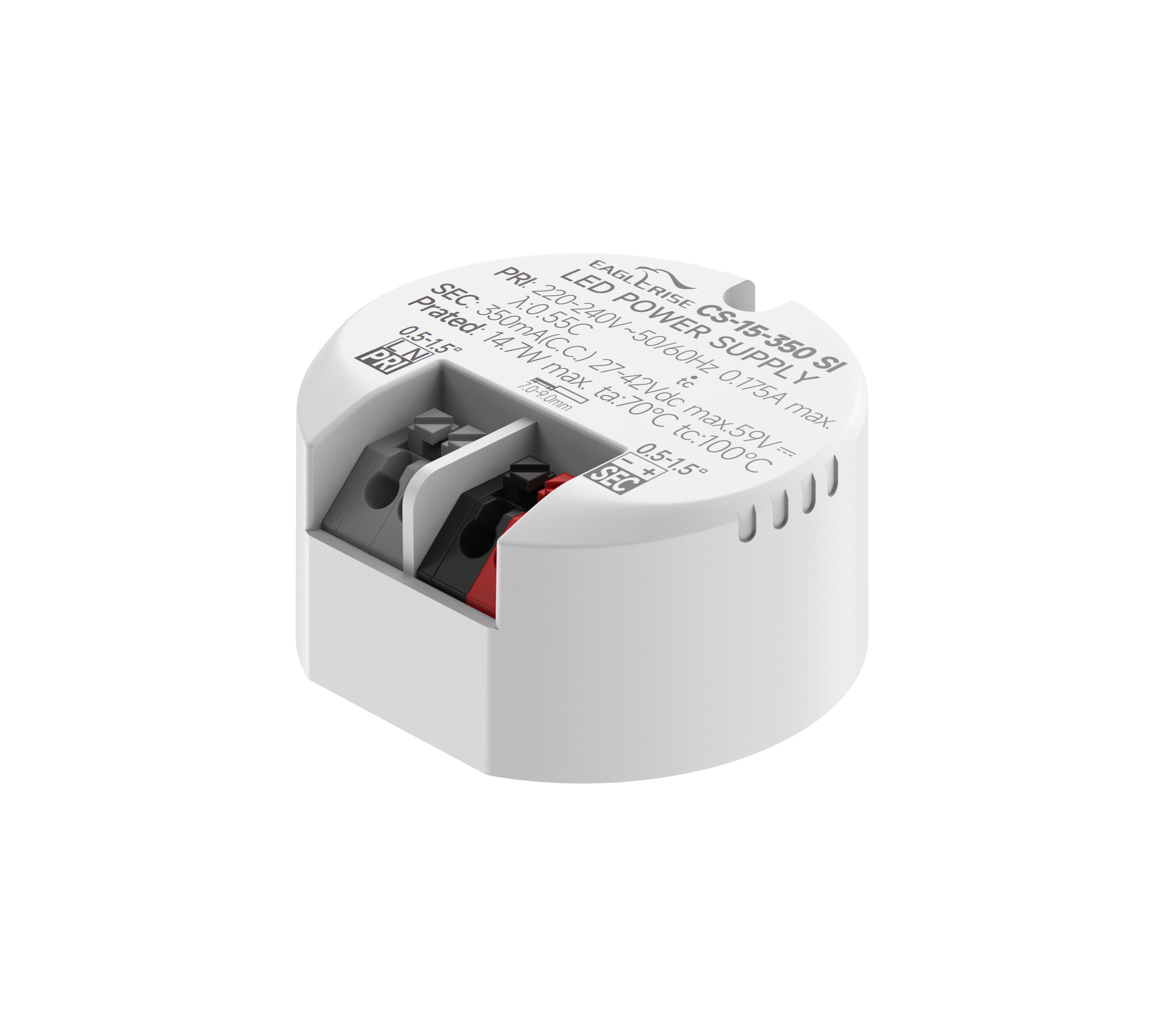

Product Image

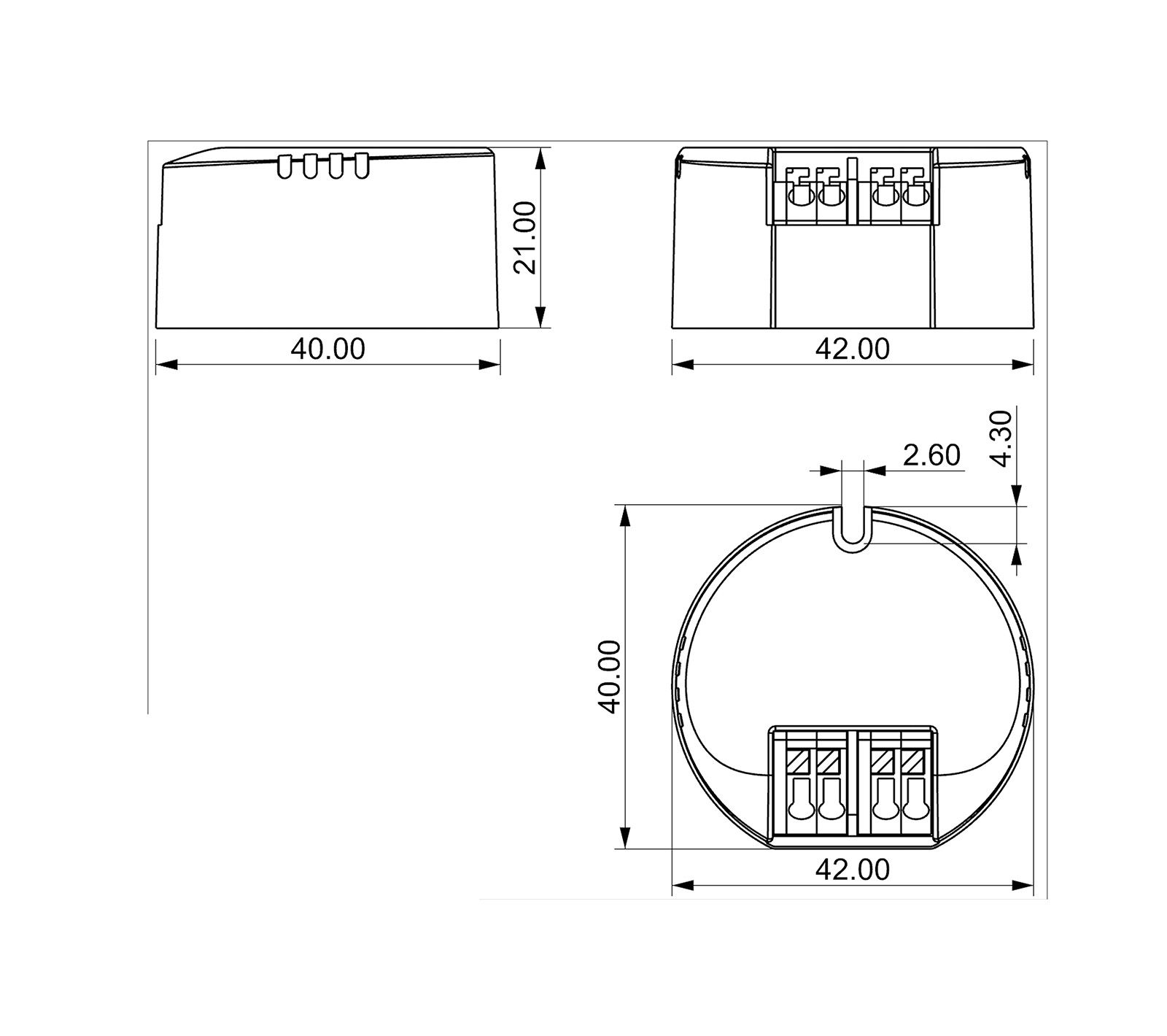

2D Line Drawing
Product Image
2D Line Drawing
15W | 250-350mA

CS-15-XXX SI

Product Description:

· Class II，SELV，Built-in

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.55C

· Efficiency：82%

· 5 years warranty

· IP20


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
CS-15-250 SI15W220-240VAC250mA27-42V82%0.5Φ42*21mm
CS-15-300 SI15W220-240VAC300mA27-42V82%0.5Φ42*21mm
CS-15-350 SI15W220-240VAC350mA27-42V82%0.5Φ42*21mm



CS-15-XXX SI spec REV B
Download All Files
