Home / Products / Compact Drivers / ON/OFF / High PF / LS-8-XXX LI2 EXC

2D Line Drawing

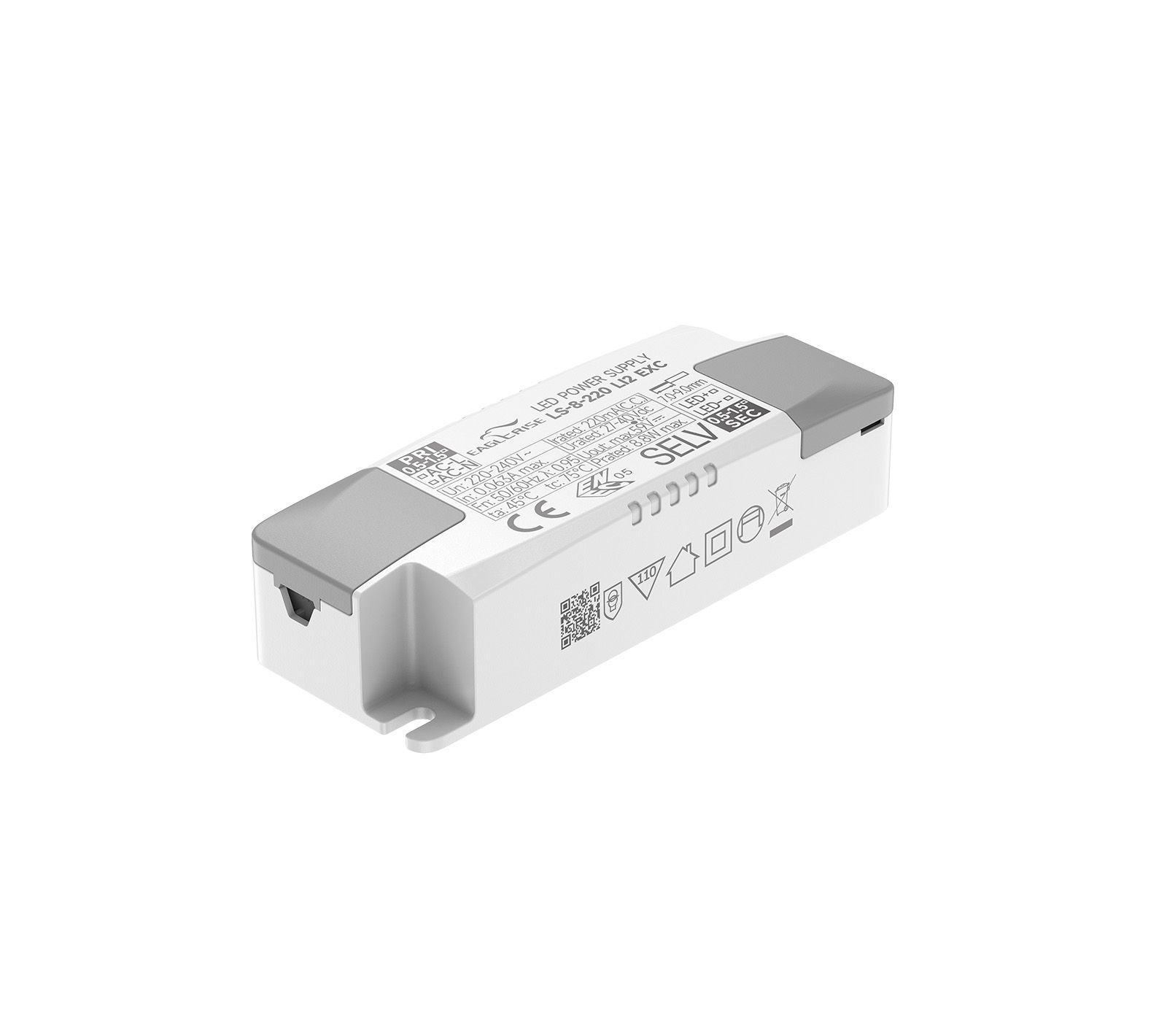

Product Image

2D Line Drawing

8W | 70-220mA

LS-8-XXX LI2 EXC

Product Description:

· For luminaries of protection Class II

· SELV, Independent

· Input Voltage 220-240VAC

· Protections: SCP/OLP/OVP/OTP

· Power Factor :0.95

· Efficiency：68-79%

· 5 years warranty

Click to Expand

Inquire Now

Models

Datasheet

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
LS-8-70 LI2 EXC	8W	220-240VAC	70mA	27-42V	68%	0.90	923625mm
LS-8-120 LI2 EXC	8W	220-240VAC	120mA	27-42V	75%	0.92	923625mm
LS-8-150 LI2 EXC	8W	220-240VAC	150mA	27-42V	75%	0.95	923625mm
LS-8-160 LI2 EXC	8W	220-240VAC	160mA	27-42V	75%	0.95	923625mm
LS-8-180 LI2 EXC	8W	220-240VAC	180mA	27-42V	78%	0.95	923625mm
LS-8-200 LI2 EXC	8W	220-240VAC	200mA	27-40V	78%	0.95	923625mm
LS-8-220 LI2 EXC	8W	220-240VAC	220mA	27-40V	79%	0.95	923625mm

LS-8-XXX LI2 EXC spec REV B
