Home / Products / Compact Drivers / ON/OFF / High PF / LS-8-XXX LI1 EXC
Product Image
2D Line Drawing
Product Image
2D Line Drawing
8W | 70-220mA

LS-8-XXX LI1 EXC

Product Description:

· For luminaries of protection ClassII，SELV，independent

· Input Voltage：220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95

· Efficiency：68-80%

· 5 years warranty


Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize (L*W*H)
LS-8-70 LI1 EXC8W220-240VAC70mA27-42V68%0.9592*36*25mm
LS-8-120 LI1 EXC8W220-240VAC120mA27-42V76%0.9592*36*25mm
LS-8-150 LI1 EXC8W220-240VAC150mA27-42V78%0.9592*36*25mm
LS-8-160 LI1 EXC8W220-240VAC160mA27-42V78%0.9592*36*25mm
LS-8-180 LI1 EXC8W220-240VAC180mA27-42V79%0.9592*36*25mm
LS-8-200 LI1 EXC8W220-240VAC200mA27-40V80%0.9592*36*25mm
LS-8-220 LI1 EXC8W220-240VAC220mA27-40V80%0.9592*36*25mm



LS-8-XXX LI1 EXC spec REV A
Download All Files
Related Products

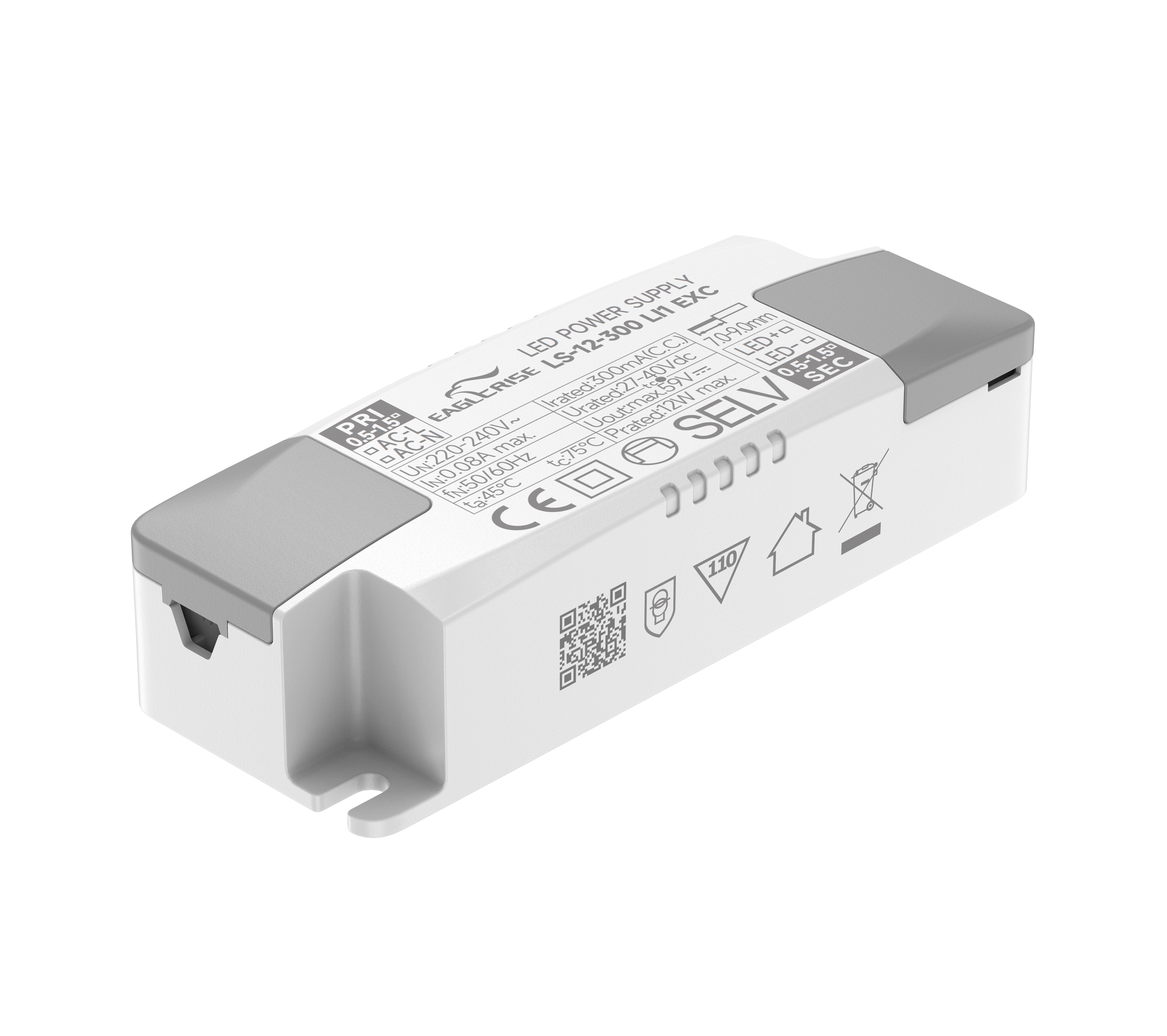

LS-12-XXX LI1 EXC
12W | 250-300mA
LS-12-XXX LI1 EXC
LS-15-350 LI1 EXC
15W | 350mA
LS-15-350 LI1 EXC

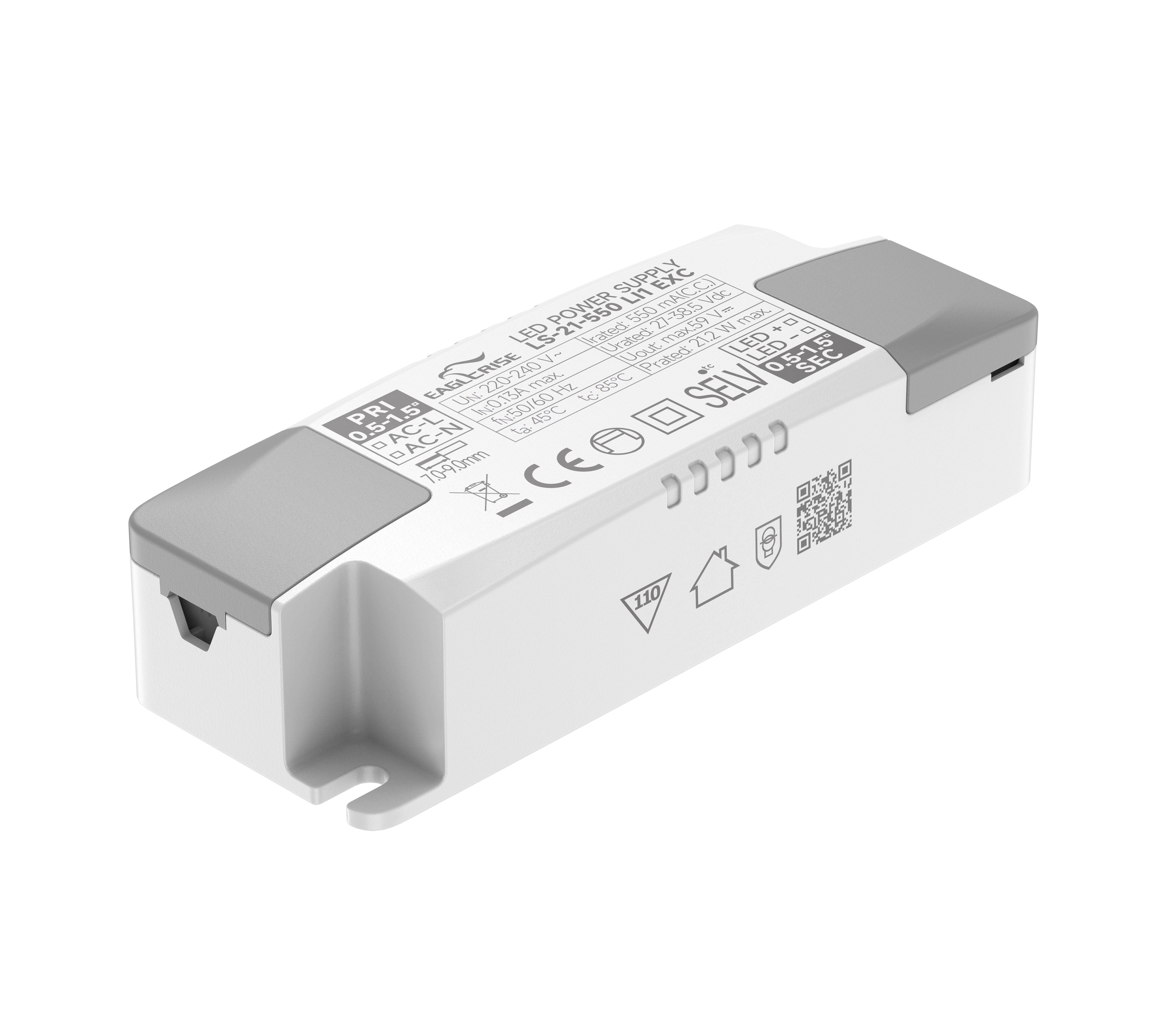

LS-21-XXX LI1 EXC
