Home / Products / Compact Drivers / ON/OFF / High PF / LS-60-XXX LI EXC

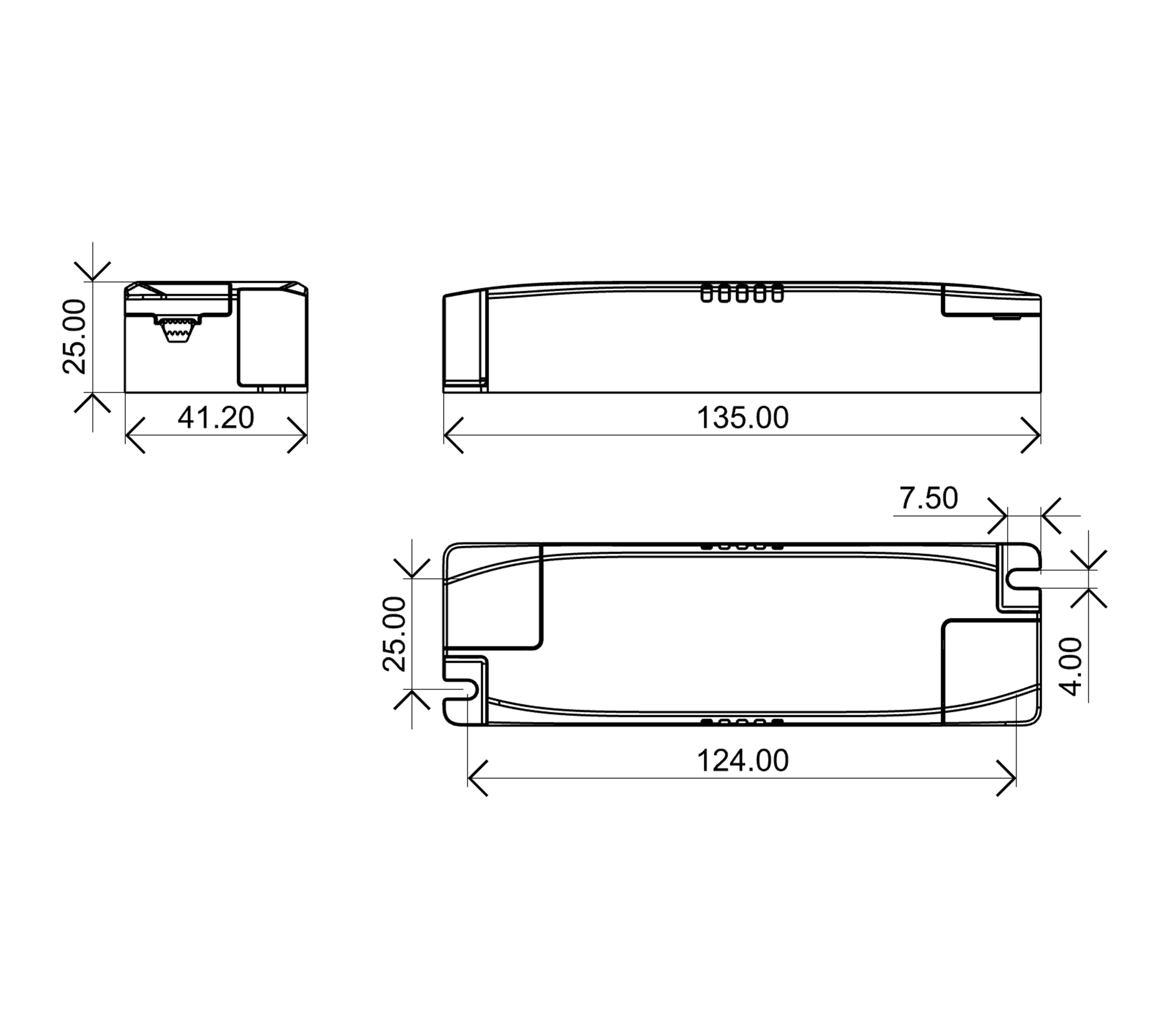

2D Line Drawing

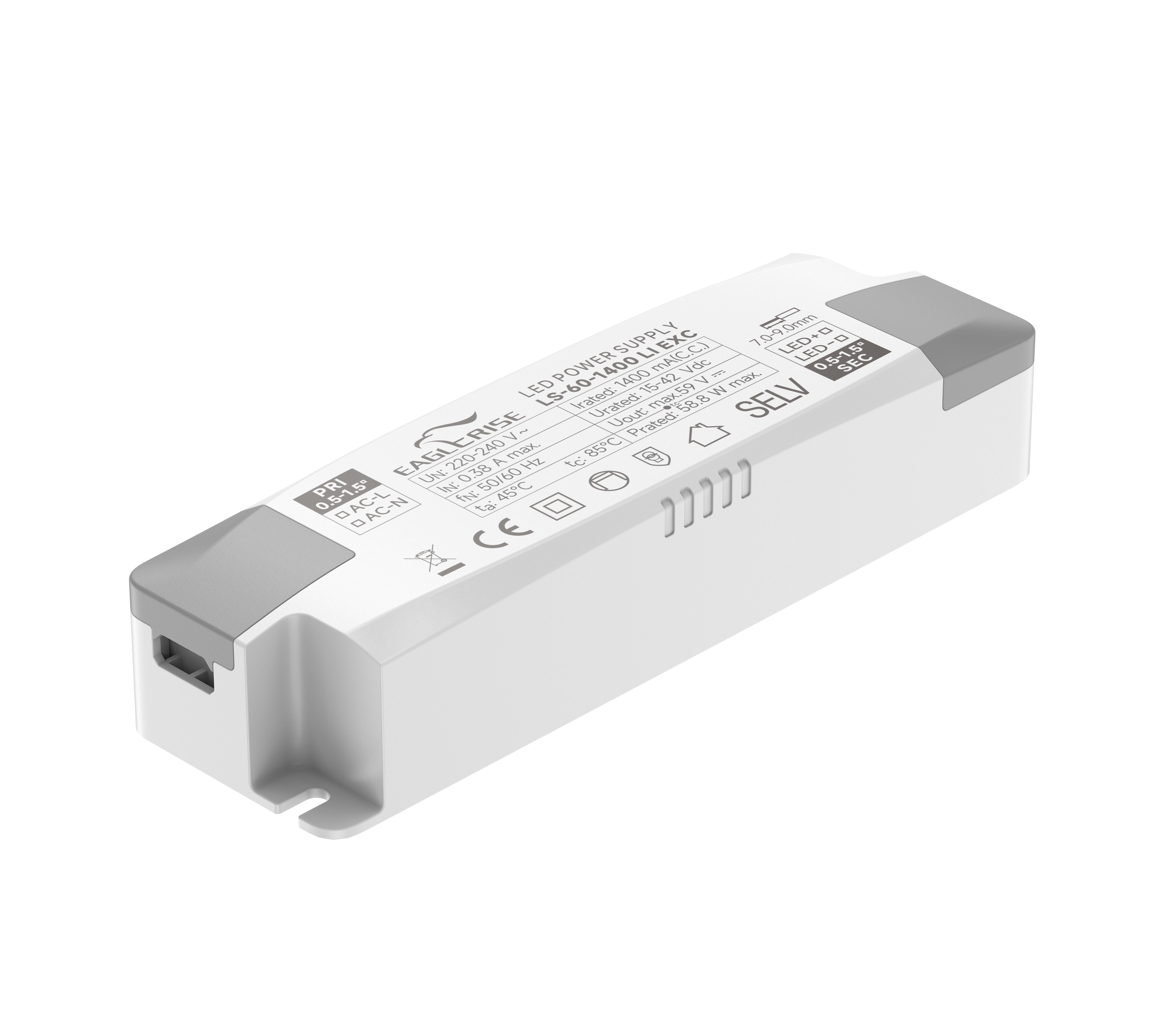

Product Image

2D Line Drawing

60W | 1050-1500mA

LS-60-XXX LI EXC

Product Description:

· For luminaries of protection Class II，SELV，independent

· Input Voltage：220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：≥0.95

· Efficiency：90%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
LS-60-1050 LI EXC	60W	220-240VAC	1050mA	15-42V	90%	0.95	13541.225mm
LS-60-1300 LI EXC	60W	220-240VAC	1300mA	15-42V	90%	0.95	13541.225mm
LS-60-1350 LI EXC	60W	220-240VAC	1350mA	15-42V	90%	0.95	13541.225mm
LS-60-1400 LI EXC	60W	220-240VAC	1400mA	15-42V	90%	0.95	13541.225mm
LS-60-1450 LI EXC	60W	220-240VAC	1450mA	15-40V	90%	0.95	13541.225mm
LS-60-1500 LI EXC	60W	220-240VAC	1500mA	15-40V	90%	0.95	13541.225mm

LS-60-XXX LI EXC spec REV A
