Home / Products / Compact Drivers / ON/OFF / High PF / LS-50-XXX LI EXC

2D Line Drawing

Product Image

2D Line Drawing

50W | 500-1250mA

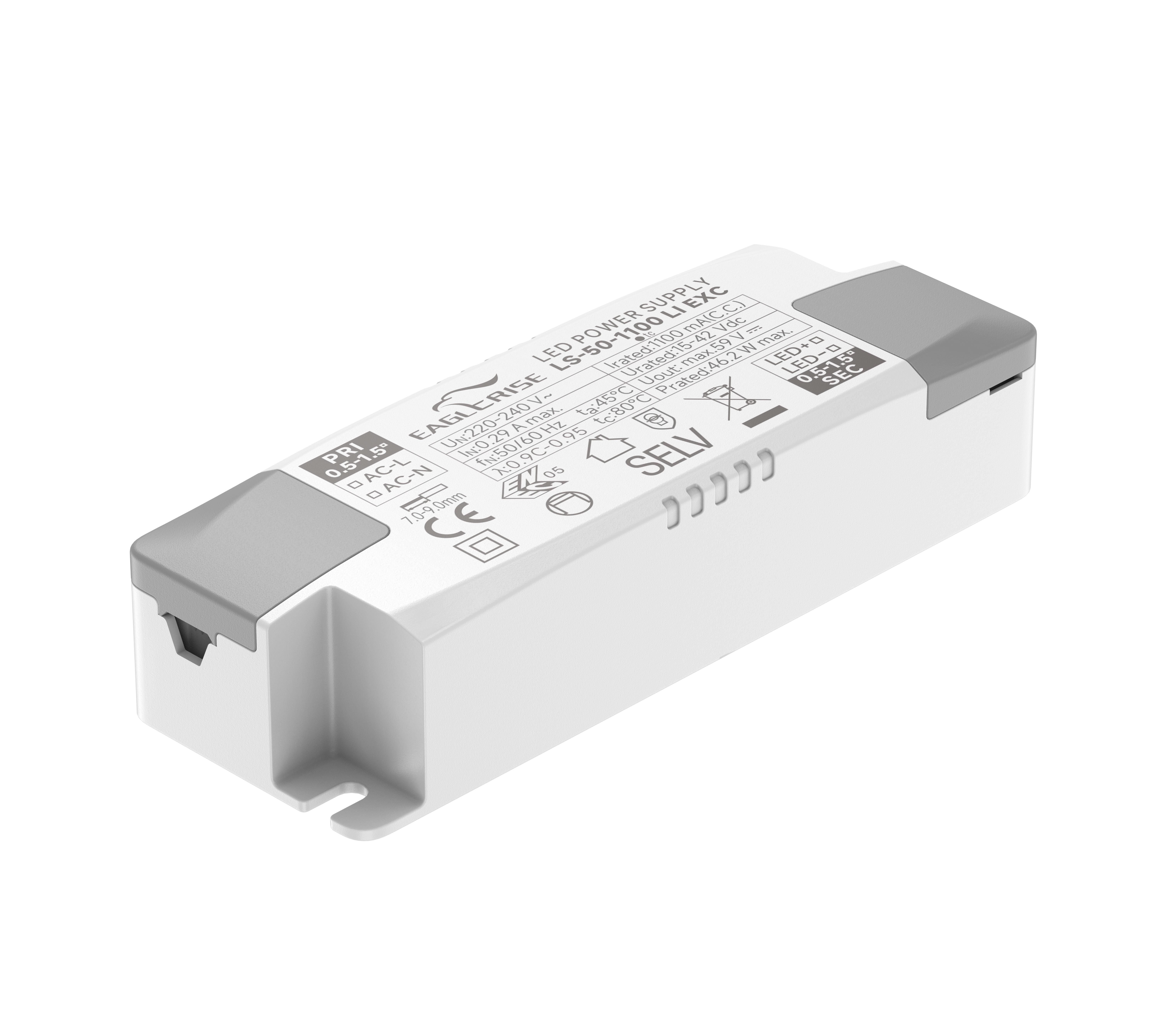

LS-50-XXX LI EXC

Product Description:

· Class II，SELV，independent

· Input Voltage：220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.95

· Efficiency：91%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
LS-50-500 LI EXC	50W	220-240VAC	500mA	30-84V	91%	0.95	11641.226mm
LS-50-600 LI EXC	50W	220-240VAC	600mA	30-84V	91%	0.95	11641.226mm
LS-50-1100 LI EXC	50W	220-240VAC	1100mA	15-42V	91%	0.95	11641.226mm
LS-50-1150 LI EXC	50W	220-240VAC	1150mA	15-42V	91%	0.95	11641.226mm
LS-50-1200 LI EXC	50W	220-240VAC	1200mA	15-42V	91%	0.95	11641.226mm
LS-50-1250 LI EXC	50W	220-240VAC	1250mA	15-40V	91%	0.95	11641.226mm

LS-50-XXX LI EXC spec REV B

Download All Files
