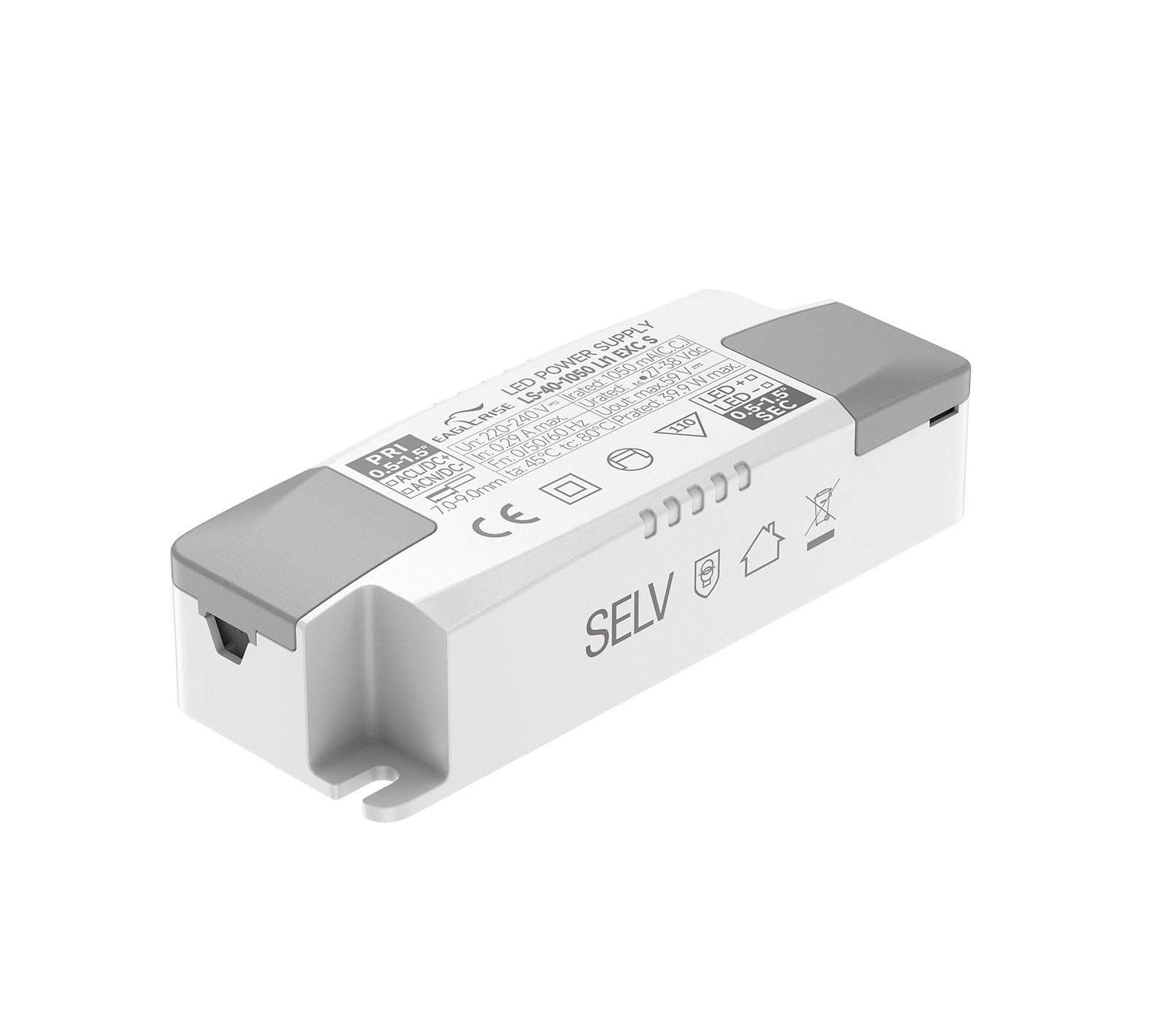

Product Image

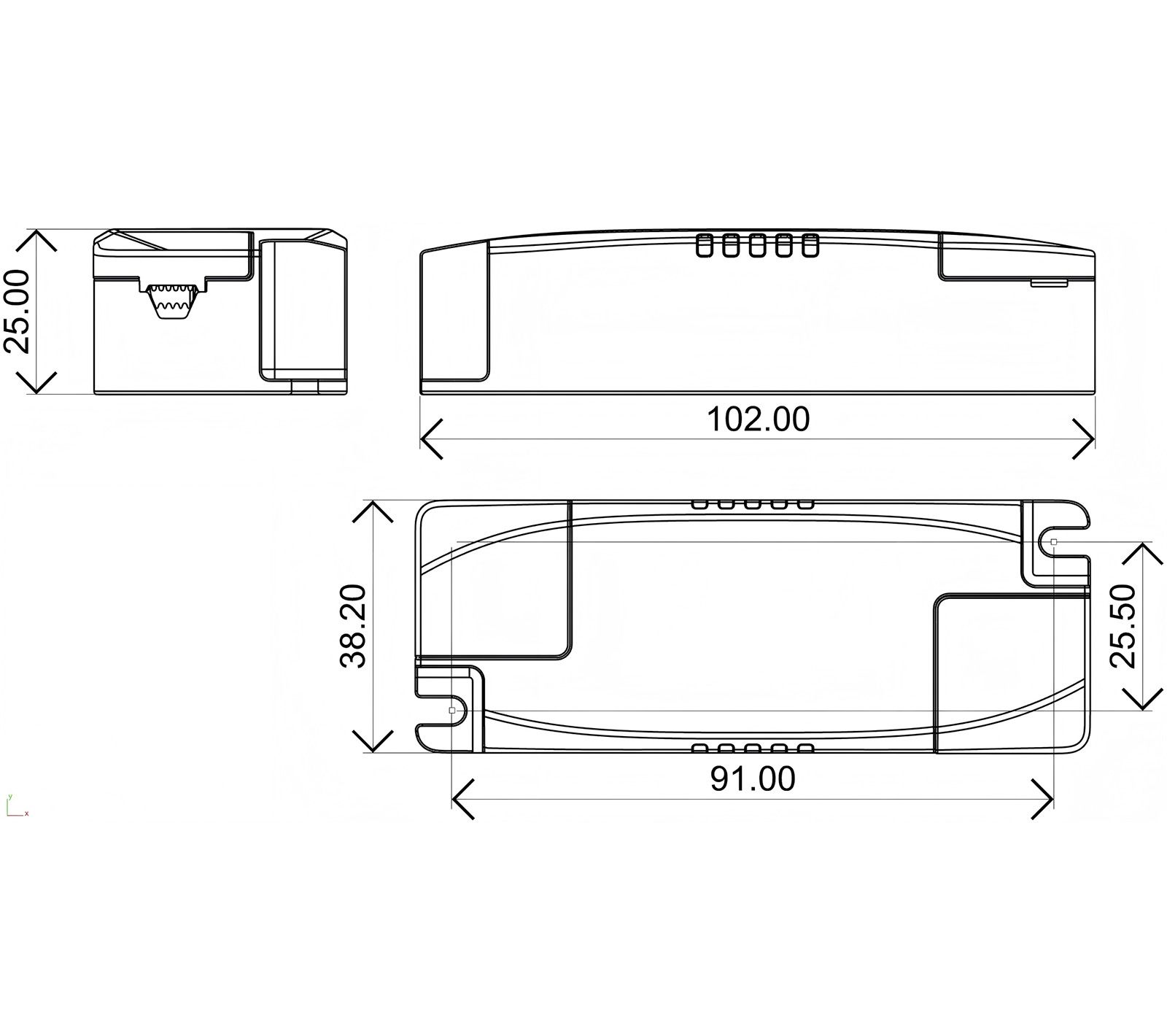

2D Line Drawing
Product Image
2D Line Drawing
40W | 600-1050mA

LS-40-XXX LI1 EXC S

Product Description:

· For luminaries of protection Class II
· SELV，independent
· Input Voltage： 220-240VAC
· Protections：SCP/OLP/OVP/OTP
· Power Factor：0.95
· Efficiency：90%
· 5 years warranty
· IP20

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
LS-40-600 LI1 EXC S40W220-240VAC600mA27-42V89%0.95102*38.2*25mm
LS-40-650 LI1 EXC S40W220-240VAC650mA27-42V89%0.95102*38.2*25mm
LS-40-700 LI1 EXC S40W220-240VAC700mA27-42V89%0.95102*38.2*25mm
LS-40-750 LI1 EXC S40W220-240VAC750mA27-42V89%0.95102*38.2*25mm
LS-40-800 LI1 EXC S40W220-240VAC800mA27-42V89%0.95102*38.2*25mm
LS-40-850 LI1 EXC S40W220-240VAC850mA27-42V89%0.95102*38.2*25mm
LS-40-900 LI1 EXC S40W220-240VAC900mA27-42V90%0.95102*38.2*25mm
LS-40-950 LI1 EXC S40W220-240VAC950mA27-42V90%0.95102*38.2*25mm
LS-40-1000 LI1 EXC S40W220-240VAC1000mA27-40V90%0.95102*38.2*25mm
LS-40-1050 LI1 EXC S40W220-240VAC1050mA27-38V90%0.95102*38.2*25mm


LS-40-XXX LI1 EXC S spec REV B
