Home / Products / Compact Drivers / ON/OFF / High PF / LS-40-XXX LI EXC S

2D Line Drawing

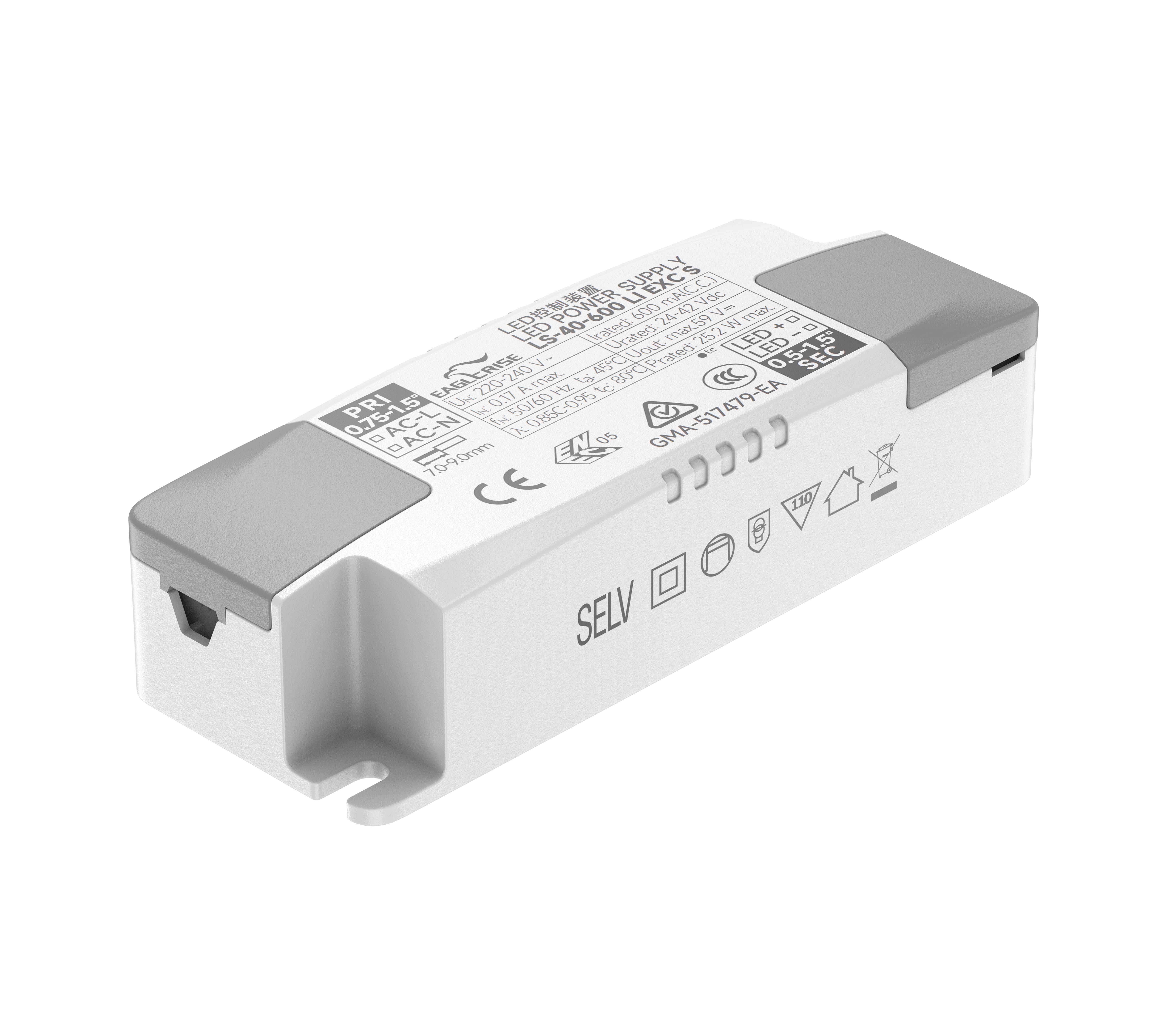

Product Image

2D Line Drawing

40W | 600-1050mA

LS-40-XXX LI EXC S

Product Description:

· For luminaries of protection Class II，SELV，Independent

· Input Voltage：220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95

· Efficiency：89%

· 5 years warranty

· IP20

Click to Expand

Inquire Now

Models

Datasheet

Certificate

Models	Power	Input Voltage	Output Current	Output Voltage	Efficiency	Power Factor	Size
LS-40-600 LI EXC S	40W	220-240VAC	600mA	24-42V	87%	0.95	10238.225mm
LS-40-650 LI EXC S	40W	220-240VAC	650mA	24-42V	87%	0.95	10238.225mm
LS-40-700 LI EXC S	40W	220-240VAC	700mA	24-42V	87%	0.95	10238.225mm
LS-40-750 LI EXC S	40W	220-240VAC	750mA	24-42V	87%	0.95	10238.225mm
LS-40-800 LI EXC S	40W	220-240VAC	800mA	24-42V	87%	0.95	10238.225mm
LS-40-850 LI EXC S	40W	220-240VAC	850mA	24-42V	87%	0.95	10238.225mm
LS-40-900 LI EXC S	40W	220-240VAC	900mA	24-42V	89%	0.95	10238.225mm
LS-40-950 LI EXC S	40W	220-240VAC	950mA	24-42V	89%	0.95	10238.225mm
LS-40-1000 LI EXC S	40W	220-240VAC	1000mA	24-40V	89%	0.95	10238.225mm
LS-40-1050 LI EXC S	40W	220-240VAC	1050mA	24-38.5V	89%	0.95	10238.225mm

LS-40-XXX LI EXC S spec REV C
