Home / Products / Compact Drivers / ON/OFF / High PF / LS-40-XXX LI EXC S-F

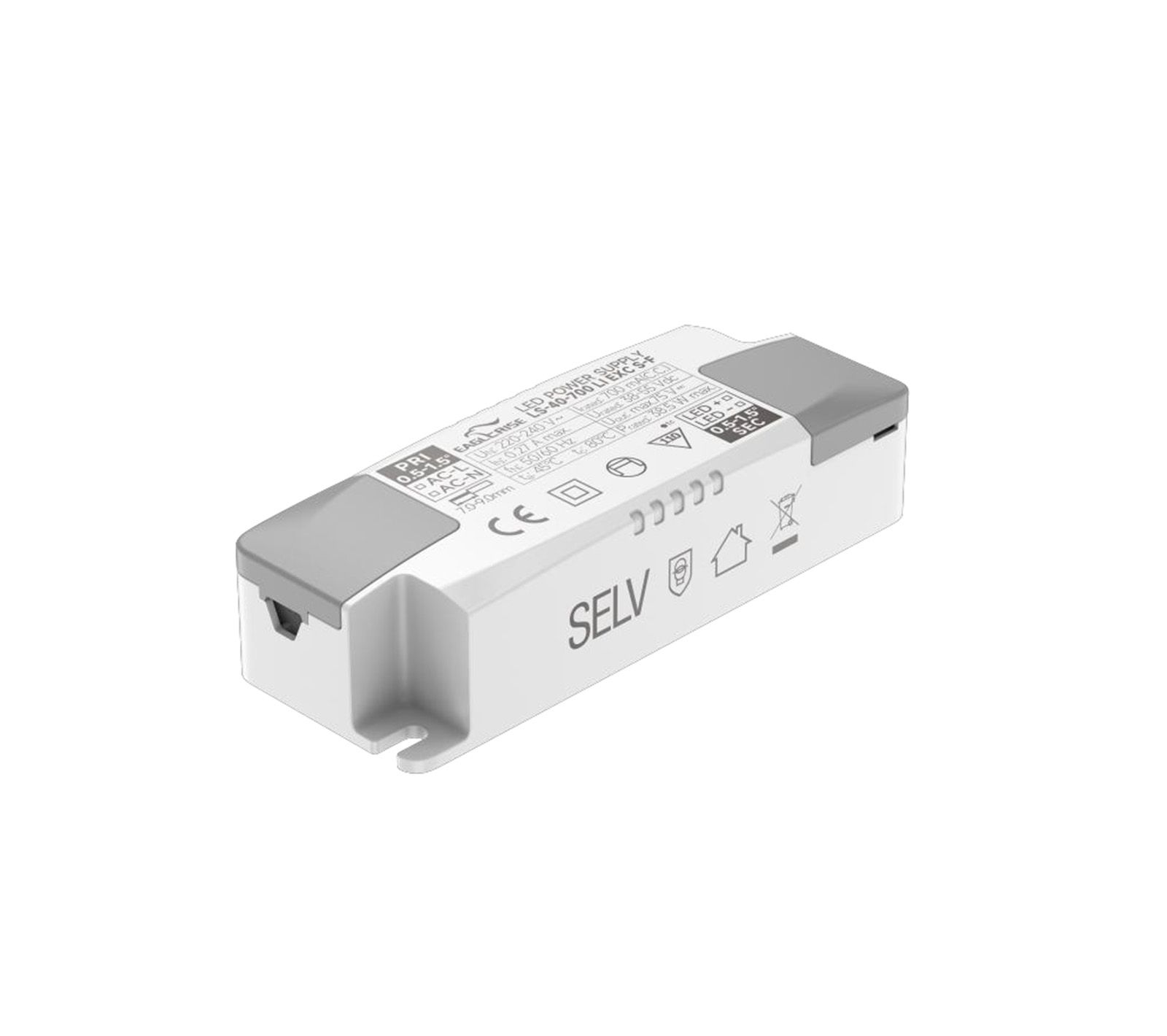

Product Image

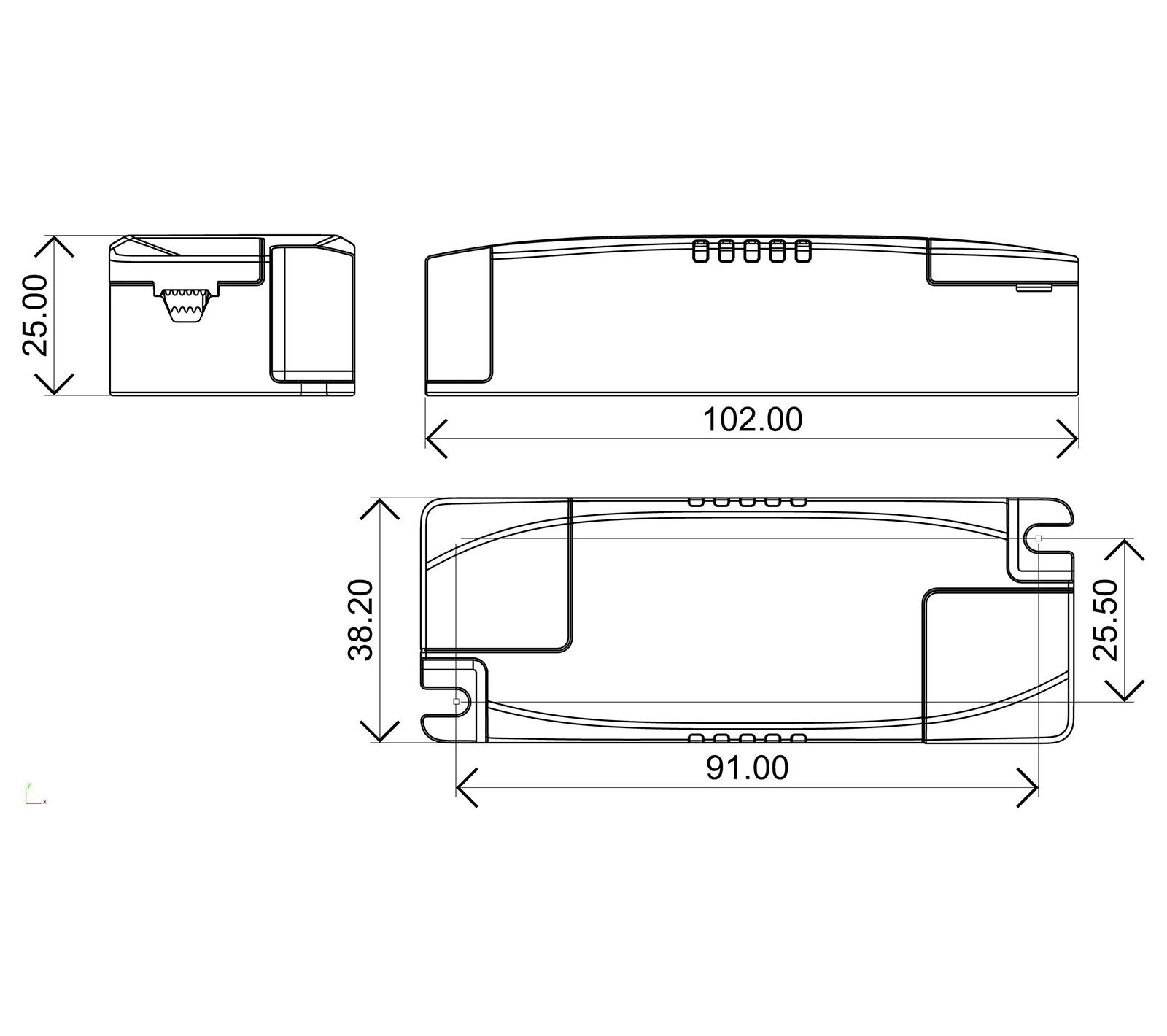

2D Line Drawing
Product Image
2D Line Drawing
40W | 300-800mA

LS-40-XXX LI EXC S-F

Product Description:

· For luminaries of protection Class II， SELV，Independent

· Input Voltage： 220-240VAC

· Protections：SCP/OLP/OVP/OTP

· Power Factor：0.95

· Efficiency：89%

· 5 years warranty

· IP20

Click to Expand
Inquire Now
Models
Datasheet
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
LS-40-300 LI EXC S-F40W220-240VAC300mA90-132V89%0.95102*38.2*25mm
LS-40-500 LI EXC S-F40W220-240VAC500mA250-80V89%0.95102*38.2*25mm
LS-40-600 LI EXC S-F40W220-240VAC600mA47-67V89%0.95102*38.2*25mm
LS-40-700 LI EXC S-F40W220-240VAC700mA38-55V89%0.95102*38.2*25mm
LS-40-800 LI EXC S-F40W220-240VAC800mA35-50V89%0.95102*38.2*25mm



LS-40-XXX LI EXC S-F spec REV B
Related Products
LS-40-XXX LI EXC S
40W | 600-1050mA
LS-40-XXX LI EXC S

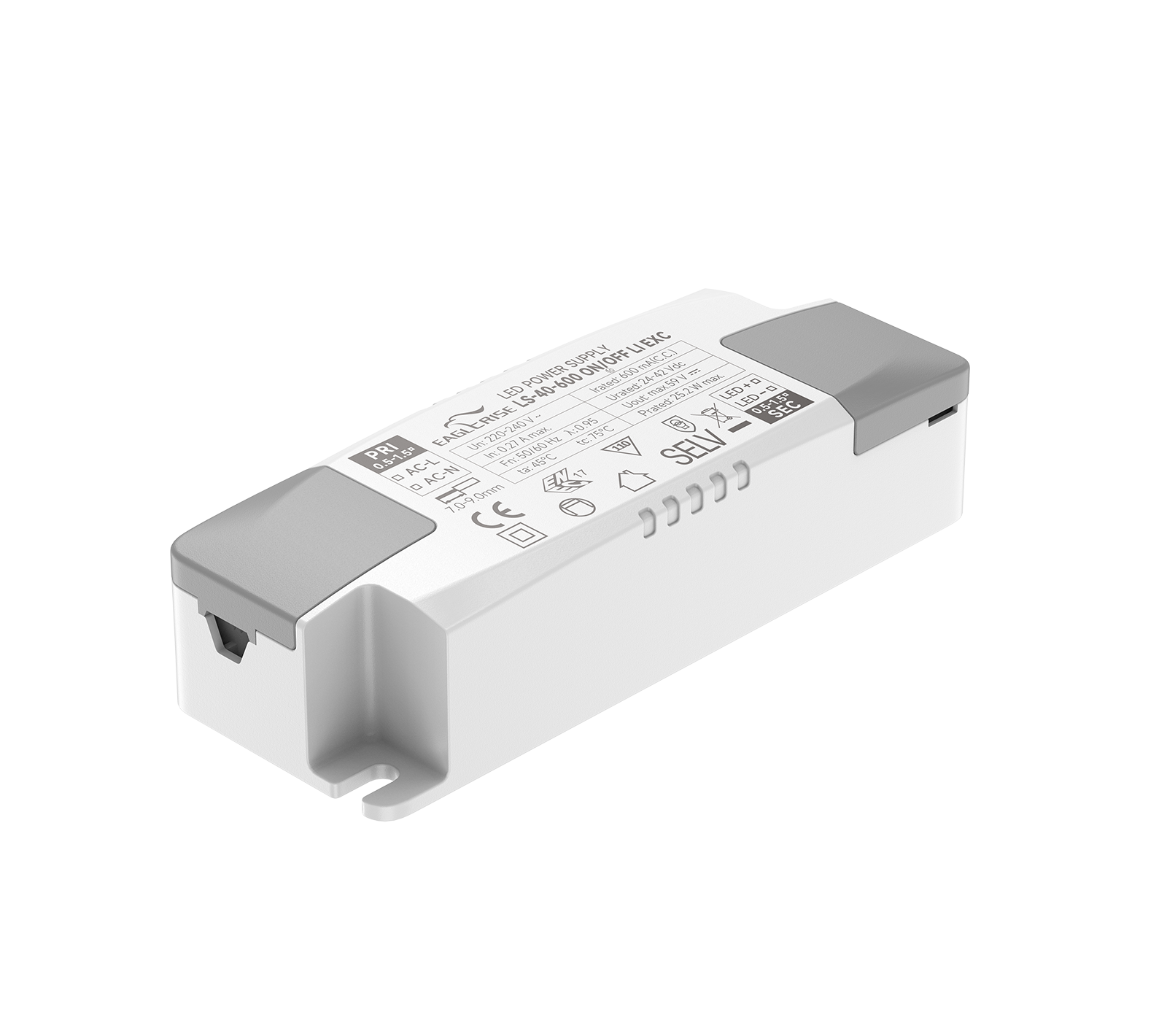

LS-40-XXX ON/OFF LI EXC
