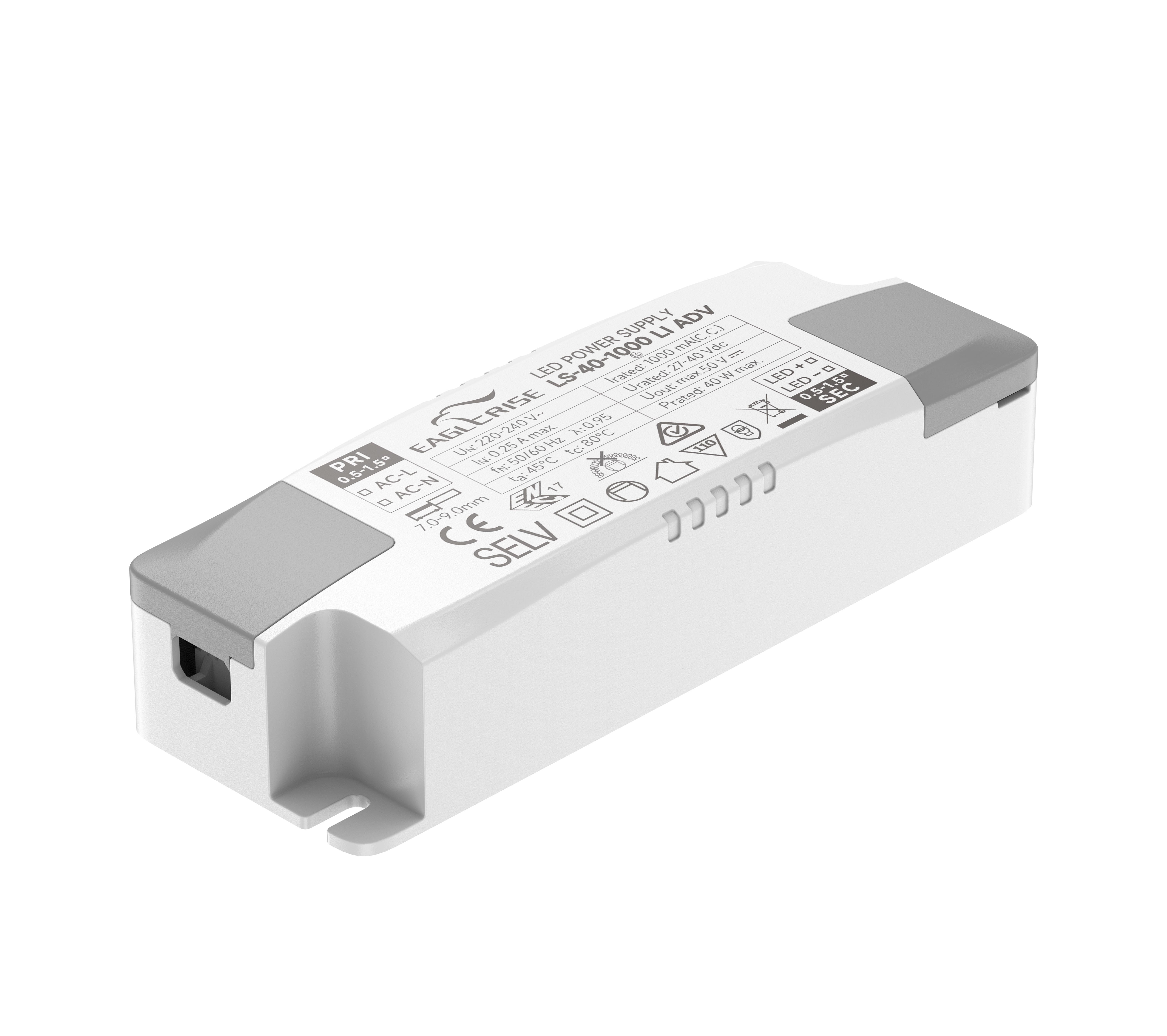

Product Image

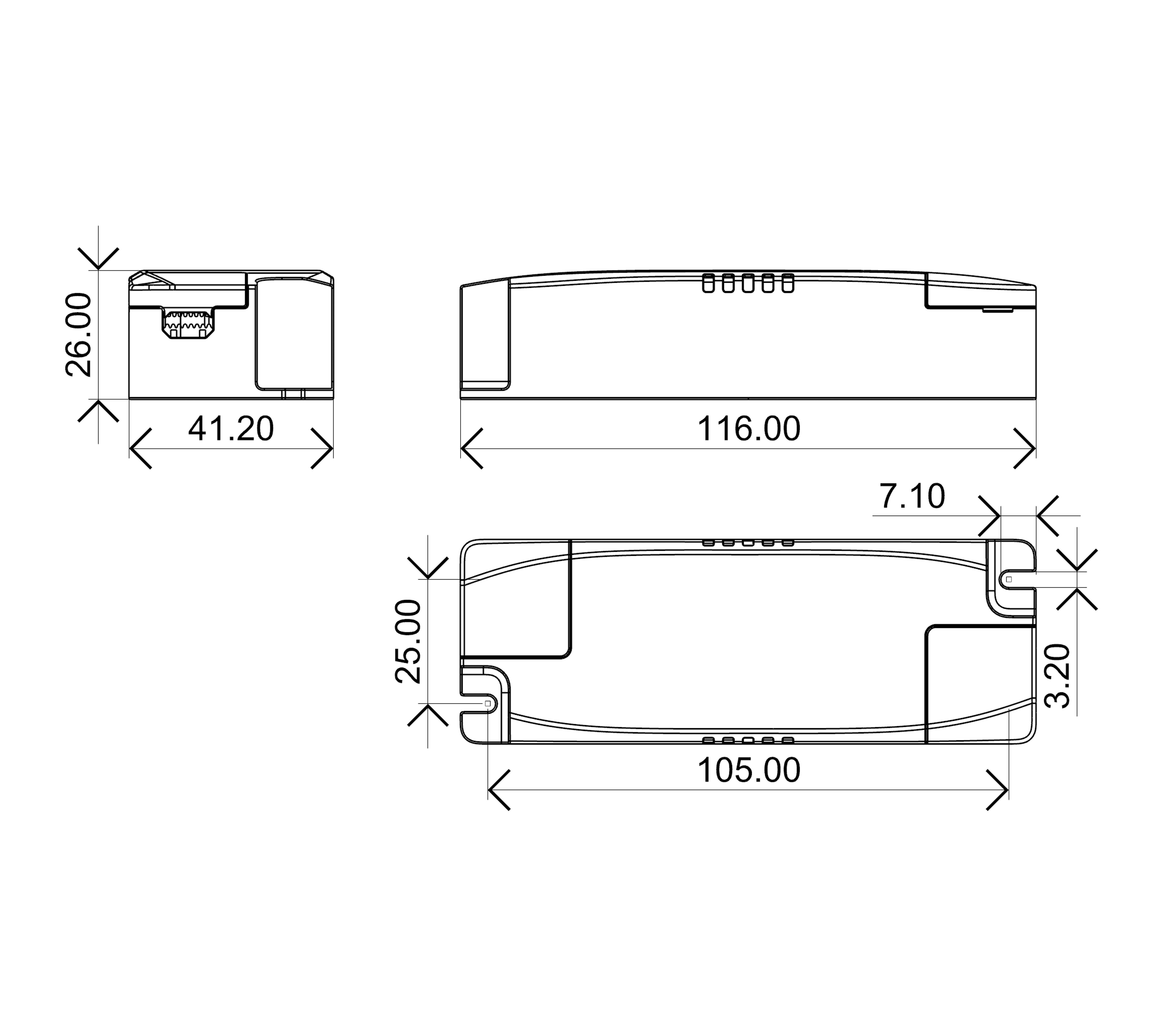

2D Line Drawing
Product Image
2D Line Drawing
40W | 600-1050

LS-40-XXX LI ADV

Product Description:

· Class II，SELV，Independent

· Input Voltage：220-240VAC

· Protections：SCP/OLP/OVP

· Power Factor：0.95

· Efficiency：91-93%

· 5 years warranty  IP40

Click to Expand
Inquire Now
Models
Datasheet
Certificate
ModelsPowerInput VoltageOutput CurrentOutput VoltageEfficiencyPower FactorSize
LS-40-600 LI ADV40W220-240VAC600mA30-40V93%0.95116*41.2*26mm
LS-40-650 LI ADV40W220-240VAC650mA30-40V93%0.95116*41.2*26mm
LS-40-700 LI ADV40W220-240VAC700mA30-40V93%0.95116*41.2*26mm
LS-40-750 LI ADV40W220-240VAC750mA30-40V93%0.95116*41.2*26mm
LS-40-800 LI ADV40W220-240VAC800mA30-40V93%0.95116*41.2*26mm
LS-40-850 LI ADV40W220-240VAC850mA30-40V93%0.95116*41.2*26mm
LS-40-900 LI ADV40W220-240VAC900mA30-40V93%0.95116*41.2*26mm
LS-40-950 LI ADV40W220-240VAC950mA30-40V93%0.95116*41.2*26mm
LS-40-1000 LI ADV40W220-240VAC1000mA30-40V93%0.95116*41.2*26mm
LS-40-1050 LI ADV40W220-240VAC1050mA30-38.5V93%0.95116*41.2*26mm


LS-40-XXX LI ADV spec REV B
